Shock Absorber and Spring Assembly: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

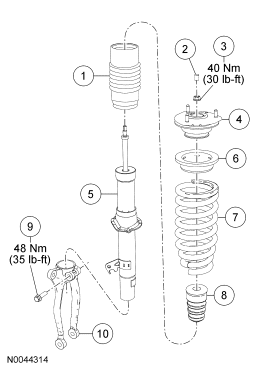

| Item | Part Number | Description |
|---|---|---|
| 1 | 3C239 | Dust boot |
| 2 | 18A179 | Shock absorber rod protective cap |
| 3 | 18A161 | Shock absorber rod nut |
| 4 | 18183 | Shock absorber upper mount |
| 5 | 18184 | Shock absorber and lower mount assembly |
| 6 | 5793 | Spring upper seat |
| 7 | 5310 | Spring |
| 8 | 18198 | Jounce bumper |
| 9 | W302119 | Shock absorber-to-damper fork bolt |
| 10 | 3463 LH/ 3462 RH | Damper fork |
