Axle Assembly: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

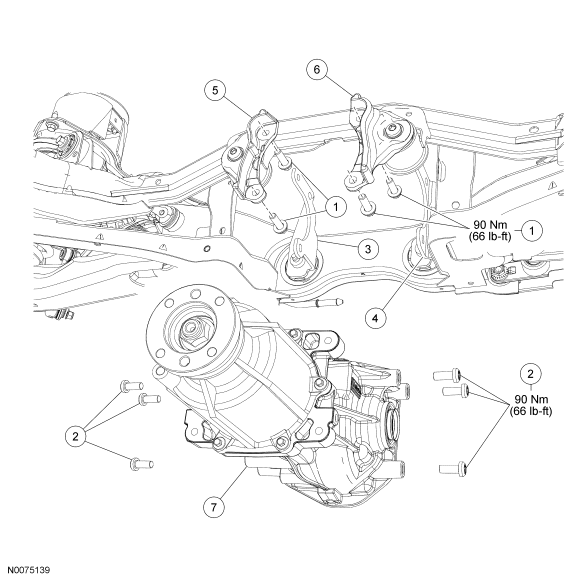

| Item | Part Number | Description |
|---|---|---|
| 1 | W506540-S | Differential housing-to-front insulator bracket bolts (4 required) |
| 2 | W500043-S | Side insulator bracket-to-rear axle differential bolts (6 required) |
| 3 | 4k630 | Right rear insulator bracket |
| 4 | 4K630 | Left rear insulator bracket |
| 5 | 4K360 | Right front insulator bracket |
| 6 | 4K630 | Left rear insulator bracket |
| 7 | 5L84 | Rear axle assembly |
