3.5L (2 Of 3)
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

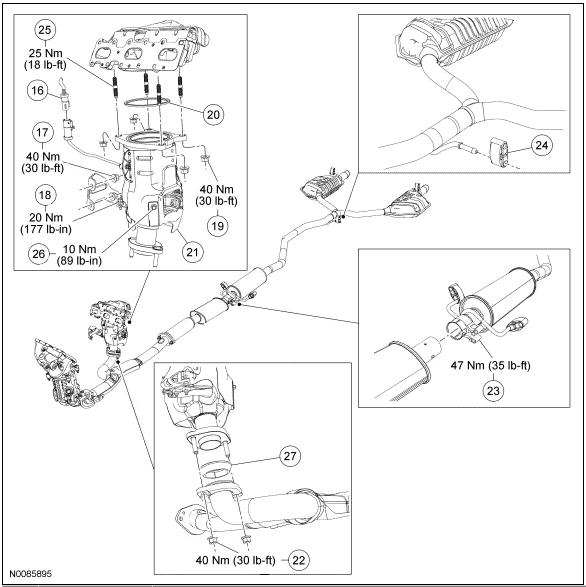

| Item | Part Number | Description |
|---|---|---|
| 16 | 14A464 | RH catalyst monitor sensor electrical connector |
| 17 | W710512/ W520414 | Catalytic converter support bracket-to-engine block nut (2 required)/(Front Wheel Drive [FWD] bolt) |
| 18 | W500222 | Bracket-to-RH catalytic converter bolt (2 required) |
| 19 | W520414 | RH catalytic converter-to-exhaust manifold nut (4 required) |
| 20 | 5F263 | Gasket |
| 21 | 5E211 | RH catalytic converter |
| 22 | W520414 | Exhaust Y-pipe-to-RH catalytic converter nut (2 required) |
| 23 | 5221 | Torca® clamp |
| 24 | 5F262 | Muffler and tailpipe isolator (5 required) |
| 25 | W712458 | RH catalytic converter-to-exhaust manifold stud (4 required) |
| 26 | W500211 | RH catalytic converter heat shield bolt (3 required) |
| 27 | - | Gasket |
