3.5L (1 Of 3)
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

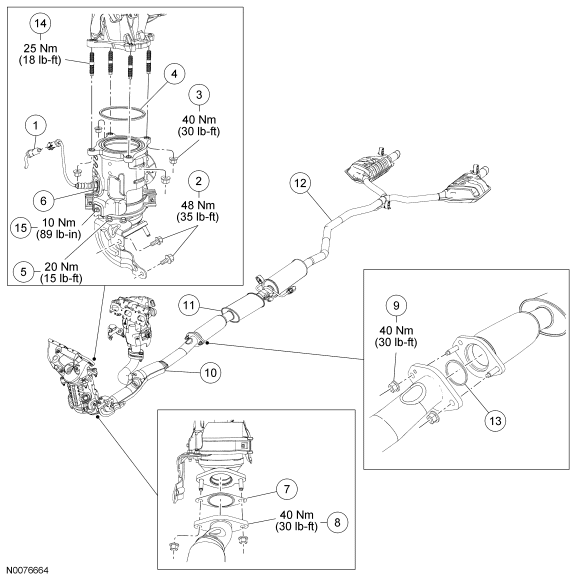

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Catalyst monitor sensor electrical connector |
| 2 | - | Catalytic converter support bracket-to-transmission bolts (2 required) |
| 3 | W520414 | LH catalytic converter-to-exhaust manifold nut (4 required) |
| 4 | 5F263 | Gasket |
| 5 | W500222 | Bracket-to-LH catalytic converter bolt (2 required) |
| 6 | 5E213 | LH catalytic converter |
| 7 | 9451 | Gasket |
| 8 | W520414 | Exhaust Y-pipe-to-LH catalytic converter nut (2 required) |
| 9 | W520414 | Exhaust Y-pipe-to-resonator nut (2 required) |
| 10 | 5G274 | Exhaust Y-pipe |
| 11 | 5H292 | Resonator |
| 12 | 5G213 | Muffler and tailpipe |
| 13 | 9451 | Gasket |
| 14 | W712458 | LH catalytic converter-to-exhaust manifold stud (4 required) |
| 15 | W500211 | LH catalytic converter heat shield bolt (3 required) |
