3.0L (2 Of 2)
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

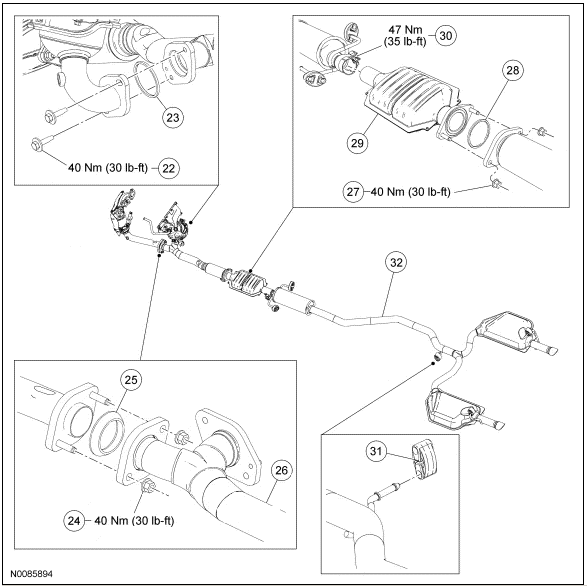

| Item | Part Number | Description |
|---|---|---|
| 22 | W713002 | RH catalytic converter manifold-to-exhaust flexible pipe bolt (2 required) |
| 23 | 9451 | Gasket |
| 24 | W520414 | LH catalytic converter-to-exhaust flexible pipe nut (2 required) |
| 25 | 5E241 | Gasket |
| 26 | 5G274 | Exhaust flexible pipe |
| 27 | W520414 | Exhaust flexible pipe-to-catalytic converter nut (2 required) |
| 28 | 9451 | Gasket |
| 29 | 5E212 | Catalytic converter |
| 30 | 5221 | Torca® clamp |
| 31 | 5F262 | Muffler and tailpipe isolator (5 required) |
| 32 | 5G213 | Muffler and tailpipe |
