3.0L (1 Of 2)

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

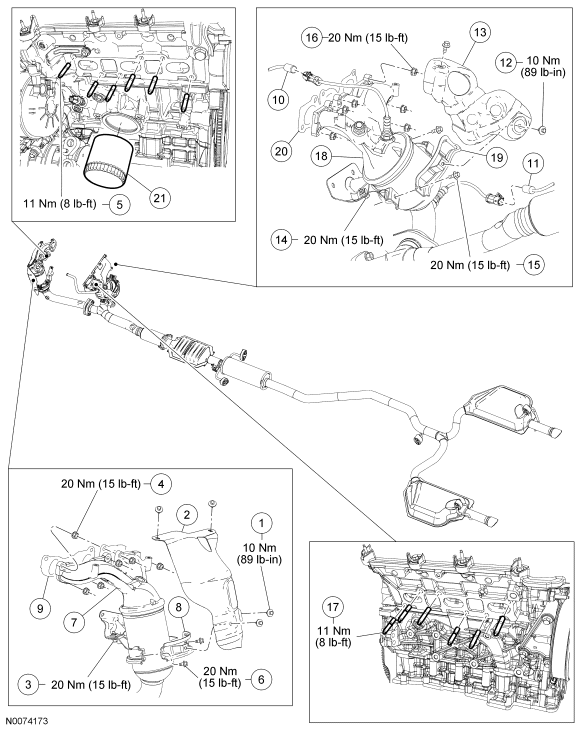

Fig 1: Exploded View Of Exhaust System With Torque Specifications - 3.0L (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503921	LH catalytic converter manifold shield bolt (4 required)
2	5K282	LH catalytic converter manifold shield
3	-	LH catalytic converter manifold bracket bolt (2 required)
4	W701706	LH catalytic converter manifold nut (6 required)
5	W701732	LH catalytic converter manifold stud (6 required)
6	W500021	LH catalytic converter manifold shield bracket bolt (2 required)
7	5G232	LH catalytic converter manifold
8	5K292	LH catalytic converter manifold shield bracket
9	9448	LH catalytic converter manifold gasket
10	14A464	Heated Oxygen Sensor (HO2S) electrical connector
11	14A464	Catalyst monitor sensor electrical connector
12	W503921	RH catalytic converter manifold shield bolt (2 required)
13	5K282	RH catalytic converter manifold shield
14	-	RH catalytic converter manifold bracket bolt (2 required)
15	W500021	RH catalytic converter manifold shield bracket bolt (2 required)
16	W701706	RH catalytic converter manifold nut (6 required)
17	W701732	RH catalytic converter manifold stud (6 required)
18	5G236	RH catalytic converter manifold
19	5K291	RH catalytic converter manifold shield bracket
20	9448	RH catalytic converter manifold gasket
21	-	Oil filter
