Catalytic Converter - 3.0L RH, All Wheel Drive (AWD): Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

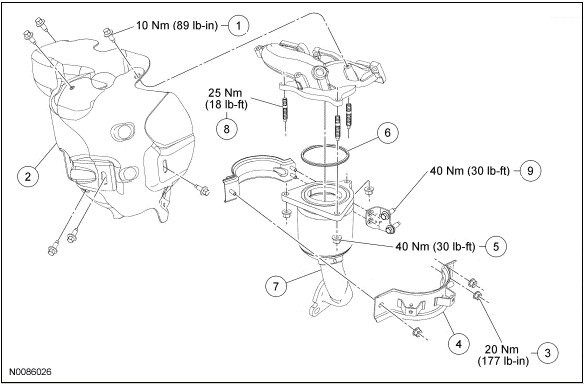

Fig 1: Exploded View Of Catalytic Converter With Torque Specifications - 3.0L RH, All Wheel Drive (AWD) (1 Of 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | W503921 | Heat shield bolt (6 required) |
| 2 | 5K282 | Heat shield |
| 3 | W701706 | Heat shield bracket nut (3 required) |
| 4 | 5K291 | Heat shield bracket |
| 5 | W520414 | Catalytic converter nut (3 required) |
| 6 | 5F263 | Gasket |
| 7 | 5E211 | Catalytic converter |
| 8 | W711133 | RH catalytic converter-to-exhaust manifold stud (3 required) |
| 9 | W712806 | Heat shield bracket bolt (2 required) |
Fig 2: Exploded View Of Catalytic Converter With Torque Specifications - 3.0L RH, All Wheel Drive (AWD) (2 Of 2)
| Item | Part Number | Description |
|---|---|---|
| 10 | W711575 | Roll restrictor bolt |
