Wheel and Tire: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Material

Item Specification
Silicone Brake Caliper Grease and Dielectric Compound
XG-3-A
ESE-M1C171-A

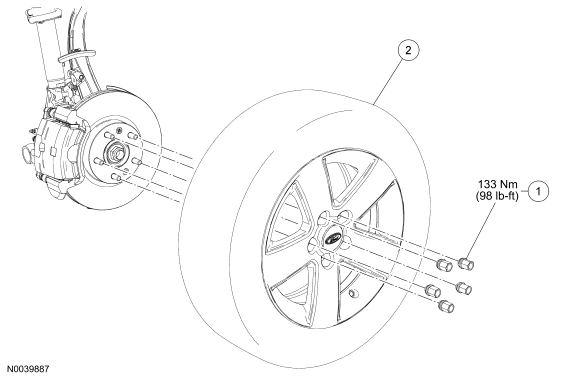

Fig 1: Exploded View Of Wheel & Tire Assembly With Torque Specification
GF0029533Courtesy of FORD MOTOR CO.
Item Part Number Description
1 1012 Wheel nut (5 required)
2 - Wheel and tire assembly
