Jacking and Lifting
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
When jacking or lifting the vehicle, block all wheels remaining on the ground. Set the parking brake if the rear wheels will remain on the ground. These actions help prevent unintended vehicle movement. Failure to follow these instructions may result in serious personal injury.
WARNING:
Never get underneath a vehicle that is supported only by a jack. The jack could unintentionally lower. Always support vehicle with floor stands. Failure to follow these instructions may result in serious personal injury.
WARNING:
Only raise the vehicle when positioned on a hard, level surface. Attempting to raise the vehicle on an uneven or soft surface may result in vehicle slipping or falling from the jack or jackstand. Failure to follow this instruction may result in serious personal injury.
WARNING:

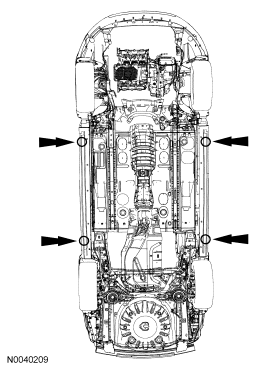

Position the hoist lift arms as shown in the illustration. Incorrect positioning could result in vehicle slipping or falling from the hoist. Failure to follow this instruction may result in serious personal injury.
CAUTION:
The jack provided with the vehicle is intended to be used in an emergency for changing a deflated tire. To avoid damage to the vehicle, never use the jack to hoist the vehicle for any other purpose.
CAUTION:
Under no circumstances should the vehicle ever be lifted by the front or rear control arms, halfshafts or front wheel constant velocity (CV) joints. Severe damage to the vehicle may result.
CAUTION:
Do not attempt to use jack pressure on either the front bumper or the rear bumper of any vehicle. Damage to bumper covers will occur.
CAUTION:
To prevent possible damage to the underbody, do not drive the vehicle onto the drive-on lift without first checking for possible interference, or damage may occur.
CAUTION:
When raising a vehicle on a twin-post hoist, use care when positioning the vehicle so that the hoisting forks do not interfere with the suspension components, mounting brackets or stabilizer mounting brackets, if equipped. In addition, use care in hoist positioning to avoid possible damage to the axle carrier or rear cover.
CAUTION:
Damage to the suspension, exhaust or steering linkage components may occur if care is not exercised when positioning the hoist adapters prior to lifting the vehicle.
