Brake Pressure Control Valve: Notes

Material

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada)	WSS-M6C62-A or WSS-M6C65-A1

NOTE: Non-ABS shown, ABS similar.

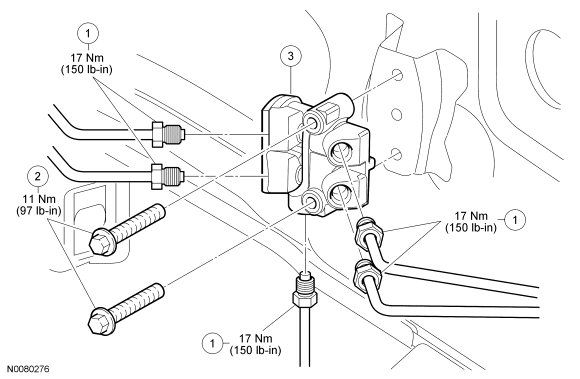

Fig 1: Exploded View Of Brake Pressure Control Valve With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Brake tube fittings (part of 9J279)
2	W711239	Brake pressure control valve bolts (2 required)
3	43900	Brake pressure control valve
