Brake Master Cylinder - 2.3L and 3.0L: Notes

Material

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada)	WSS-M6C62-A or WSS-M6C65-A1

NOTE: Automatic transmission shown, manual transmission similar.

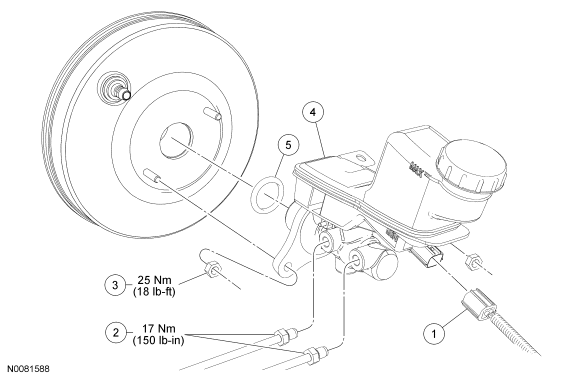

Fig 1: Exploded View Of Brake Master Cylinder With Torque Specifications - 2.3L & 3.0L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Brake fluid level warning switch electrical connector (part of 14290)
2	-	Brake tube fittings (part of 2C360)
3	2152	Brake master cylinder nut kit
4	2140	Brake master cylinder assembly
5	-	Brake master cylinder-to-brake booster seal (part of 2152)
