Brake Fluid Reservoir - 2.3L and 3.0L: Notes

Material

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada)	WSS-M6C62-A or WSS-M6C65-A1

NOTE: Automatic transmission shown, manual transmission similar.

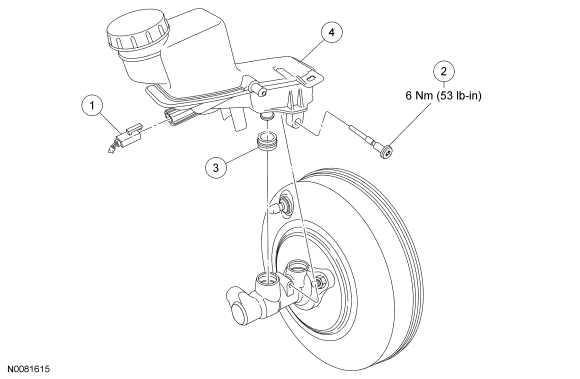

Fig 1: Exploded View Of Brake Fluid Reservoir With Torque Specification - 2.3L and 3.0L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Brake fluid level warning switch electrical connector (part of 14290)
2	2B176	Brake fluid reservoir pin bolt
3	2L074	Brake fluid reservoir seal (2 required)
4	2C246	Brake fluid reservoir
