Instrument Cluster (IC): Notes

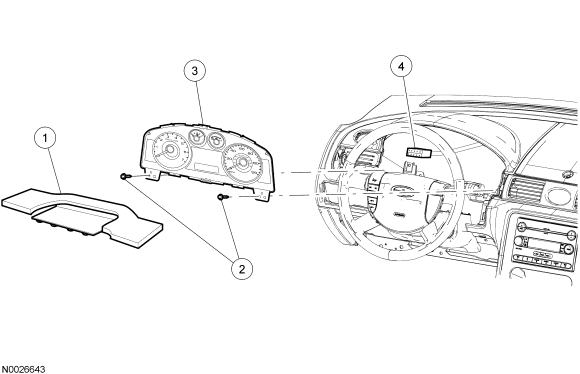

Fig 1: Exploded View Of Instrument Cluster (IC) - Fusion, Milan
GF0030398Courtesy of FORD MOTOR CO.
Item Part Number Description
1 54044D70 Instrument cluster (IC) finish panel
2 W705314 Instrument cluster (IC) screws (2 required)
3 10849 Instrument cluster (IC)
4 - Instrument cluster (IC) electrical connector (part of 14401)

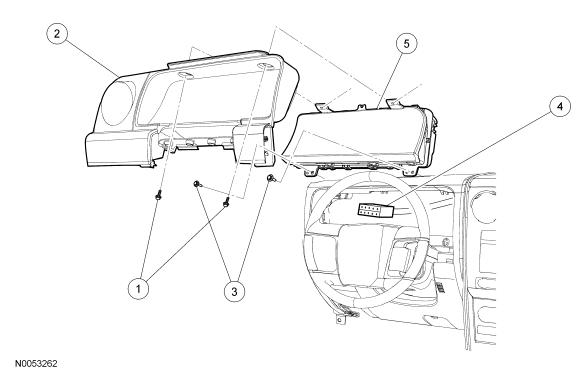

Fig 2: Exploded View Of Instrument Cluster (IC) - MKZ
GF0030399Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W70534 Instrument cluster (IC) finish panel screws (2 required)
2 54044D70 Instrument cluster (IC) finish panel
3 W705314 Instrument cluster (IC) screws (2 required)
4 - Instrument cluster (IC) electrical connector (part of 14401)
5 10849 Instrument cluster (IC)
