Turbine Shaft Speed (TSS) Sensor

Turbine Shaft Speed (TSS) Sensor

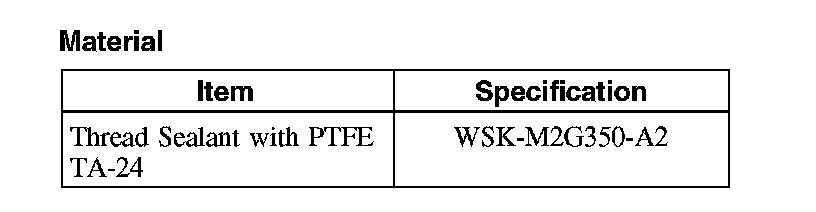

Material:

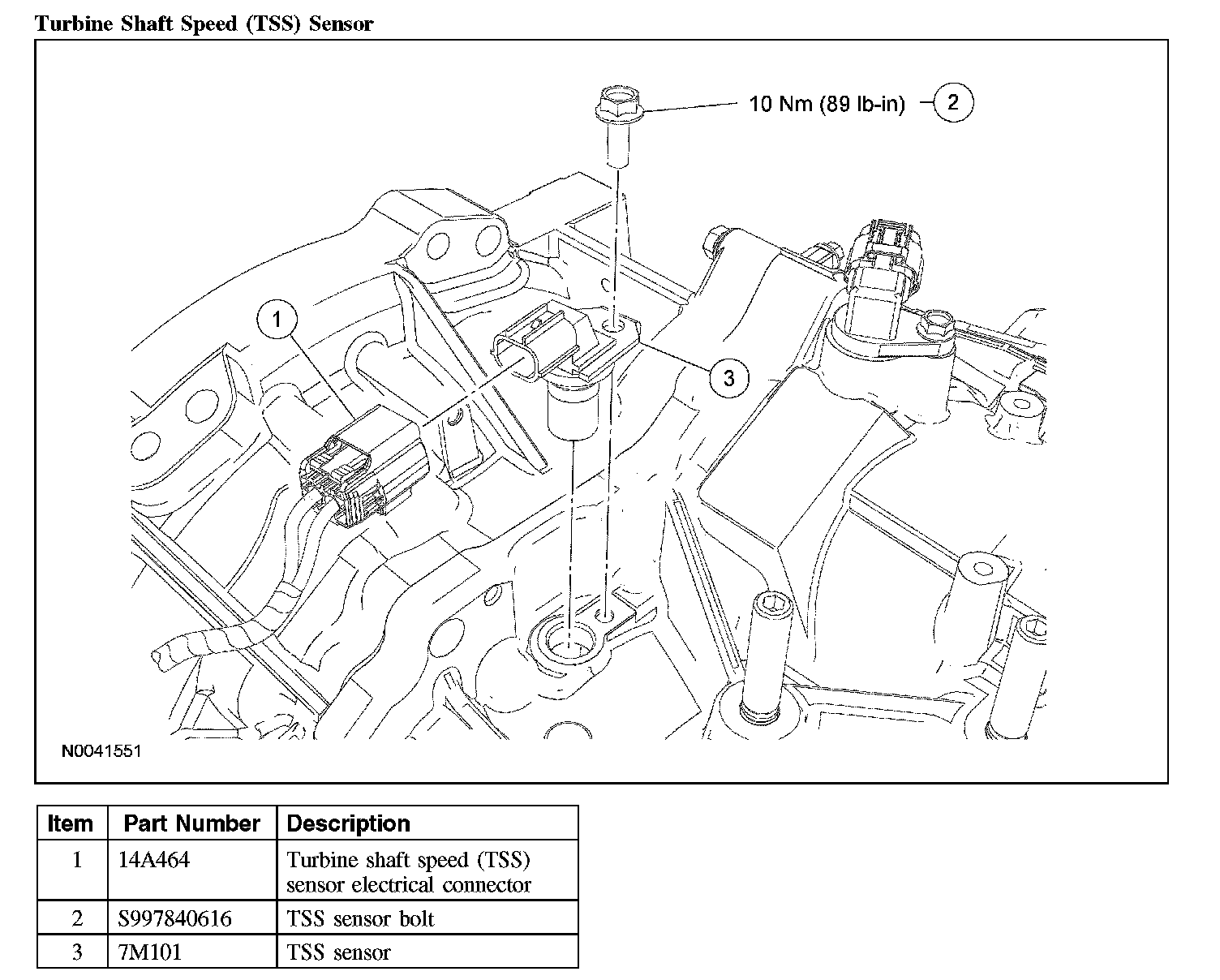

Turbine Shaft Speed (TSS) Sensor:

Removal

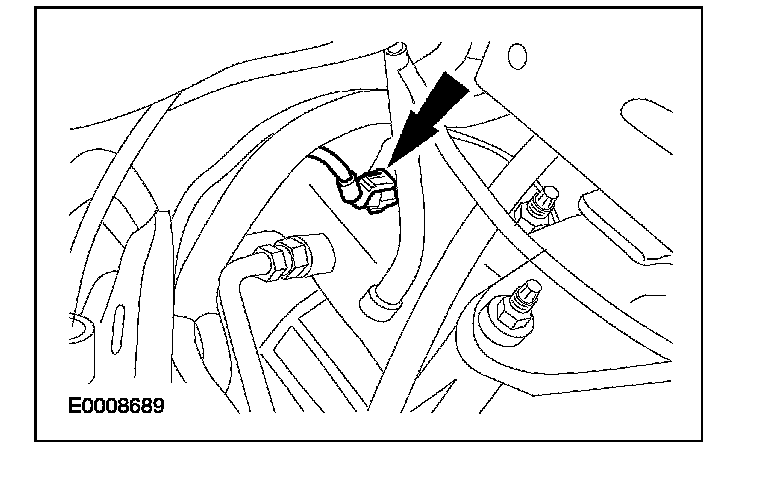

1. Disconnect the turbine shaft speed (TSS) sensor electrical connector.

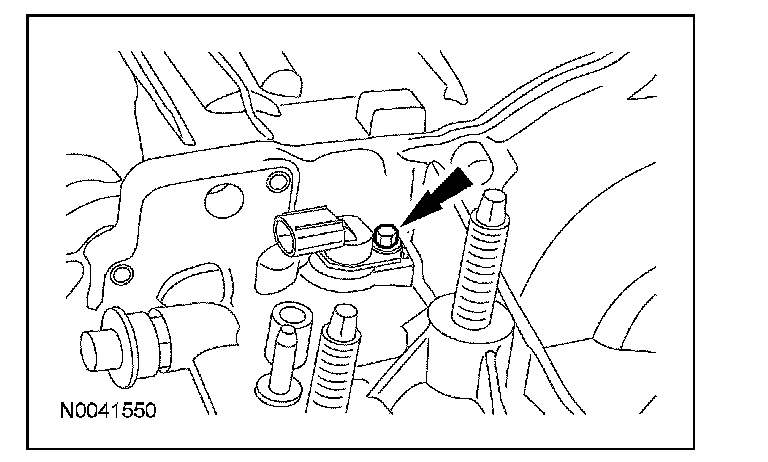

2. Remove the bolt and the TSS sensor.
^ To install, tighten to 10 Nm (89 lb-in).
^ Check the TSS sensor bore.
^ Check the O-ring seal for nicks or cuts and install a new O-ring if necessary.





Installation

1. NOTE: Apply a light coat of petroleum jelly to the O-ring seal before installation.

NOTE: Apply thread sealant to the bolt.

To install, reverse the removal procedure.
