Output Shaft Speed (OSS) Sensor

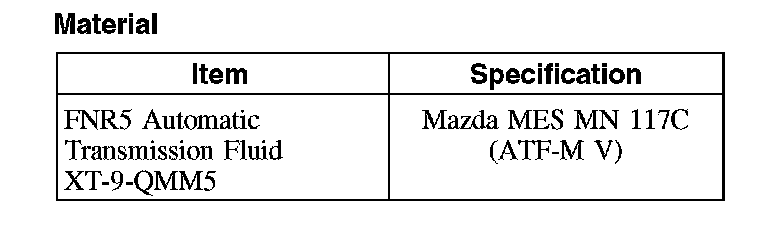

Output Shaft Speed (OSS) SensorMaterial:
Output Shaft Speed (OSS) Sensor:
Removal
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Place a drain pan beneath the output shaft speed (OSS) sensor.

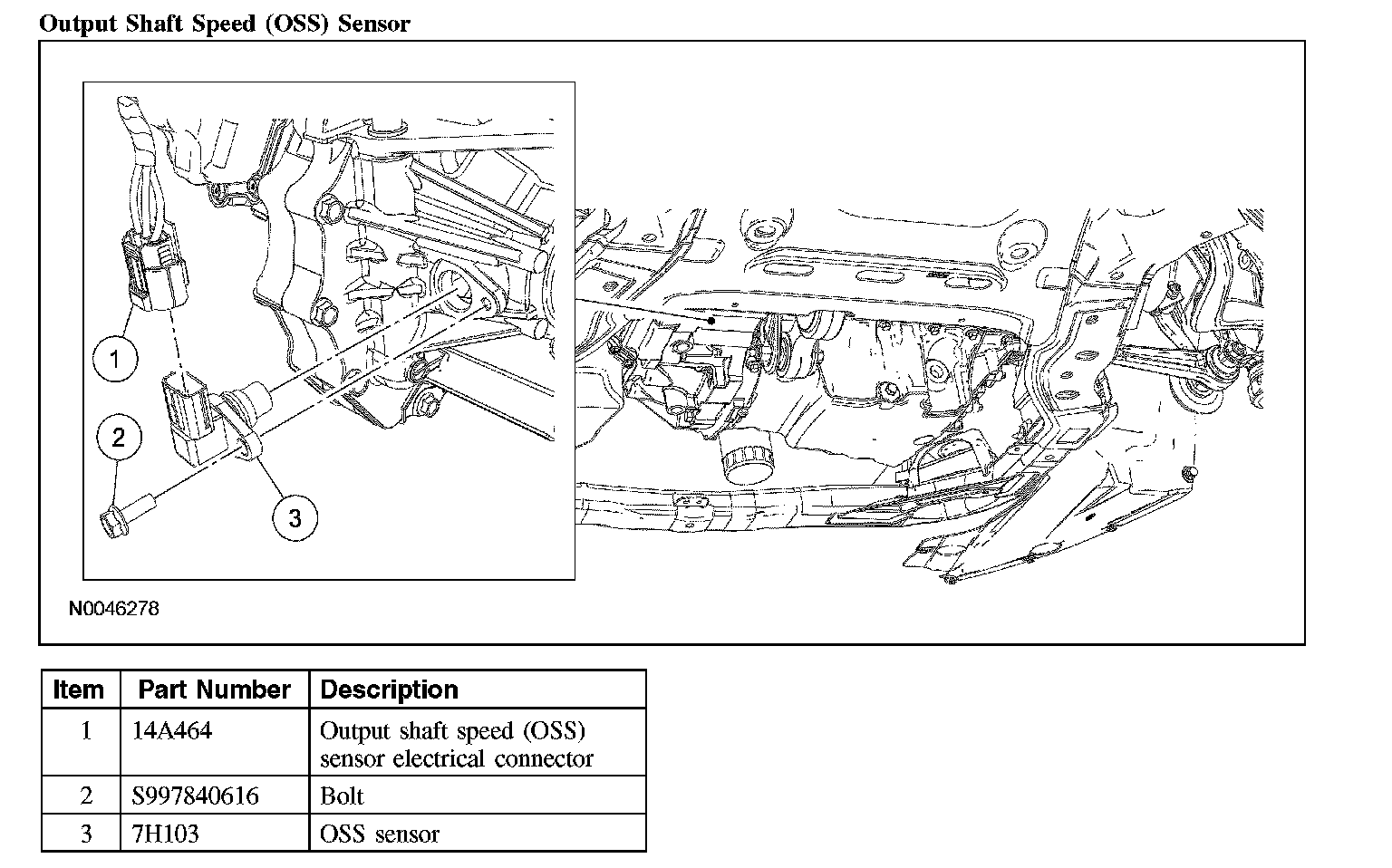

3. Remove the OSS sensor.
^ Disconnect the electrical connector.
^ Remove the bolt.
^ Inspect the OSS bore.

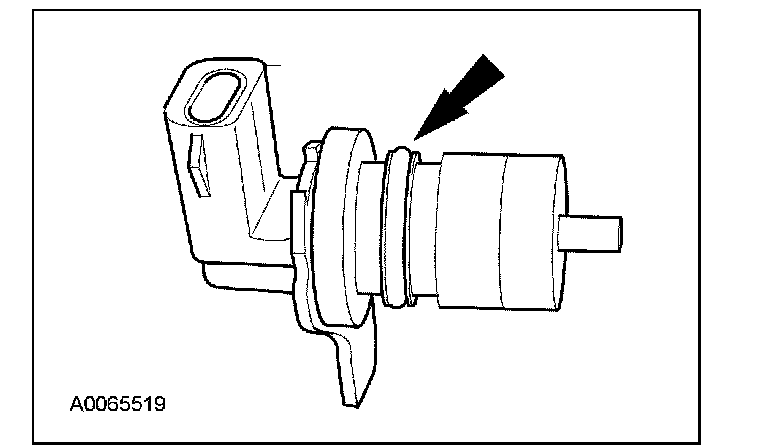

4. Inspect the O-ring seal for nicks or cuts, install a new O-ring if necessary.
Installation
1. NOTE: Apply a light coat of petroleum jelly to the O-ring before installation.

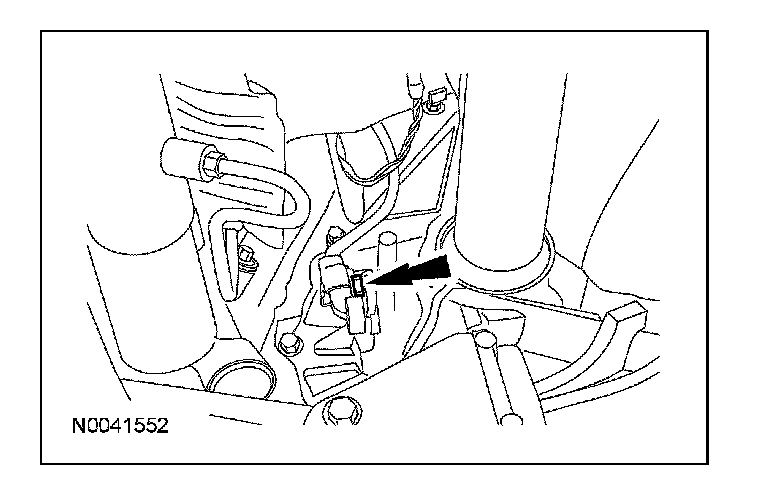

Install the OSS sensor.
^ Tighten to 10 Nm (89 lb-in).

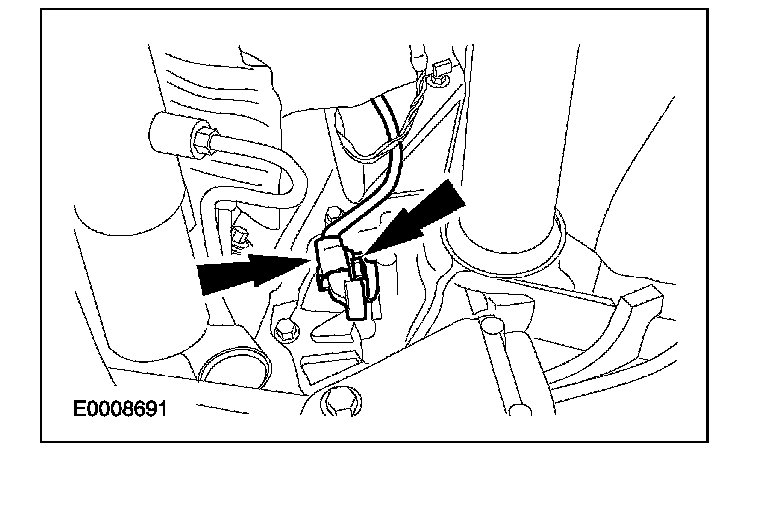

^ Connect the electrical connector.

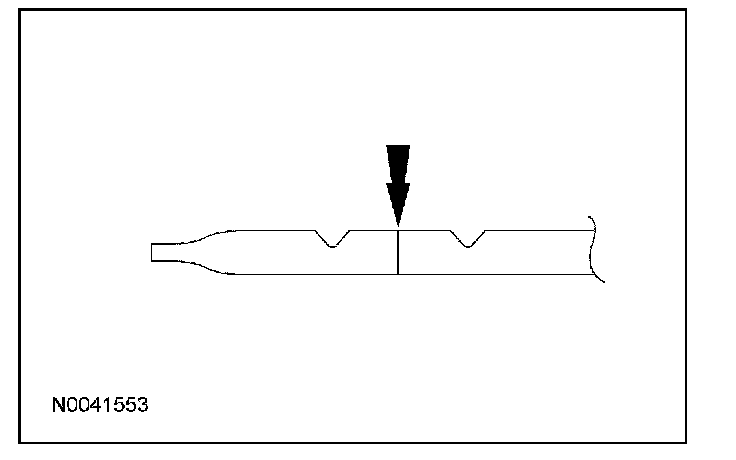

2. Check the transmission fluid level and add transmission fluid as necessary.
3. Start the engine and move the selector lever through all gear positions.
