Home >> Mercury >> 2008 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Sensors and Switches - Transmission and Drivetrain >> Sensors and Switches - A/T >> Transmission Speed Sensor >> Diagrams >> Output Shaft Speed (OSS) Sensor

Output Shaft Speed (OSS) Sensor

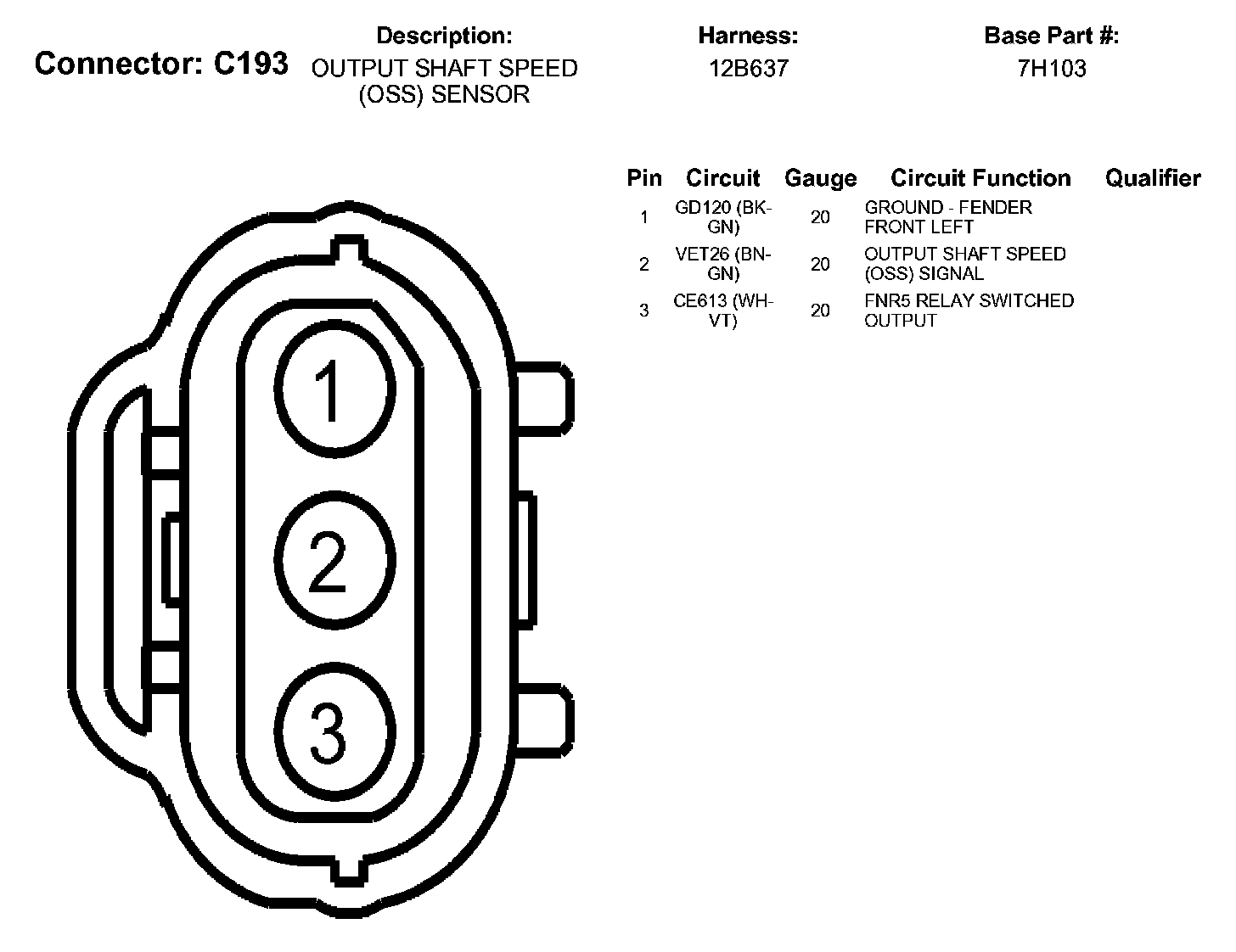

C193:

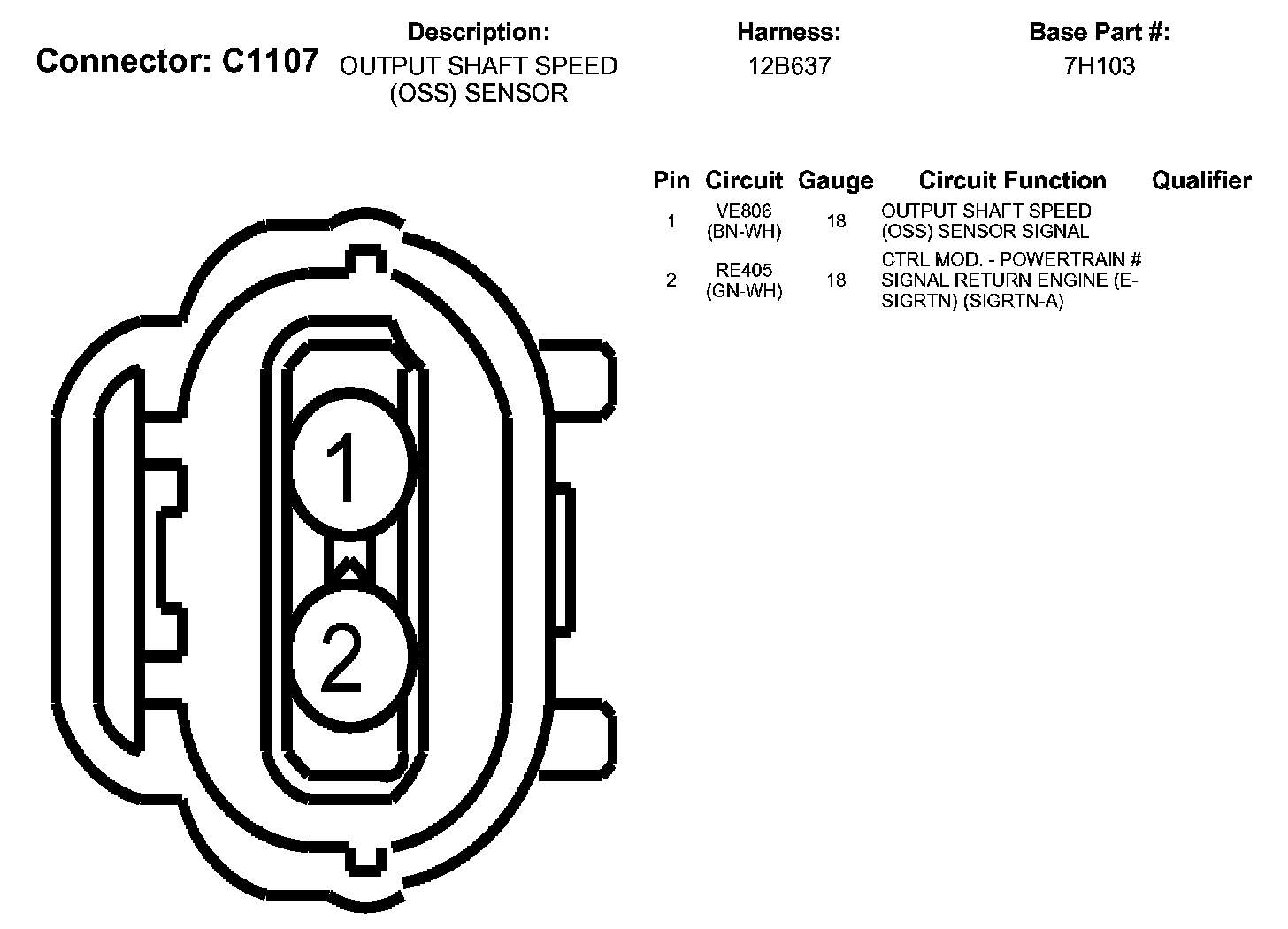

C1107:
