Home >> Mercury >> 2008 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Engine Temperature Sensor >> Diagrams

Engine Temperature Sensor: Diagrams

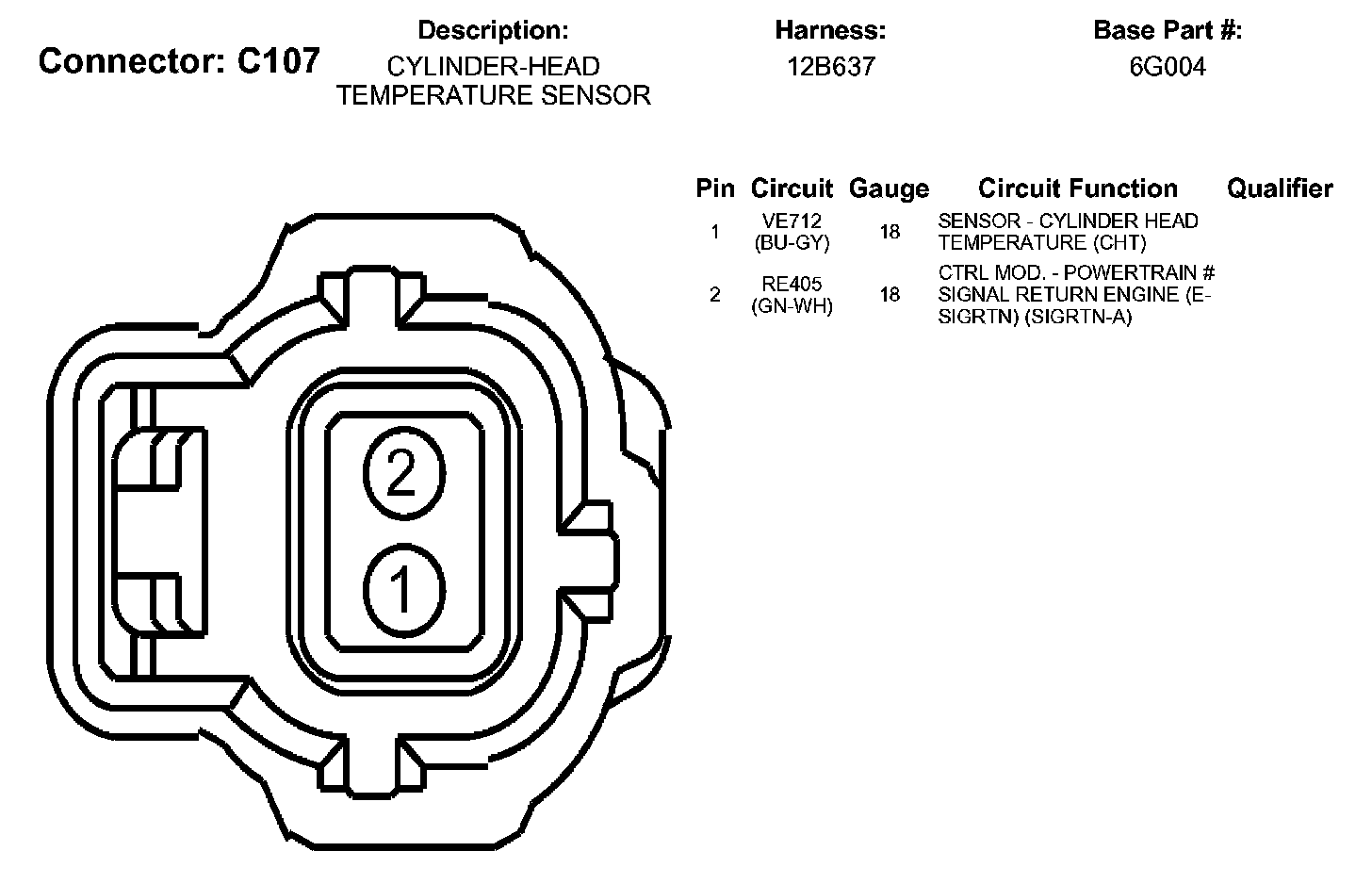

C107:

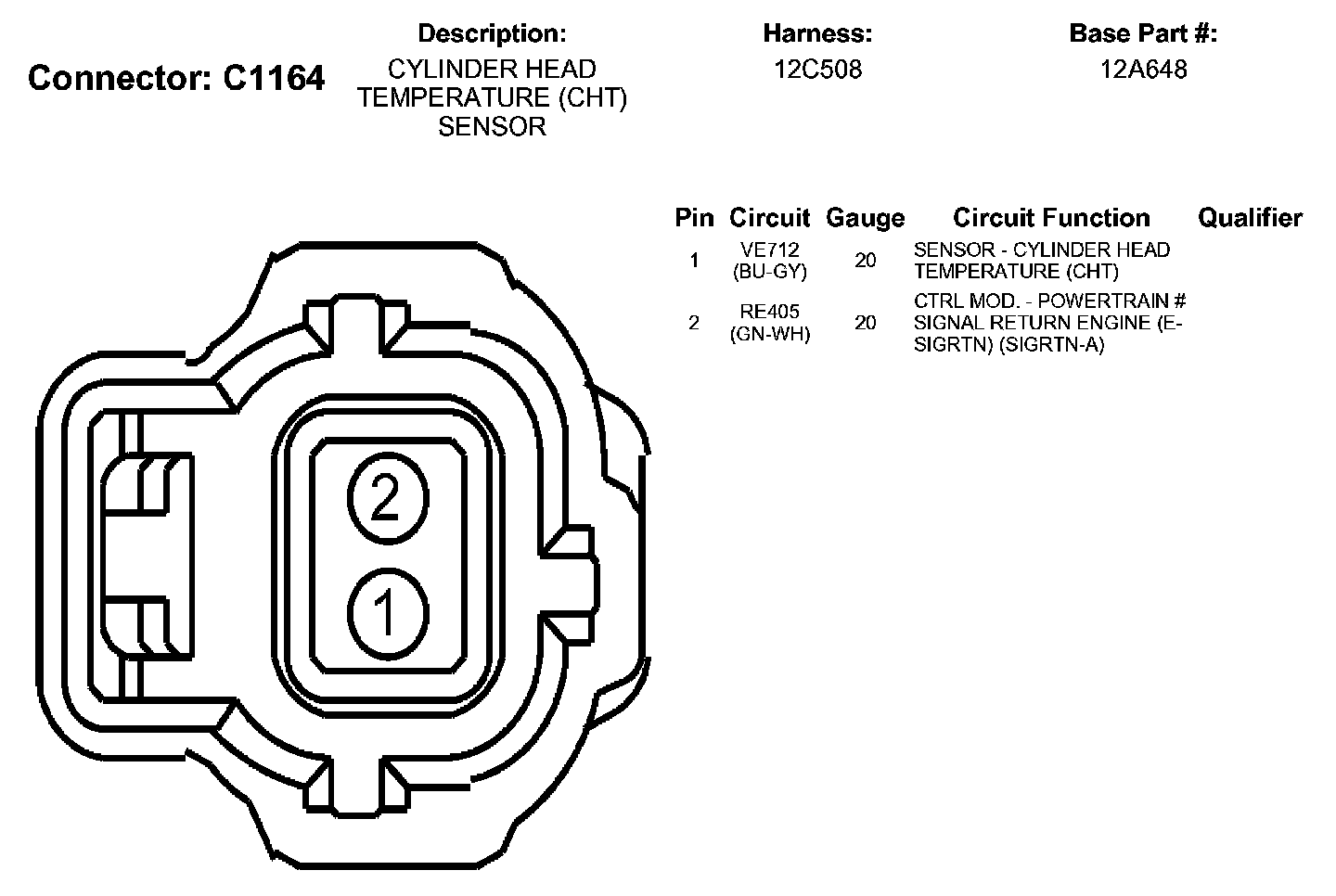

C1164:
