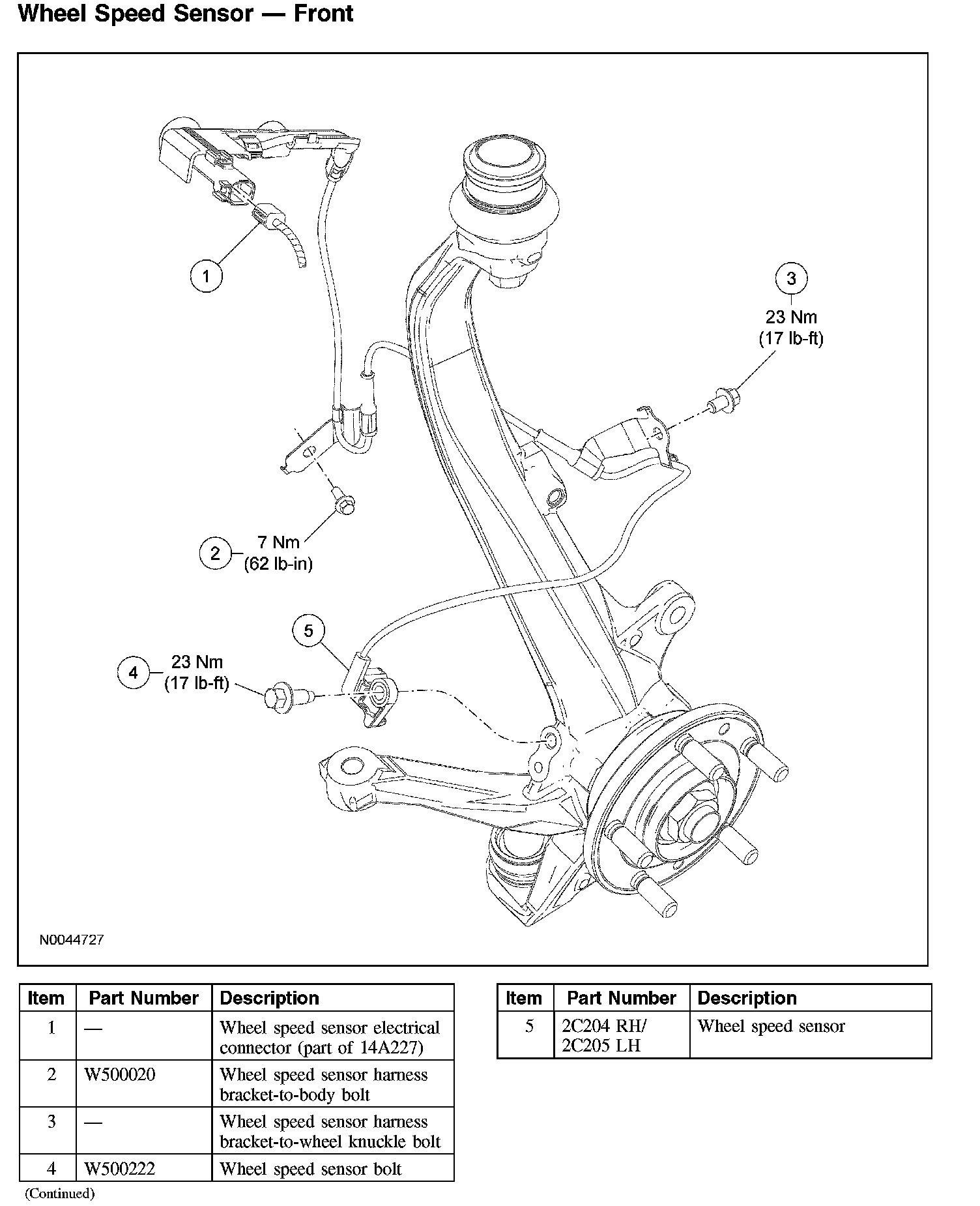

Wheel Speed Sensor - Front:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the retainers and position the fender splash shield aside.
3. Disconnect the wheel speed sensor electrical connector.
4. Remove the 2 wheel speed sensor harness bracket bolts.
^ To install:
^ Tighten the bracket-to-wheel knuckle bolt to 23 Nm (17 lb-ft).
^ Tighten the bracket-to-body bolt to 7 Nm (62 lb-inch).
5. Remove the front wheel speed sensor bolt from the knuckle and remove the wheel speed sensor.
^ To install, tighten to 23 Nm (17 lb-ft).
6. To install, reverse the removal procedure.
