Home >> Mercury >> 2008 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Powertrain Management >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Ignition System >> Crankshaft Position Sensor >> Locations

Crankshaft Position Sensor: Locations

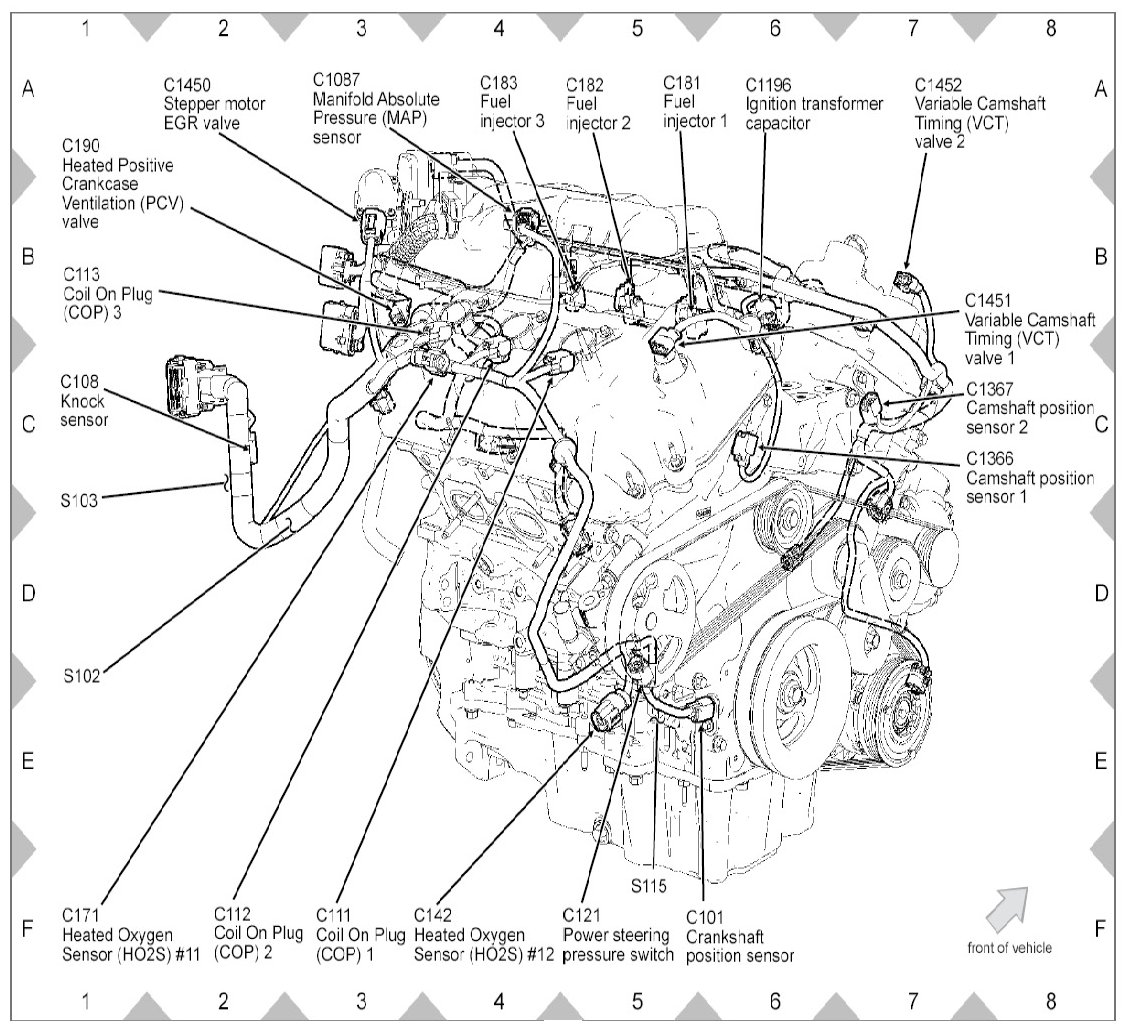

View 151-8:

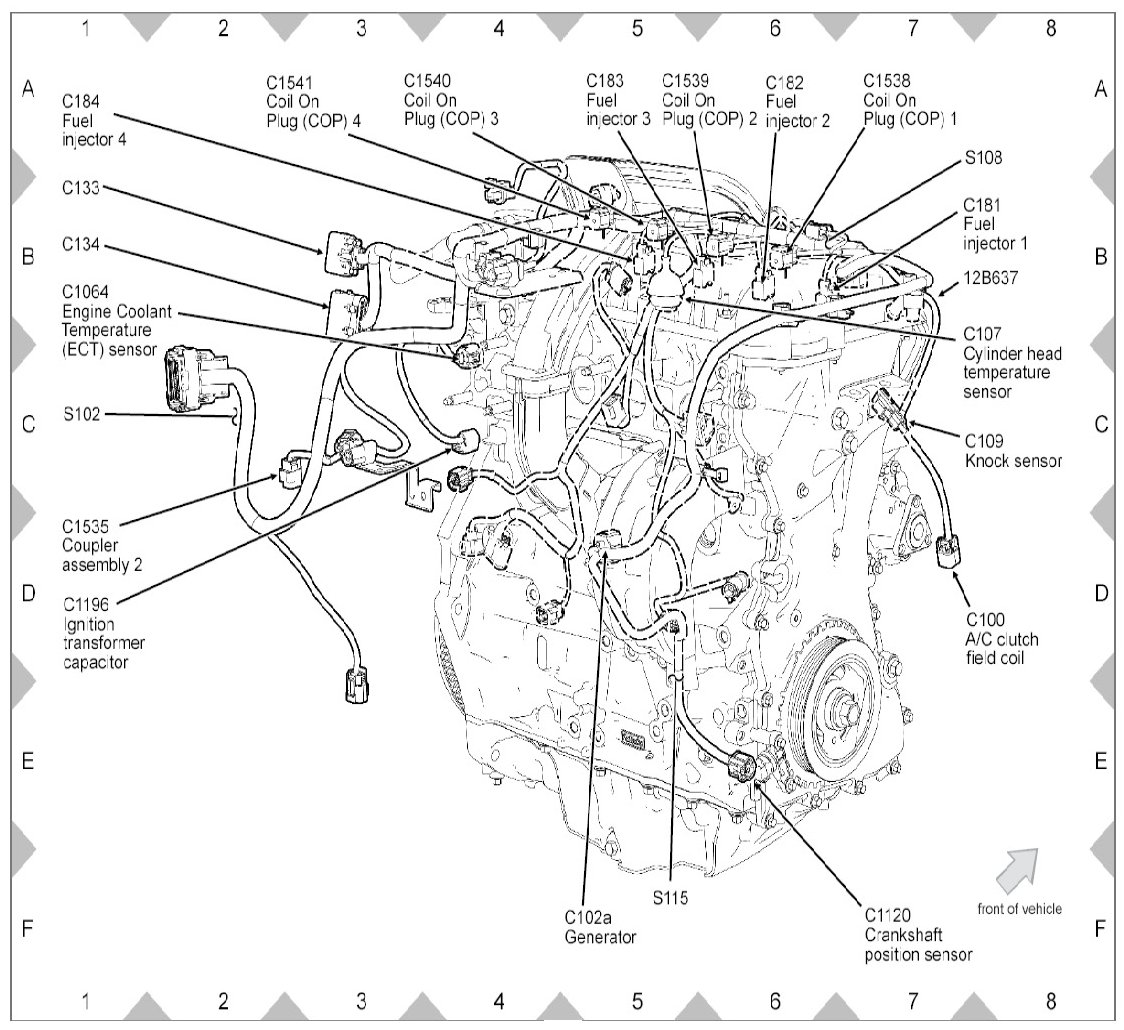

View 151-10:
