Home >> Mercury >> 2008 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Instrument Cluster and Panel Illumination

Instrument Cluster and Panel Illumination

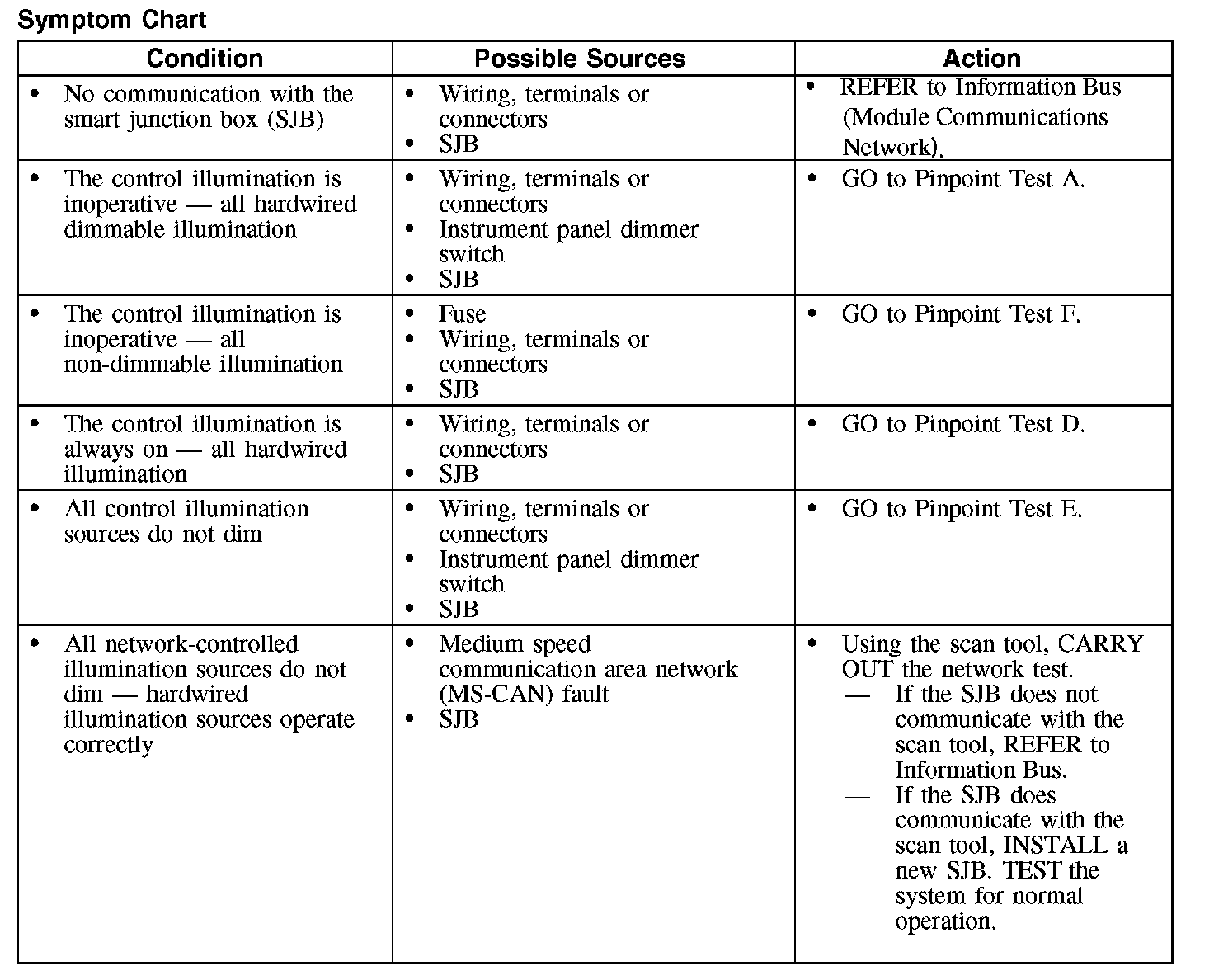

Symptom Chart (Part 1):

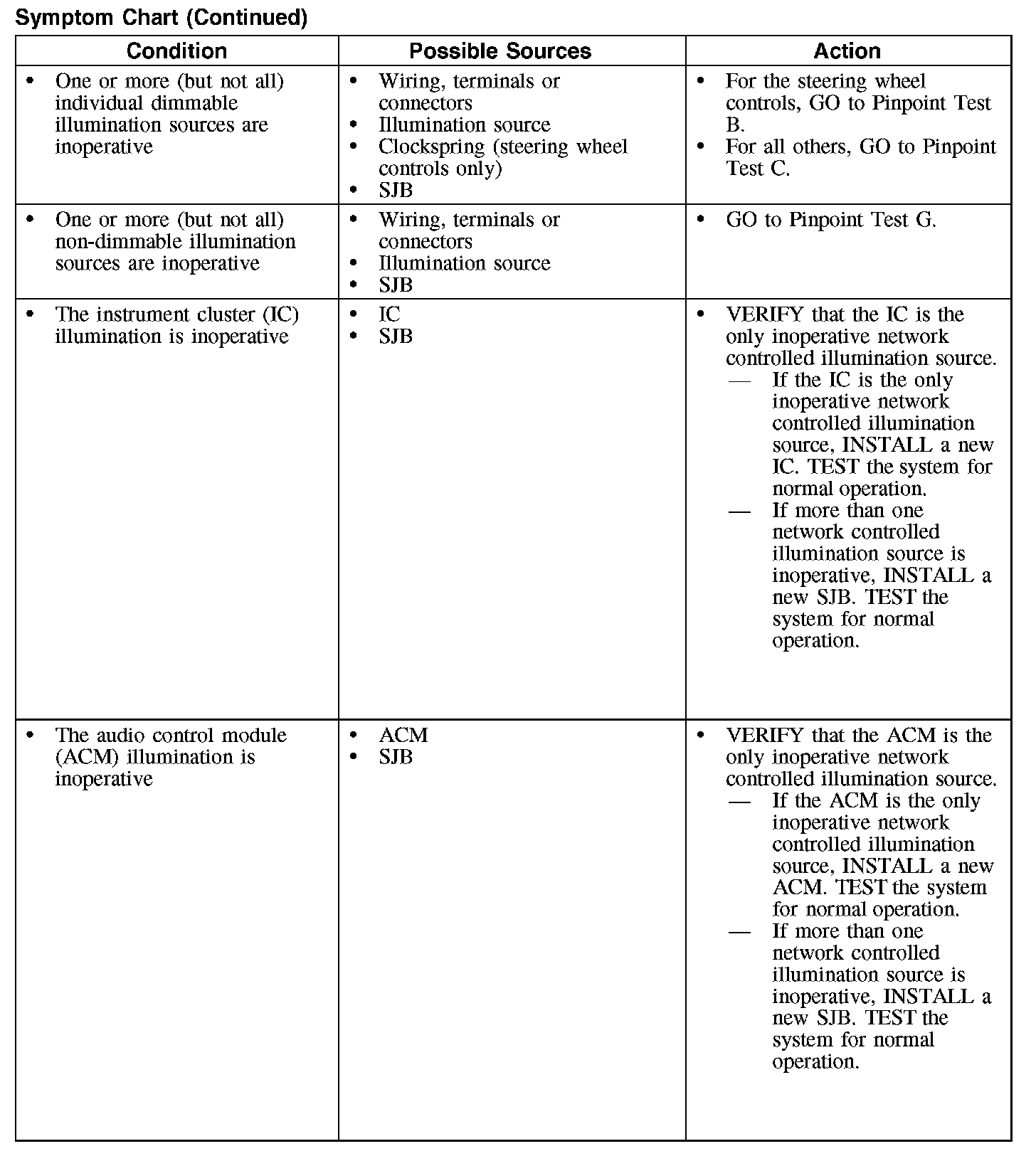

Symptom Chart (Part 2):

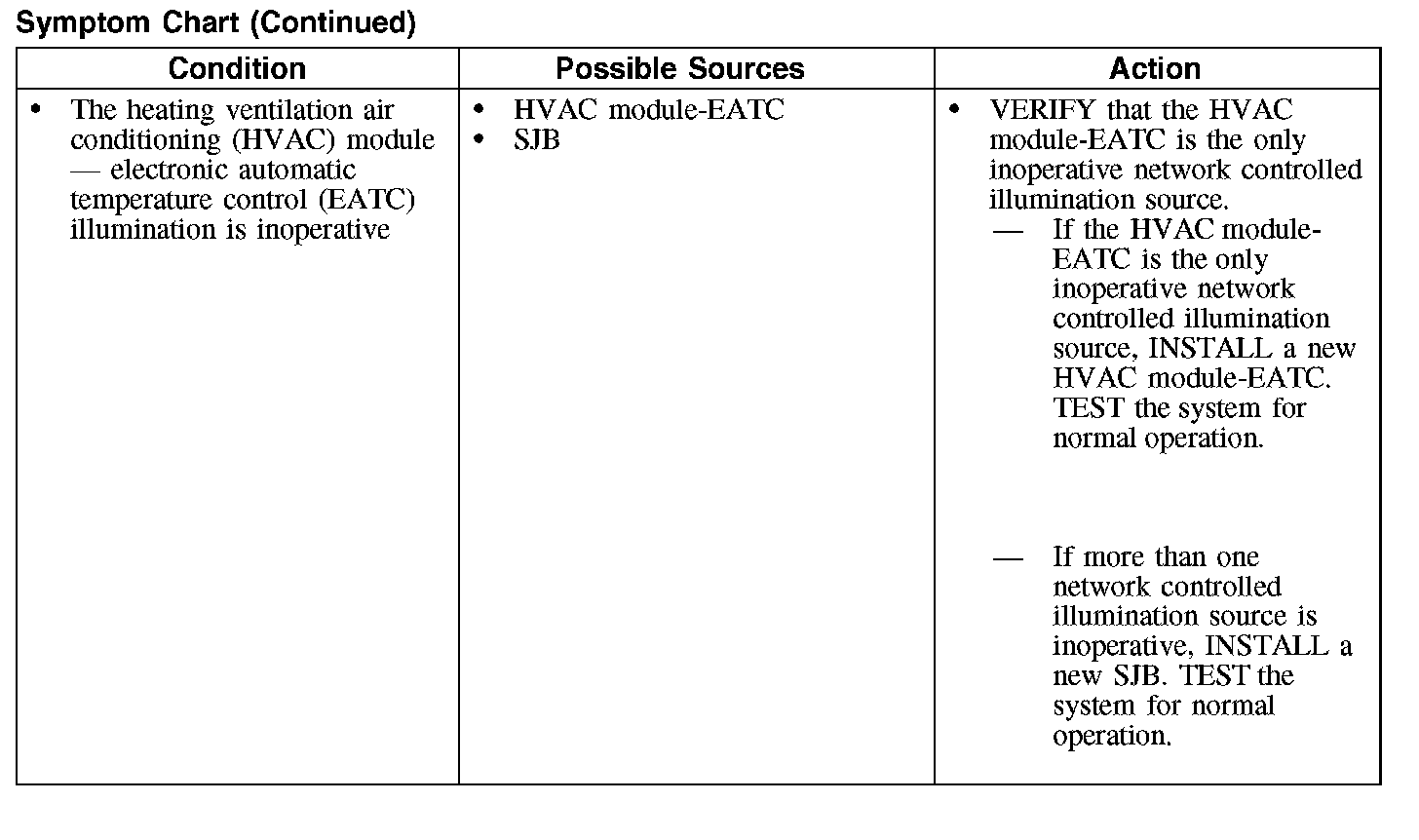

Symptom Chart (Part 3):
