Test O: The Door Ajar Warning Indicator Is Never/Always On

PINPOINT TEST O: THE DOOR AJAR WARNING INDICATOR IS NEVER/ALWAYS ON

Normal Operation
The door ajar indicator informs the driver if any of the doors, or the decklid is not completely closed. The information is sent from the smart junction box (SJB) to the instrument cluster (IC) over the communication network.

This pinpoint test is intended to diagnose the following:
- Interior lamps concern
- SJB
- Instrument cluster (IC)

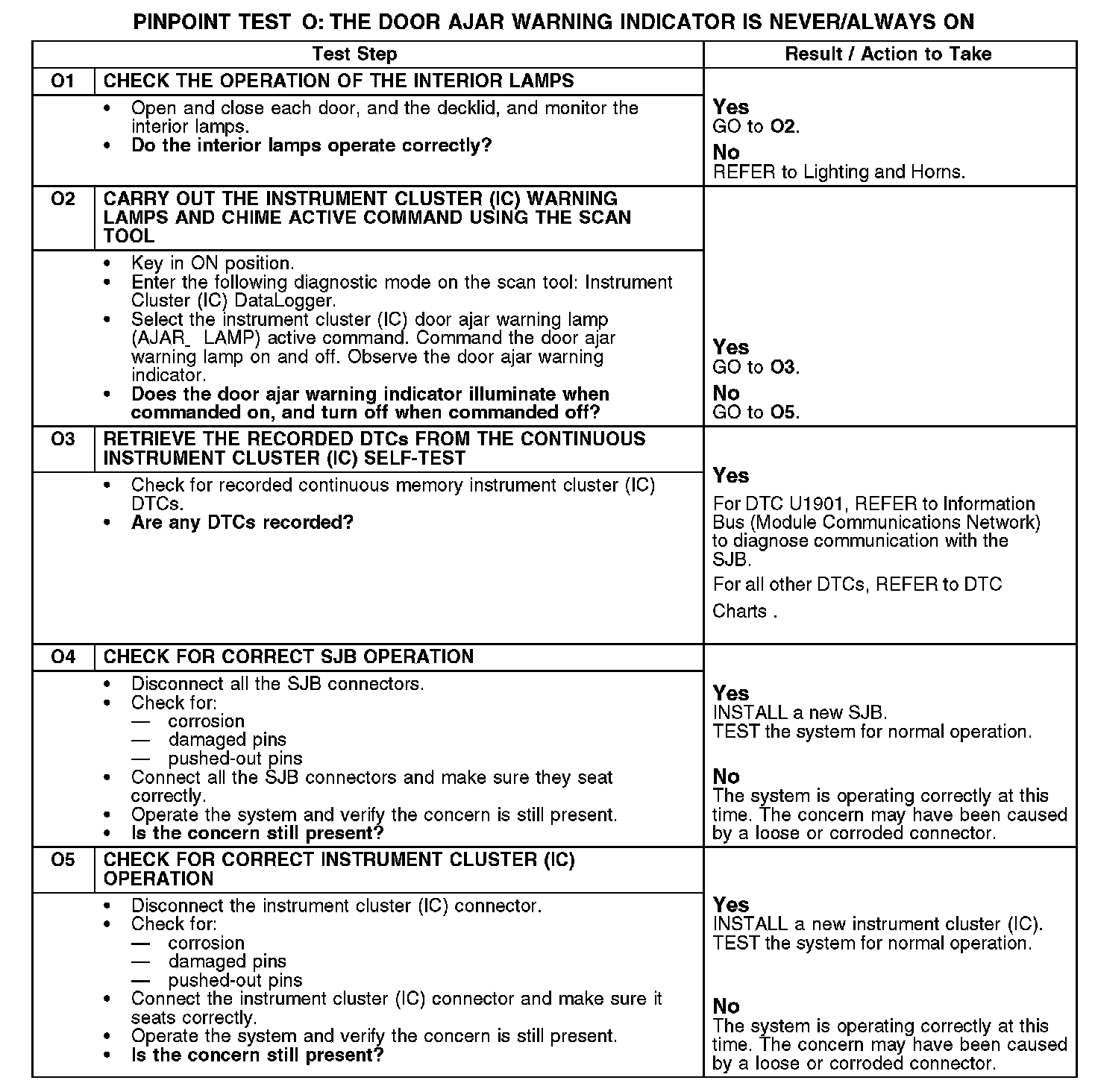

O1-O5:
