Rear Crankshaft Main Bearing Seal: Service and Repair

Crankshaft Rear Seal

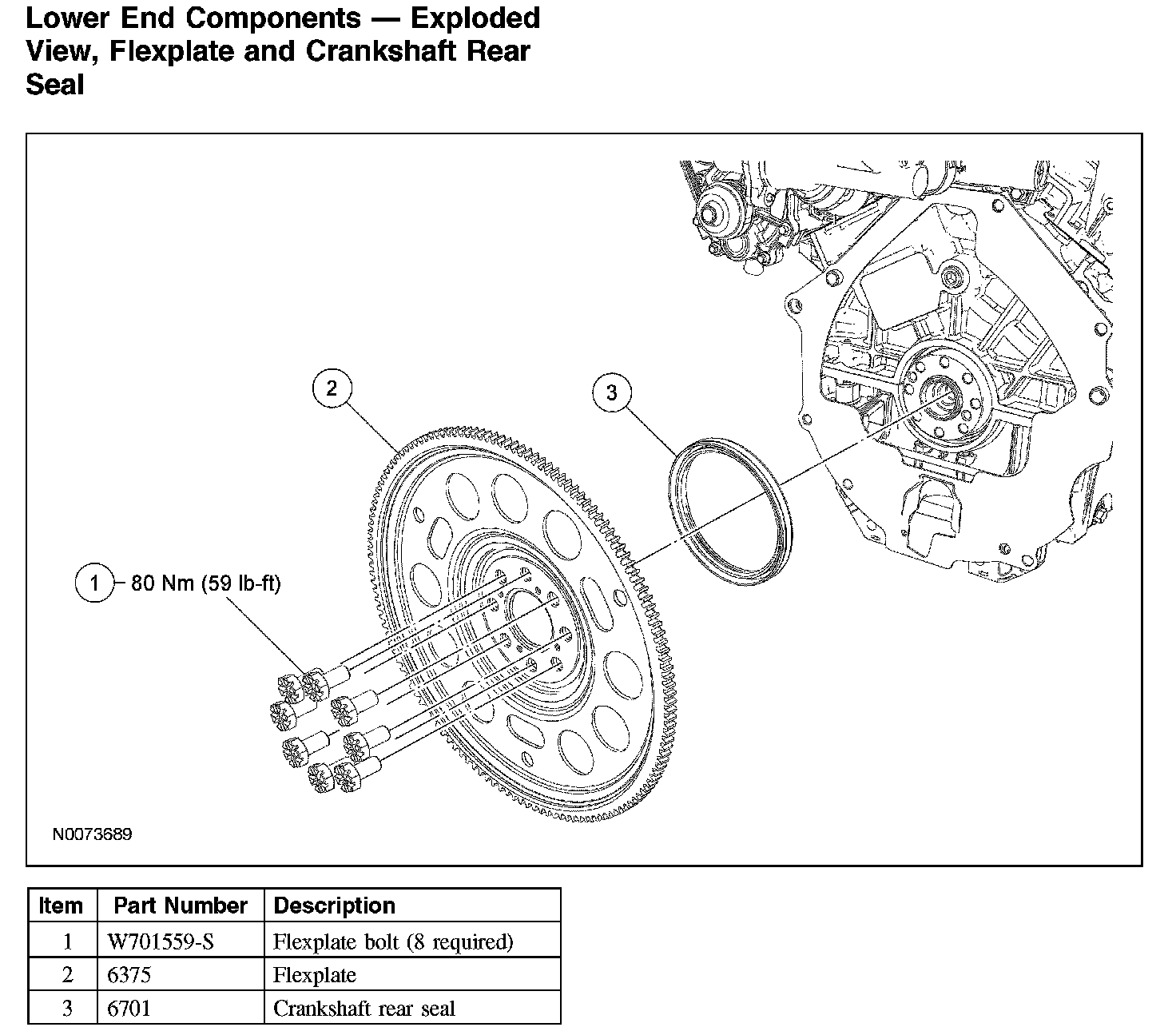

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal

Lower End Components - Exploded View, Flexplate and Crankshaft RearSeal:

Special Tool(s):

Material:

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the flexplate.
3. Using the special tools, remove and discard the crankshaft rear oil seal.





Installation

1. NOTE: Clean all sealing surfaces with metal surface cleaner.

NOTE: Apply clean engine oil to the seal lip and seal bore before installing the seal.

Using the special tools, install the crankshaft rear oil seal.





2. Install the flexplate.
