Home >> Mercury >> 2008 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 86 (Fog Lamps)

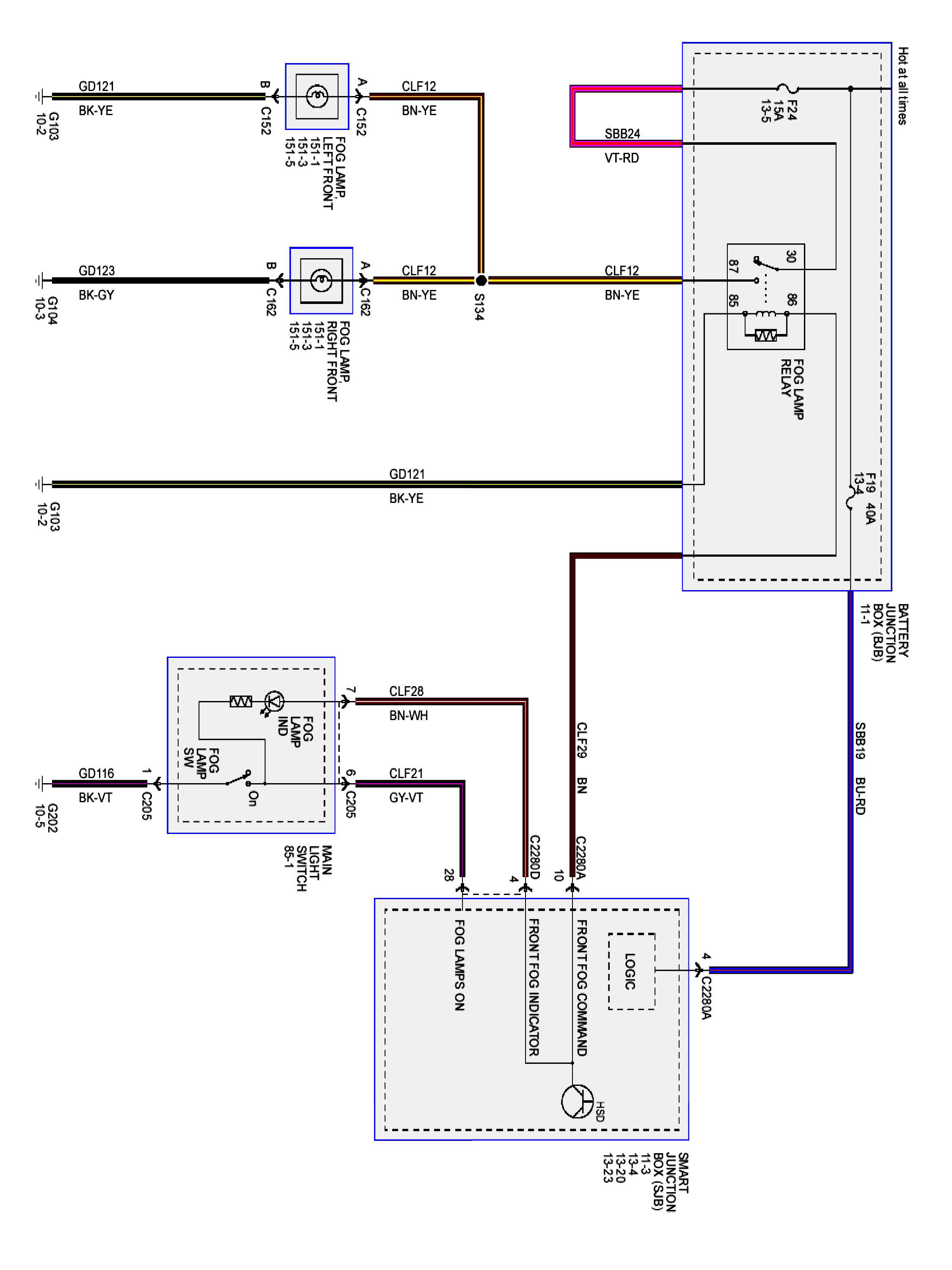

Diagram Set 86 (Fog Lamps)

86-1:
