Home >> Mercury >> 2008 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 113 (Luggage Compartment Lid Release)

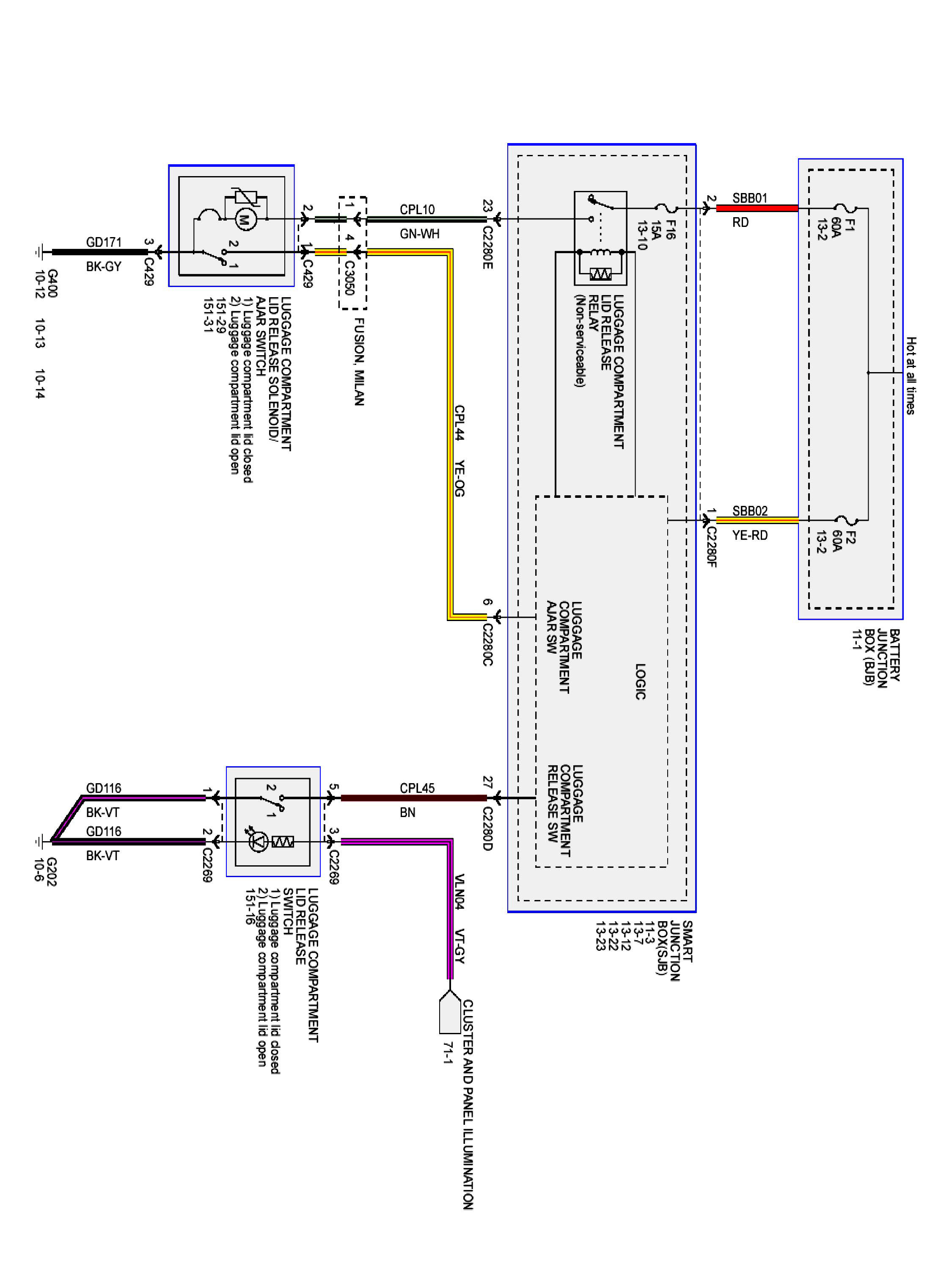

Diagram Set 113 (Luggage Compartment Lid Release)

113-1:
