Sunroof / Moonroof Switch: Service and Repair

ROOF OPENING PANEL CONTROL SWITCH







Removal and Installation

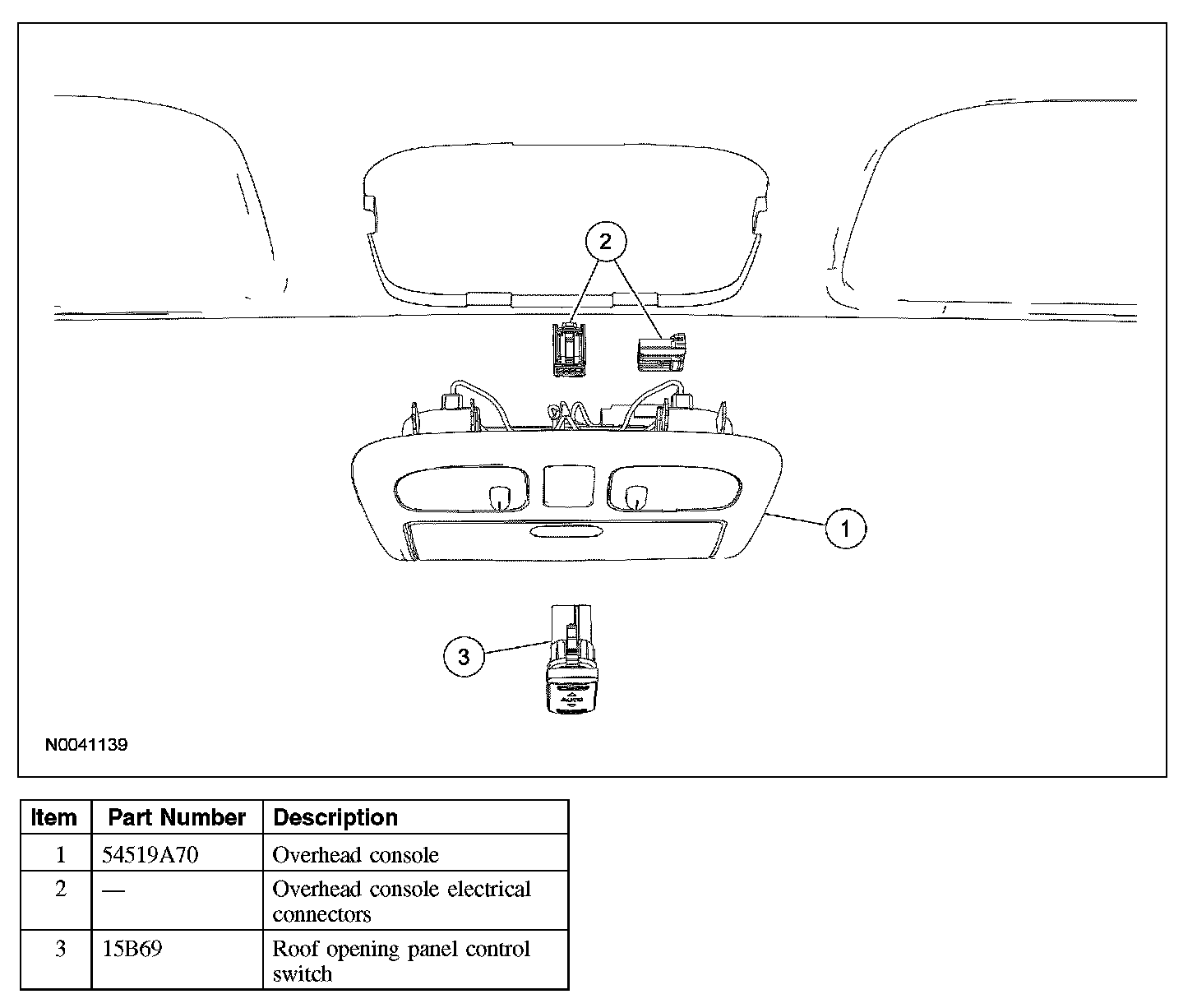

1. Open the storage compartment cover and remove the 2 screws.







2. Disconnect the overhead console electrical connectors.
3. Disengage the clips and remove the switch from the overhead console.







4. To install, reverse the removal procedure.
