Amplifier: Service and Repair

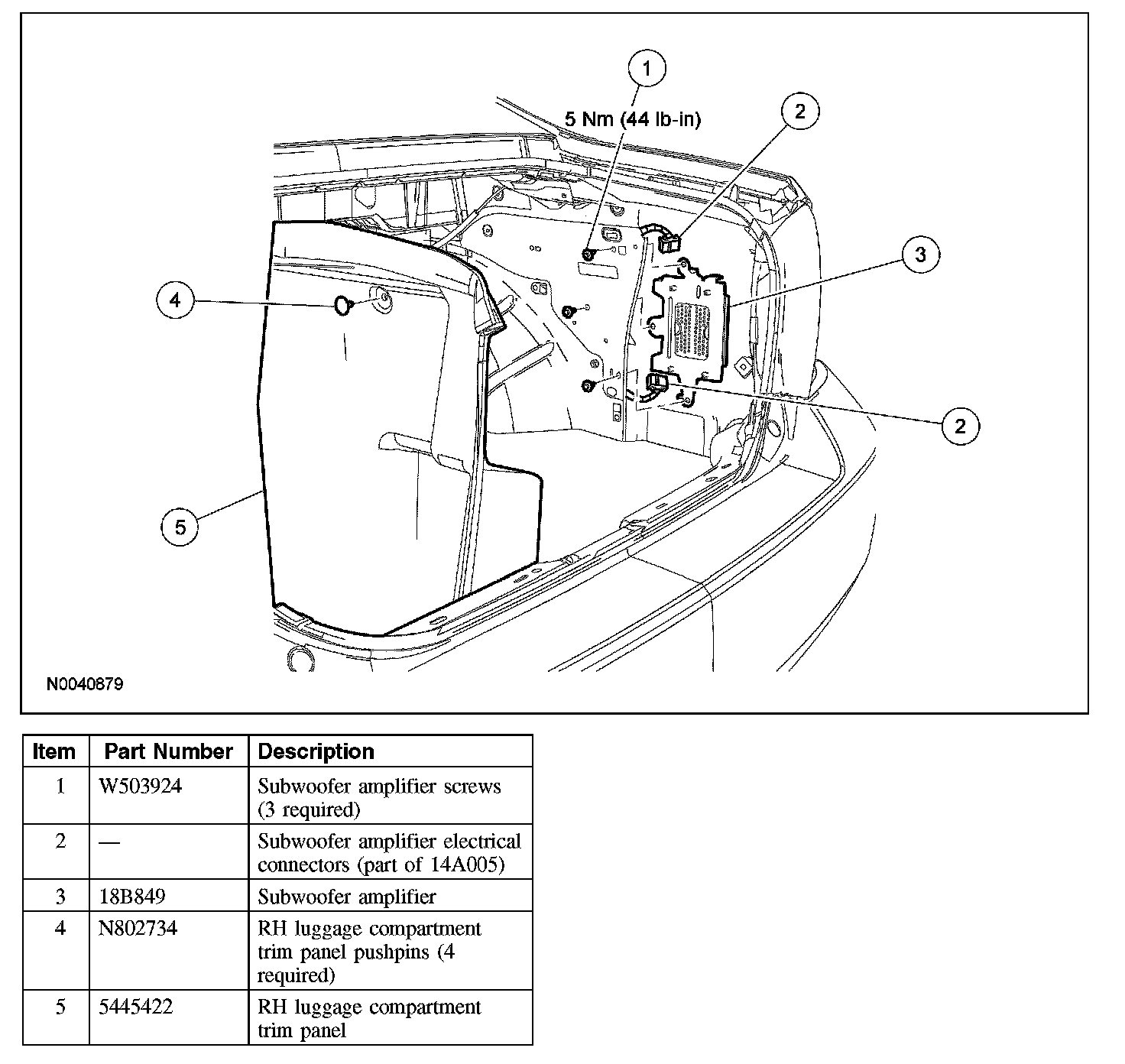

SUBWOOFER AMPLIFIER







Removal and Installation

NOTE: Make sure the key is in the OFF position.

1. Remove the 4 pushpins and the RH luggage compartment trim panel.
2. Disconnect the subwoofer amplifier electrical connectors.
3. Remove the 3 screws and the subwoofer amplifier.
- To install, tighten to 5 Nm (44 lb-in).

4. To install, reverse the removal procedure.
