Brake Booster: Notes

Material

Item	Specification
Threadlock and Sealer TA-25	WSK-M2G351-A5

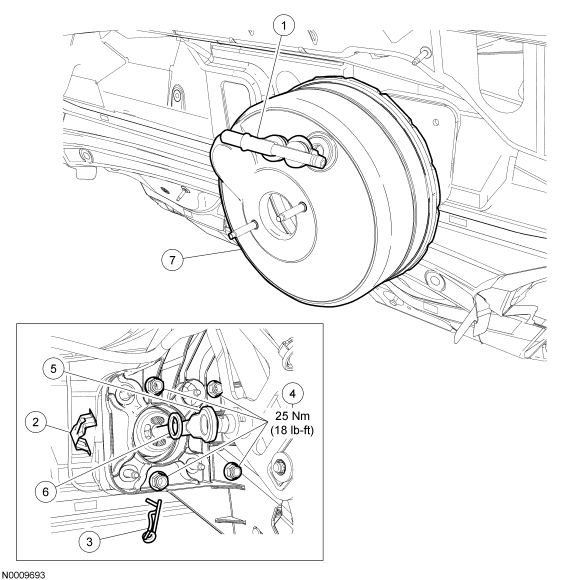

Fig 1: Exploded View Of Brake Booster With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2365	Brake booster vacuum fitting
2	3757	Redundant self-locking pin cover
3	380699	Self-locking pin
4	W520112	Brake booster nuts (4 required)
5	-	Brake booster rod (part of 2005)
6	2B129	Brake booster rod washer
7	2005	Brake booster

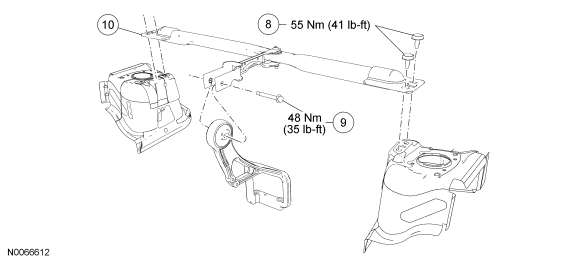

Fig 2: Exploded View Of Transaxle Roll Restrictor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
8	W705985	Transaxle roll restrictor cross brace bolts (4 required)
9	W506525	Transaxle roll restrictor bolt
10	6G053	Transaxle roll restrictor cross brace
