Home >> Mercury >> 2006 >> Monterey >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brake System Actuation >> Removal And Installation >> Brake Fluid Reservoir >> Notes

Brake Fluid Reservoir: Notes

MATERIAL SPECIFICATION

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) ESA-M6C25-A

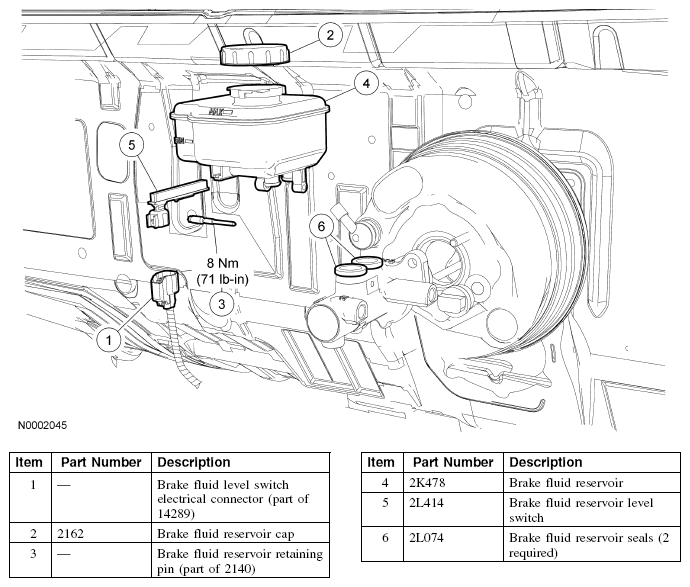

Fig 1: Identifying Brake Fluid Reservoir Components
G04660080Courtesy of FORD MOTOR CO.
