Wheel Cylinder: Installation
Follow the removal procedure in reverse order.
Bleed the brake system. For additional information, refer to
BRAKE SYSTEM-GENERAL INFORMATION
.

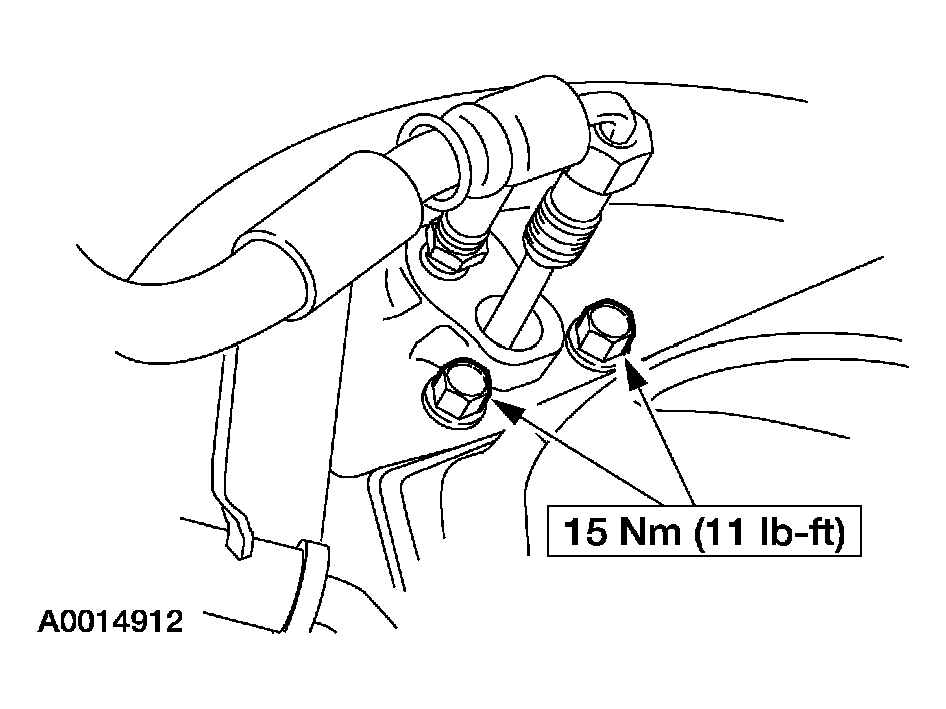

Fig 1: Installing Rear Wheel Cylinder Bolts - With Torque Specification
Courtesy of FORD MOTOR CO.

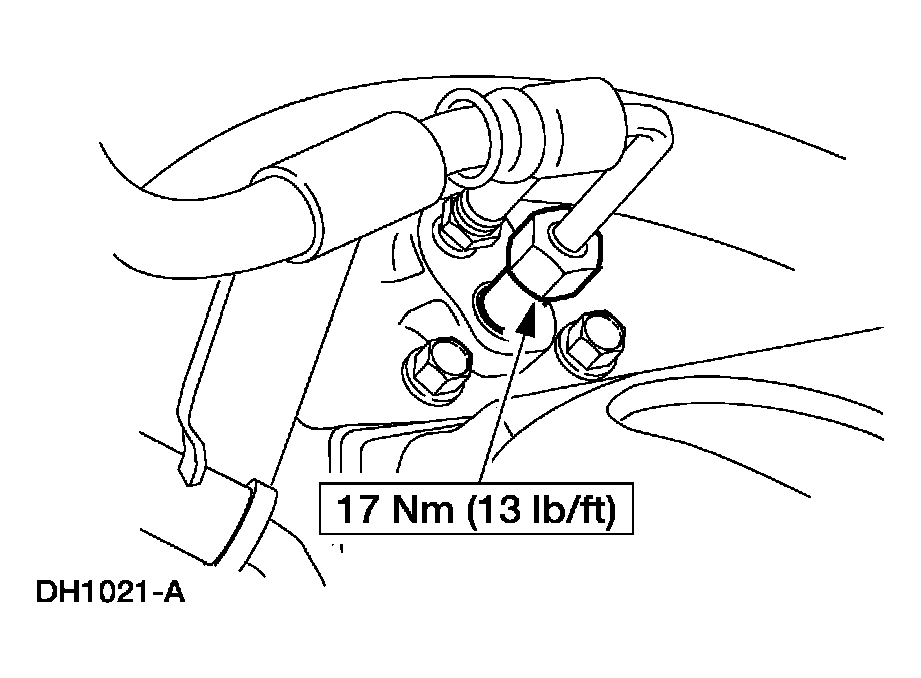

Fig 2: Connecting Brake Line Fitting - With Torque Specification
Courtesy of FORD MOTOR CO.
