Removal And Installation: Shoes: Removal

1. Remove the brake drum (1126). For additional information, refer to DRUM  .
2. Inspect the rear brake assembly for the following:
   1. The rear wheel cylinder for leakage.
   2. The rear brake shoes and linings for contamination, and install new as necessary.
   3. The springs for heat discoloration and install new as necessary.
   4. The adjusting lever contact with the brake adjuster screw.

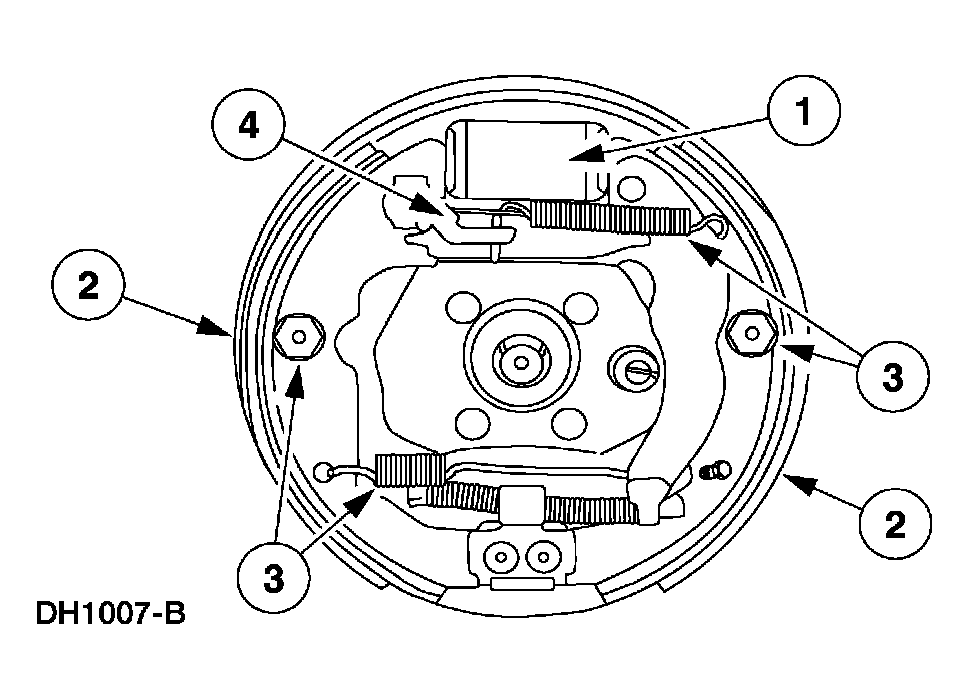

   Fig 1: Identifying Rear Brake Assembly Components

   Courtesy of FORD MOTOR CO.
3. Inspect the rear brake shoes and linings for minimum thickness, above the backing plate or rivets, and install new as necessary.
4. Remove the brake shoe adjusting screw spring.

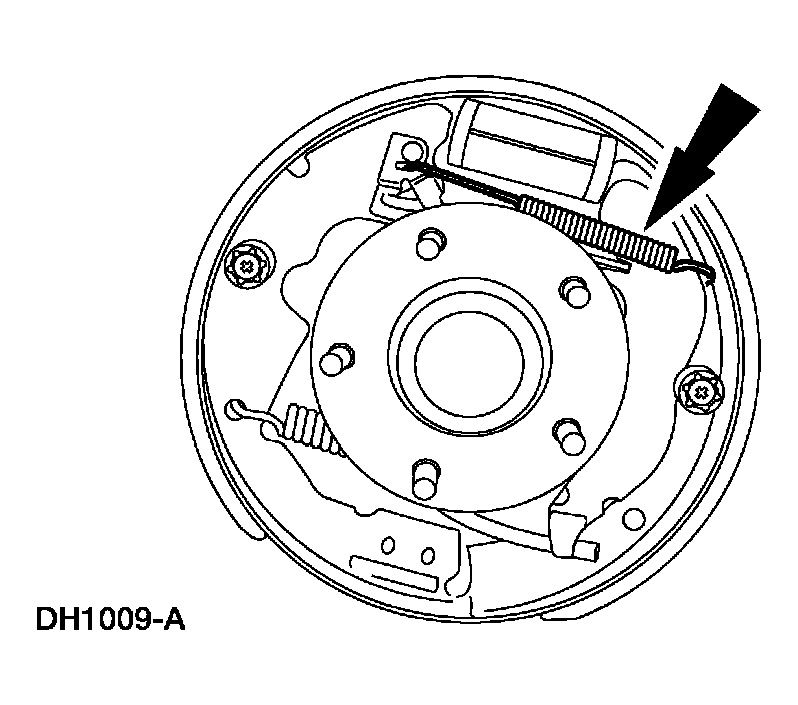

   Fig 2: Removing Brake Shoe Adjusting Screw Spring

   Courtesy of FORD MOTOR CO.
5. Remove the brake adjuster lever.

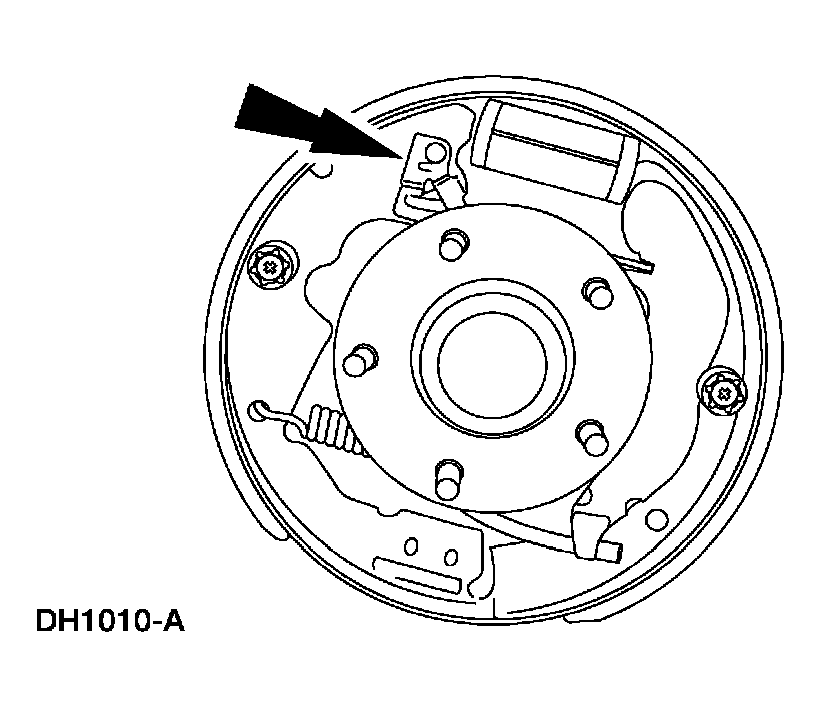

   Fig 3: Removing Brake Adjuster Lever

   Courtesy of FORD MOTOR CO.

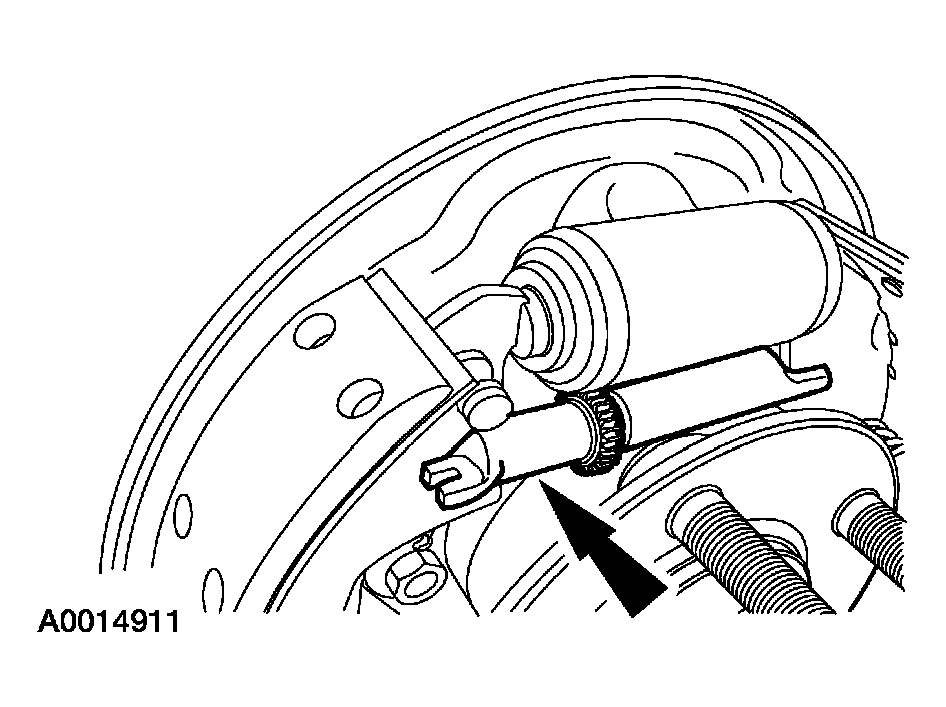

6. Remove the brake adjuster screw.
   Fig 4: Removing Brake Adjuster Screw

   Courtesy of FORD MOTOR CO.
7. Remove the brake shoe hold-down spring.

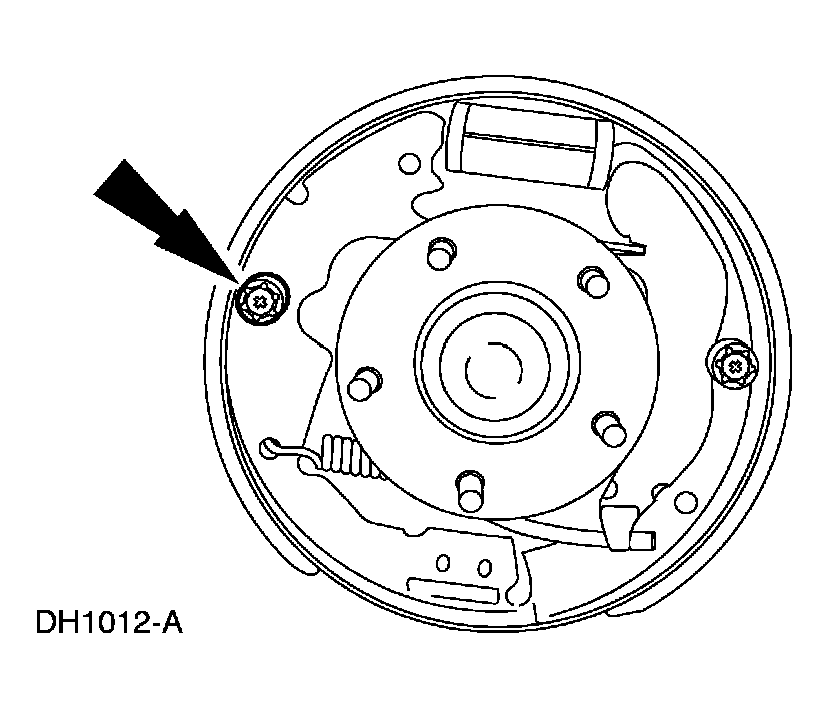

   Fig 5: Removing Brake Shoe Hold-Down Spring

   Courtesy of FORD MOTOR CO.
8. Remove the brake shoe and the retracting spring.

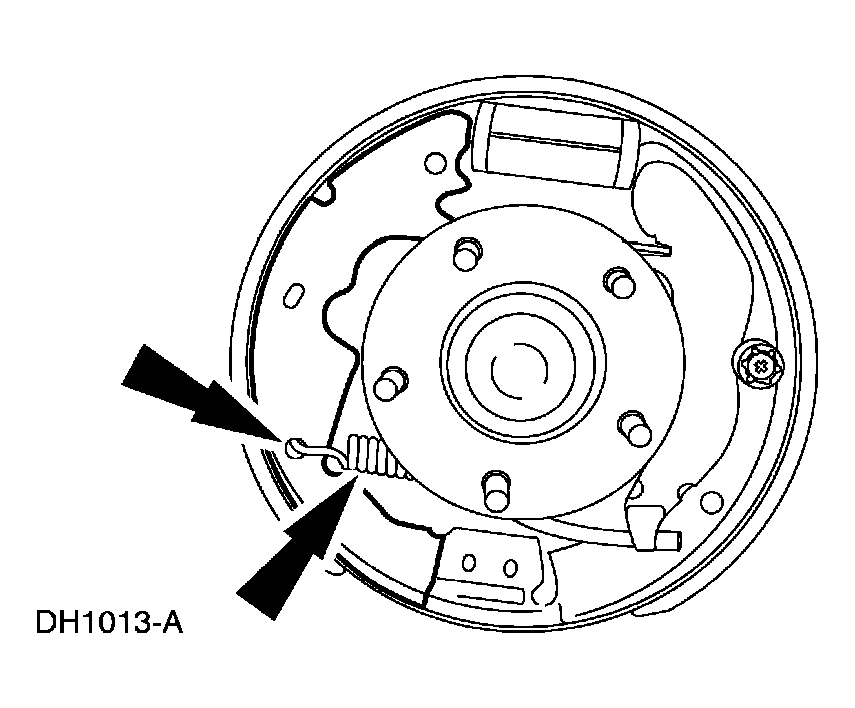

   Fig 6: Removing Brake Shoe And Retracting Spring

   Courtesy of FORD MOTOR CO.
9. Remove the rear brake shoe hold-down spring.

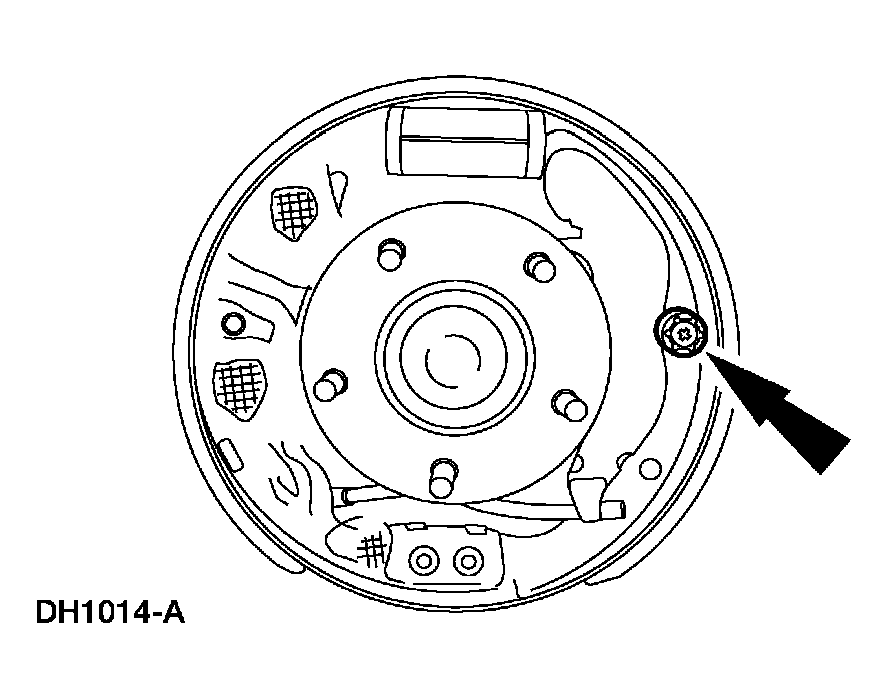

   Fig 7: Removing Rear Brake Shoe Hold-Down Spring

   Courtesy of FORD MOTOR CO.
10. Remove the rear brake shoes and linings.

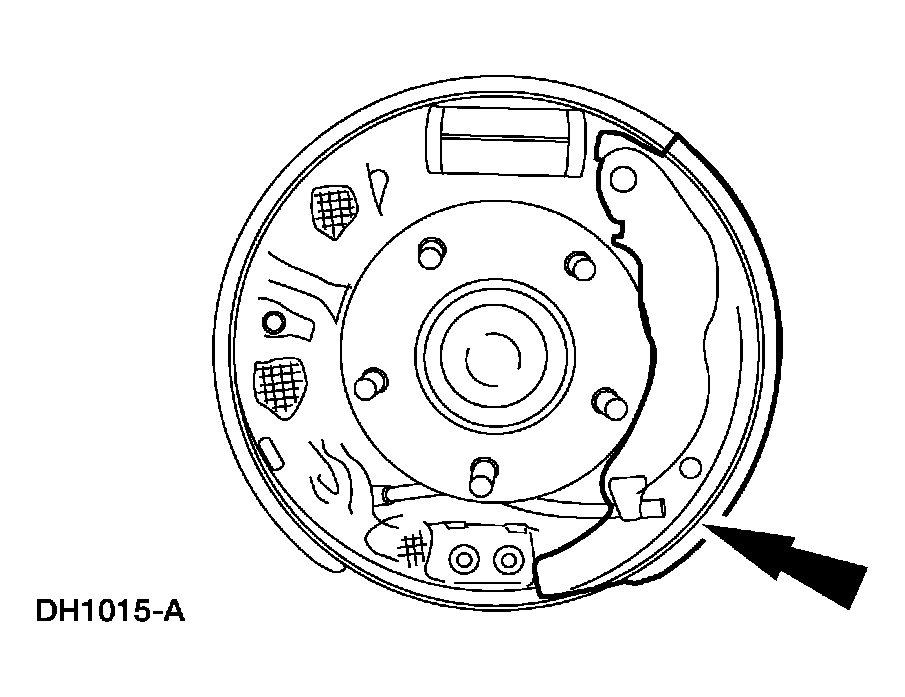

    Fig 8: Removing Rear Brake Shoes And Linings

    Courtesy of FORD MOTOR CO.
11. Remove and discard the parking brake lever clip.

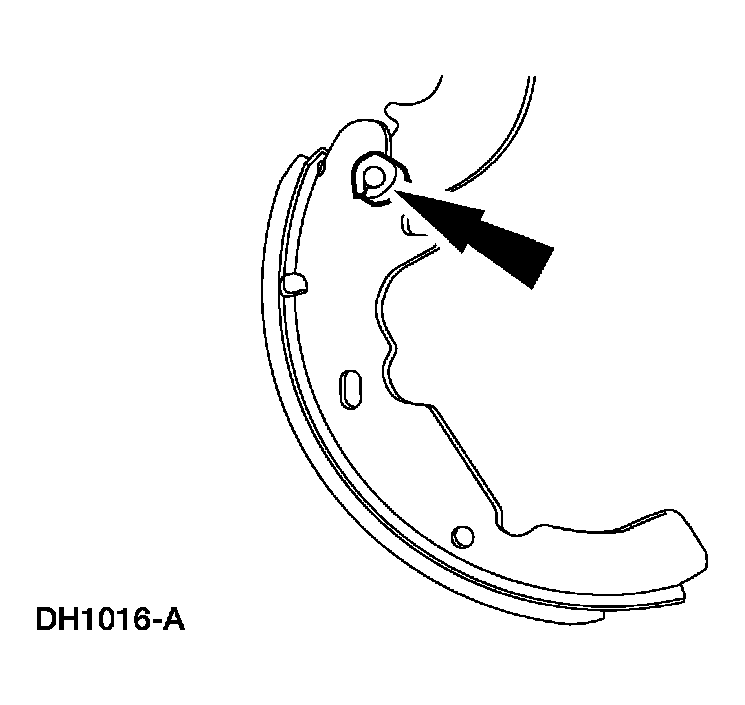

    Fig 9: Removing Parking Brake Lever Clip

    Courtesy of FORD MOTOR CO.

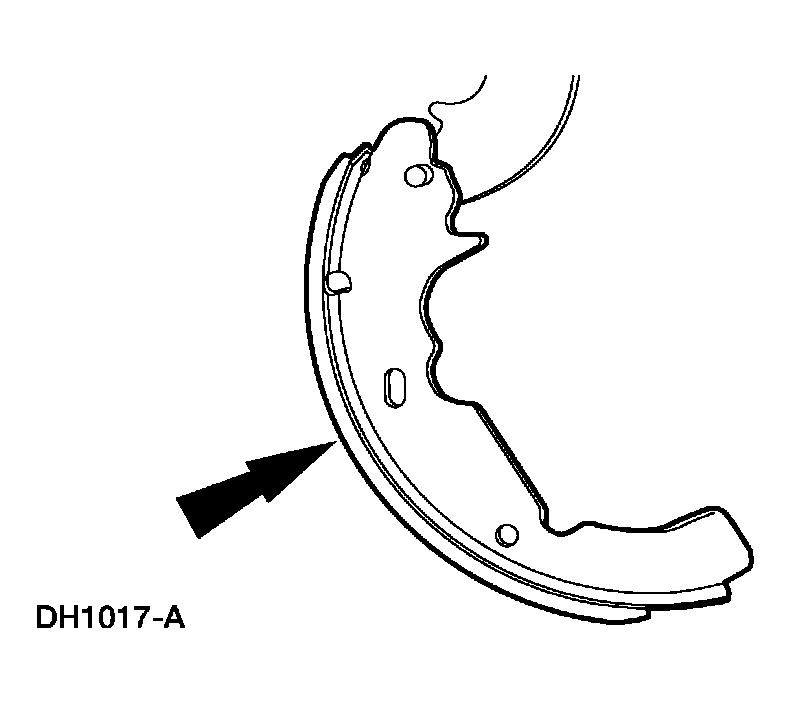

12. Remove the rear brake shoes and linings from the parking brake lever.

Fig 10: Removing Rear Brake Shoes And Linings From Parking Brake Lever

Courtesy of FORD MOTOR CO.
