Removal And Installation: Drum: Removal

WARNING: Asbestos fiber dust can be present on brake and clutch assemblies and is hazardous to health if inhaled.

Brake and clutch assemblies must be cleaned using a vacuum cleaner recommended for use with asbestos fibers, such as a brake/clutch/service vacuum. The bag must be labeled per OSHA instructions, sealed, and the trash hauler notified as to the bag's contents.

WARNING: If a vacuum suitable for asbestos is not available, cleaning must be done wet. If dust generation is still possible, technicians must wear government-approved toxic dust purifying respirators.

The Occupational Safety and Health Act (OSHA) requires areas where asbestos dust generation is possible to be isolated and posted with warning signs. Only technicians performing brake or clutch repair are to be present in the area.

WARNING: To reduce the possibility of uneven braking, always install new rear brake shoes and linings at both ends of an axle.

Remove the wheel and tire assembly. For additional information, refer to WHEELS & TIRES .

CAUTION: Use of a brake drum puller or a torch is not recommended. Brake drum distortion can result.

NOTE: If the brake drum (1126) is rusted to the axle shaft pilot diameter, tap the center of the brake drum between the wheel studs.

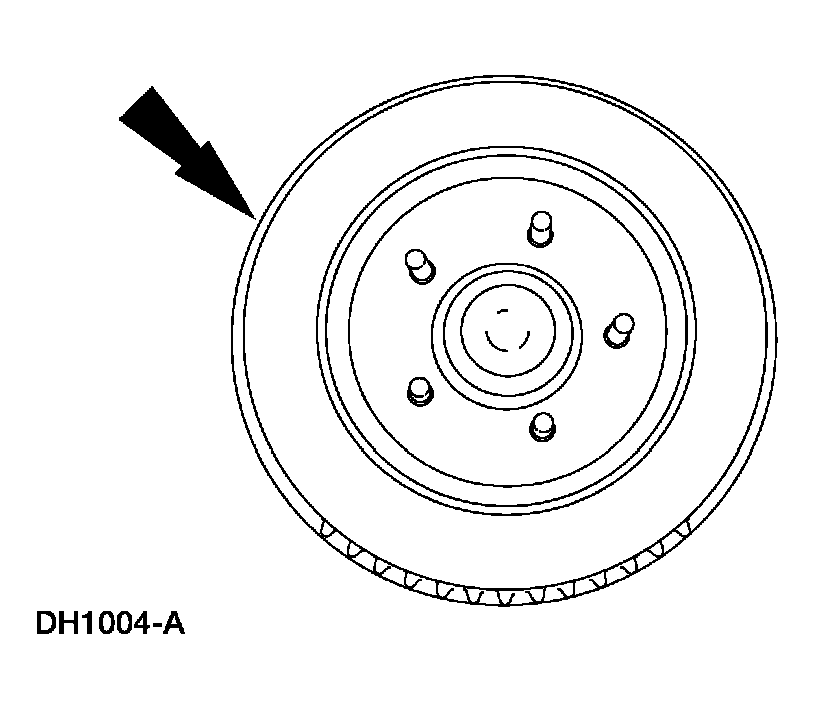

Fig 1: Identifying Brake Drum

Courtesy of FORD MOTOR CO.

Remove the brake drum.

NOTE: If brake drums will not come off, follow these steps.

Fig 2: Loosening Brake Shoe Adjusting Screw Nut

Courtesy of FORD MOTOR CO.

Loosen the brake shoe adjusting screw nut (2K389).
1. Using a screwdriver, move the brake shoe adjusting lever (2A176) off the brake adjuster screw.
2. Use the Brake Adjustment Tool to loosen the brake shoe adjusting screw nut.
Using the special tool, measure the brake drum inside diameter.
- Install a new brake drum if the maximum inside diameter exceeds the specification molded into the brake drum.

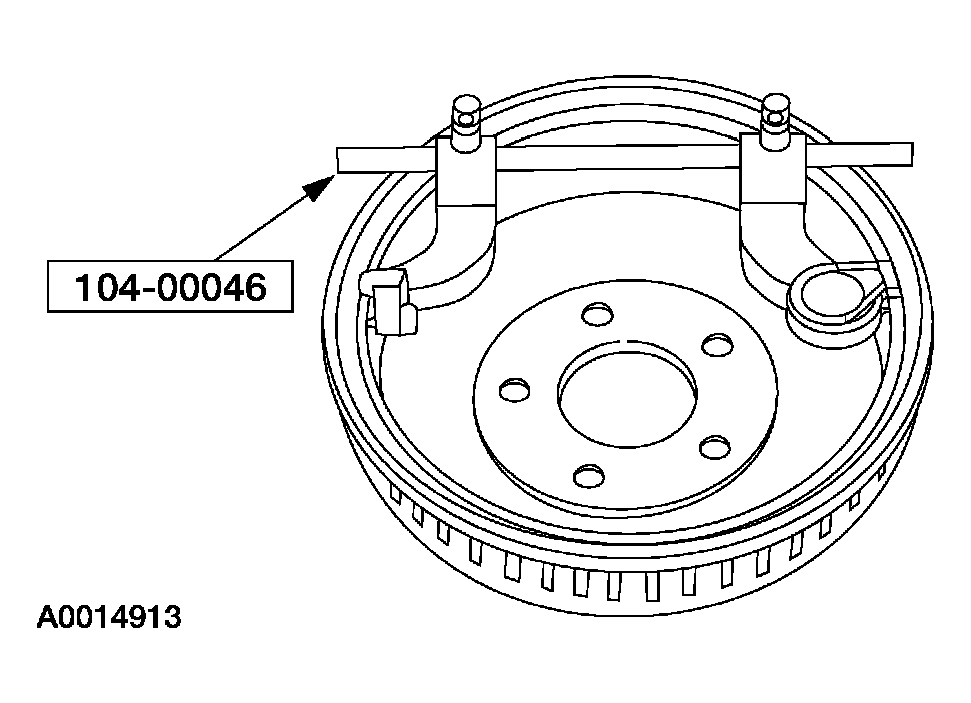

Fig 3: Measuring Brake Drum Inside Diameter
Courtesy of FORD MOTOR CO.
