Drum Brake: Notes

The drum brake system:

• is the single anchor type.
• has active self-adjustment.
• is split front and rear hydraulically.

Rear Brake

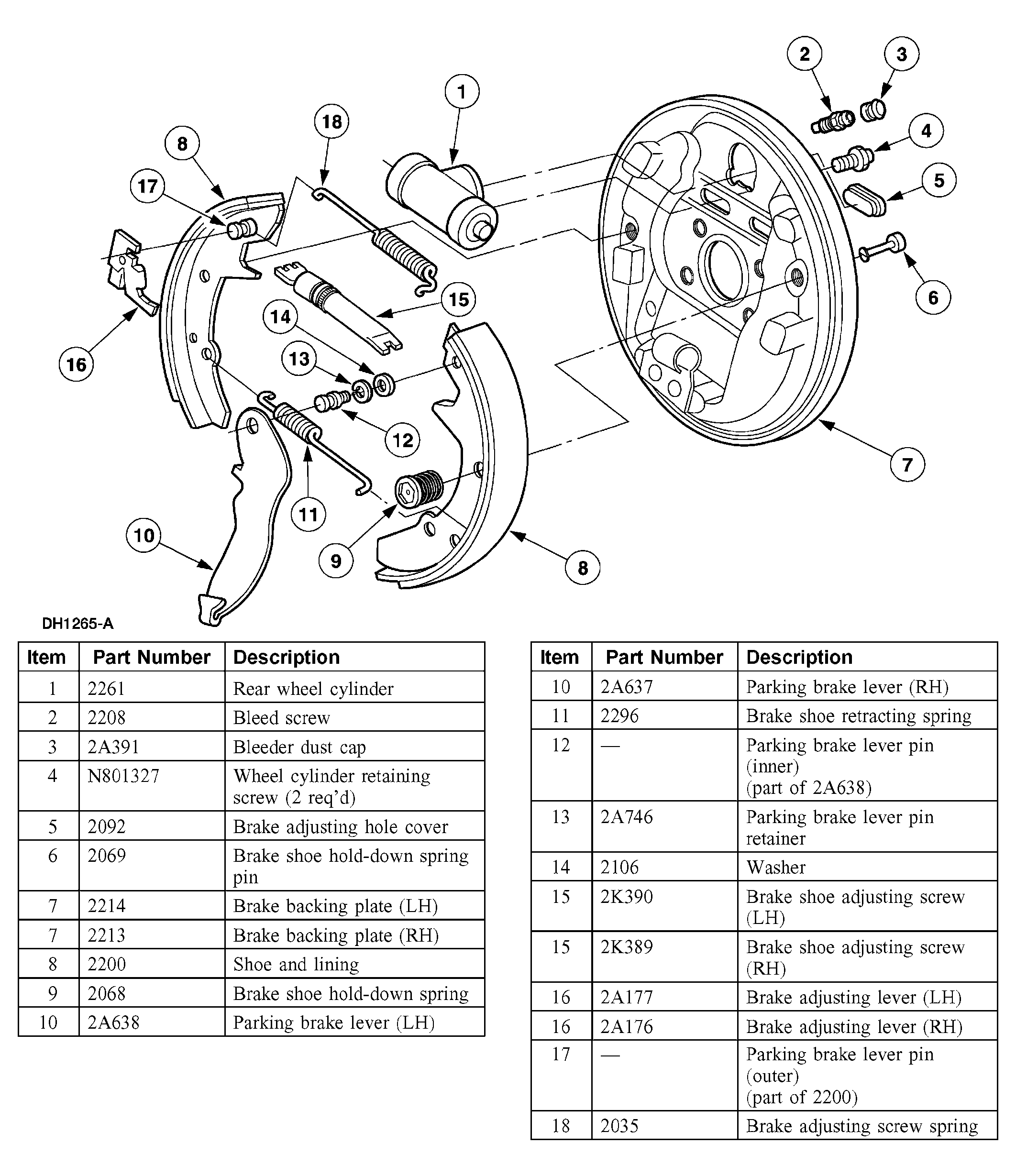

Fig 1: Identifying Rear Drum Brake System Components

Courtesy of FORD MOTOR CO.
