Pinpoint Test B: The Audio System Illumination Is Inoperative - Front Or Rear Controls

B1 CHECK CIRCUIT 1417 (LG/RD) FOR VOLTAGE
- Key in OFF position.
- Disconnect: Audio Unit C240a (front), or RICP C9025.
- Place the headlamp switch in the PARK position.
- Rotate the instrument panel dimmer switch to the full illumination position.
- Measure the voltage between the audio unit C240a-3 (front), circuit 1417 (LG/RD), harness side; and between the RICP C9025-17, circuit 1417 (LG/RD), harness side and ground.

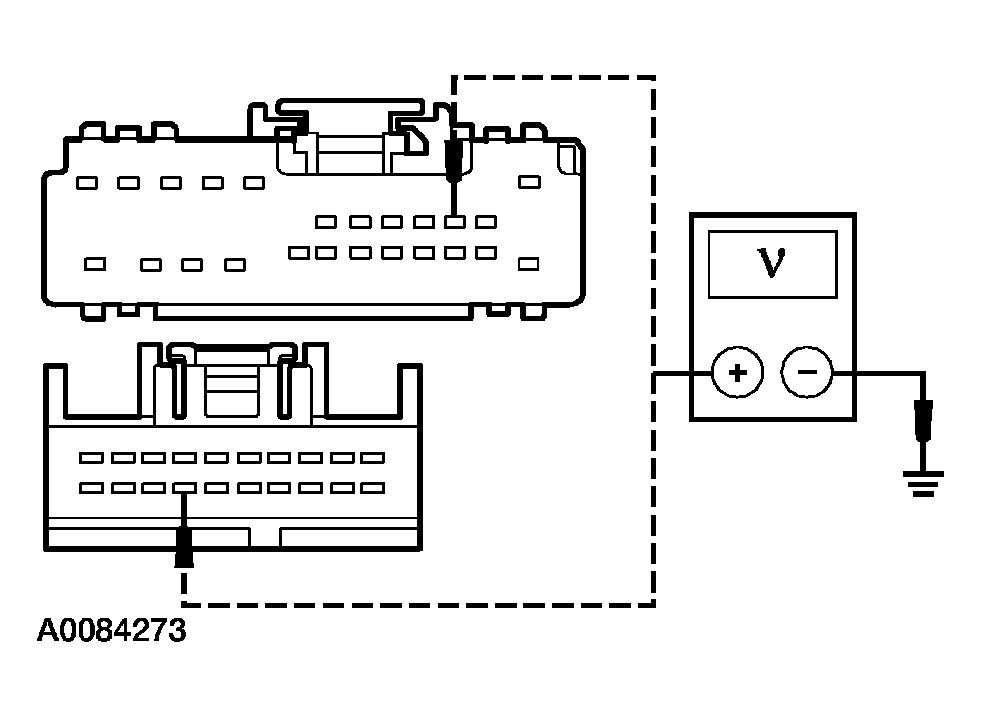

  Fig 1: Measuring Voltage Between RICP C9025-17, Circuit 1417 (LG/RD), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- Is the voltage greater than 10 volts?
- Yes : GO to B2 .
- No : REPAIR the circuit. TEST the system for normal operation.
B2 CHECK CIRCUIT 1205 (BK) FOR AN OPEN
- Measure the resistance between the audio unit C240a-4 (front) or the RICP C9025-7, circuit 1205 (BK), harness side and ground.

  Fig 2: Measuring Resistance Between Audio Unit C240a-4 (Front) Or RICP C9025-7 And Ground
  Courtesy of FORD MOTOR CO.
- Is the resistance less than 5 ohms?
- Yes : INSTALL a new RICP or SEND the audio unit to an authorized repair facility. REFER to AUDIO UNIT . TEST the system for normal operation after the repair.
- No : REPAIR the circuit. TEST the system for normal operation.
