Connector Circuit Reference

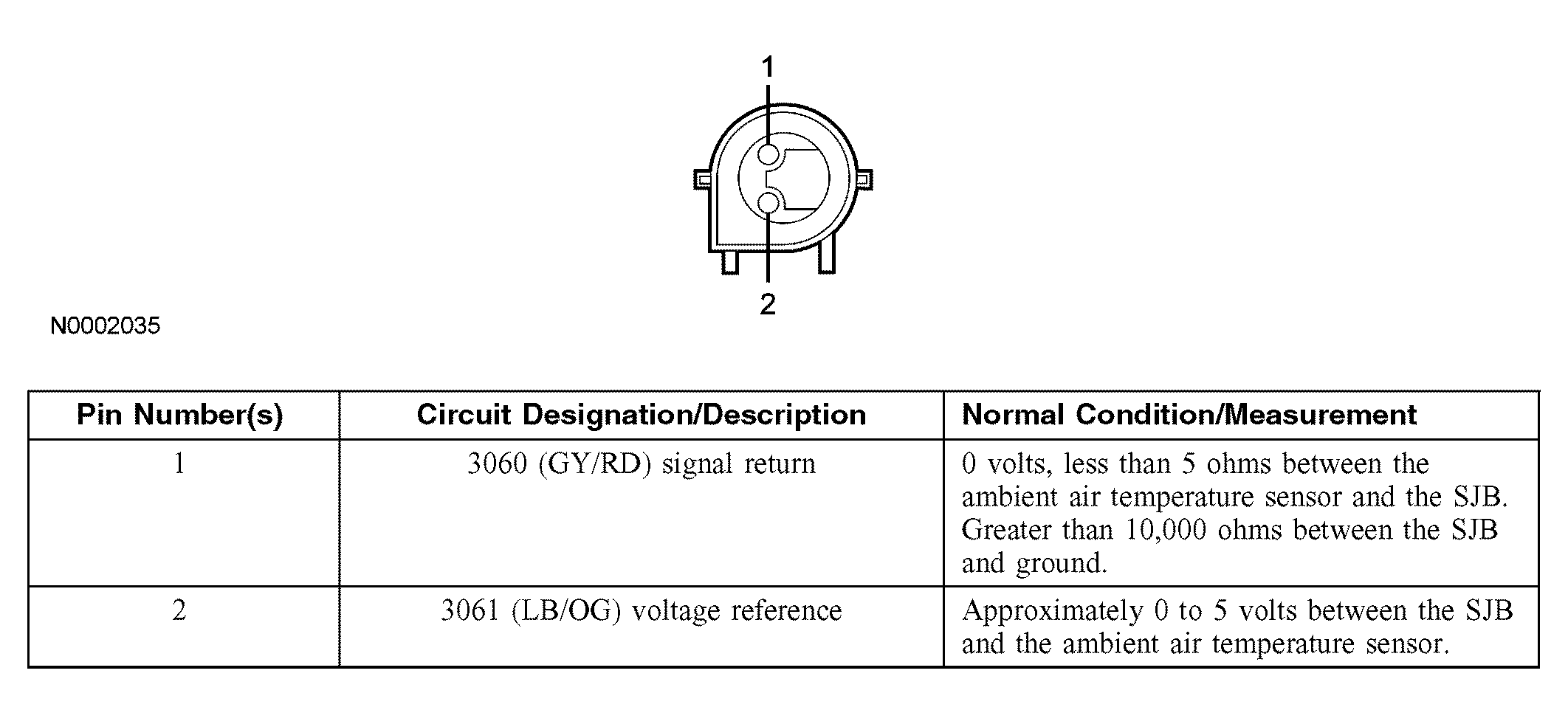

Fig 1: Identifying Ambient Air Temperature Sensor C132 Connector Pinout
G04005982Courtesy of FORD MOTOR CO.

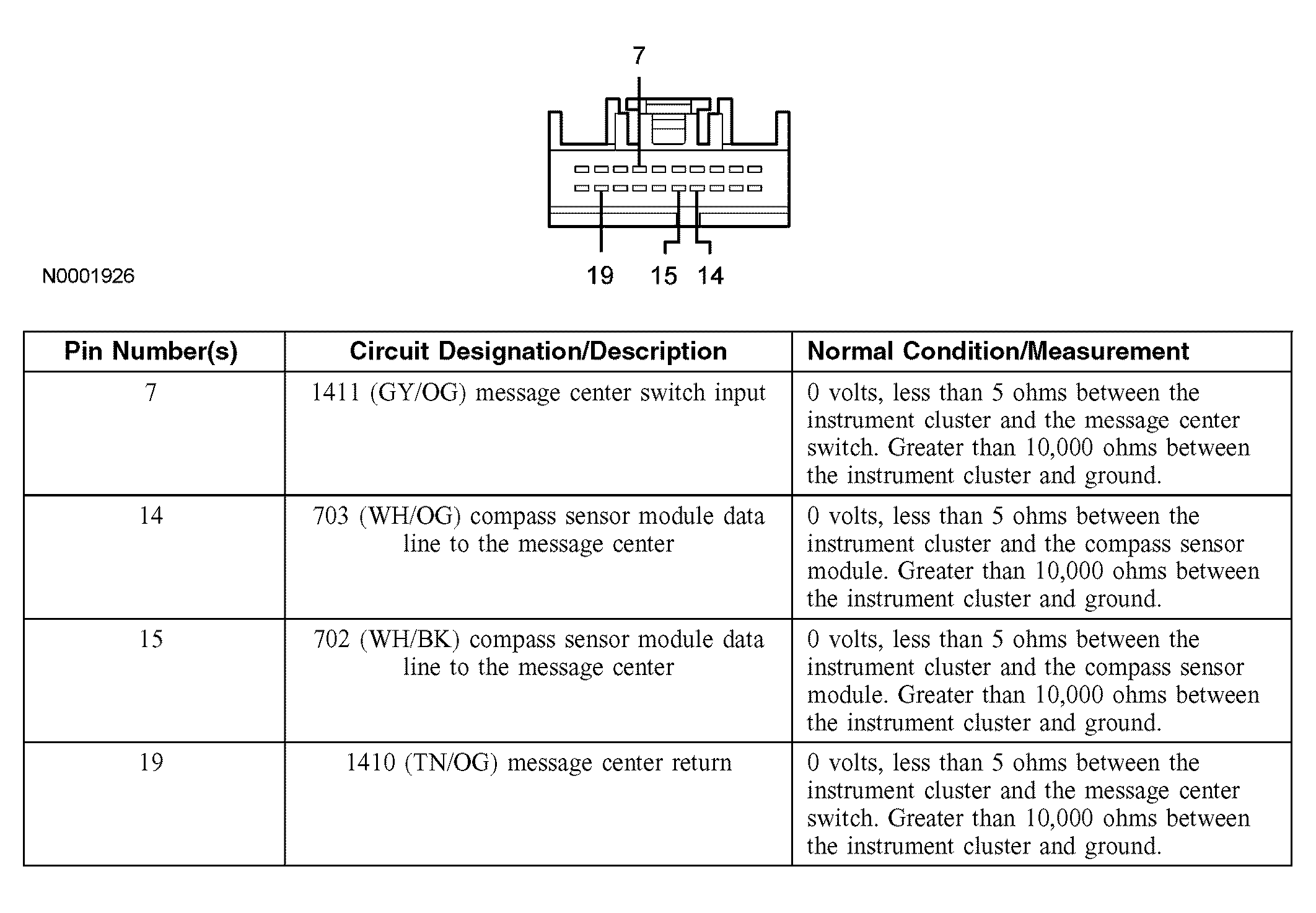

Fig 2: Identifying Instrument Cluster C220a Connector Pinout
G04005983Courtesy of FORD MOTOR CO.

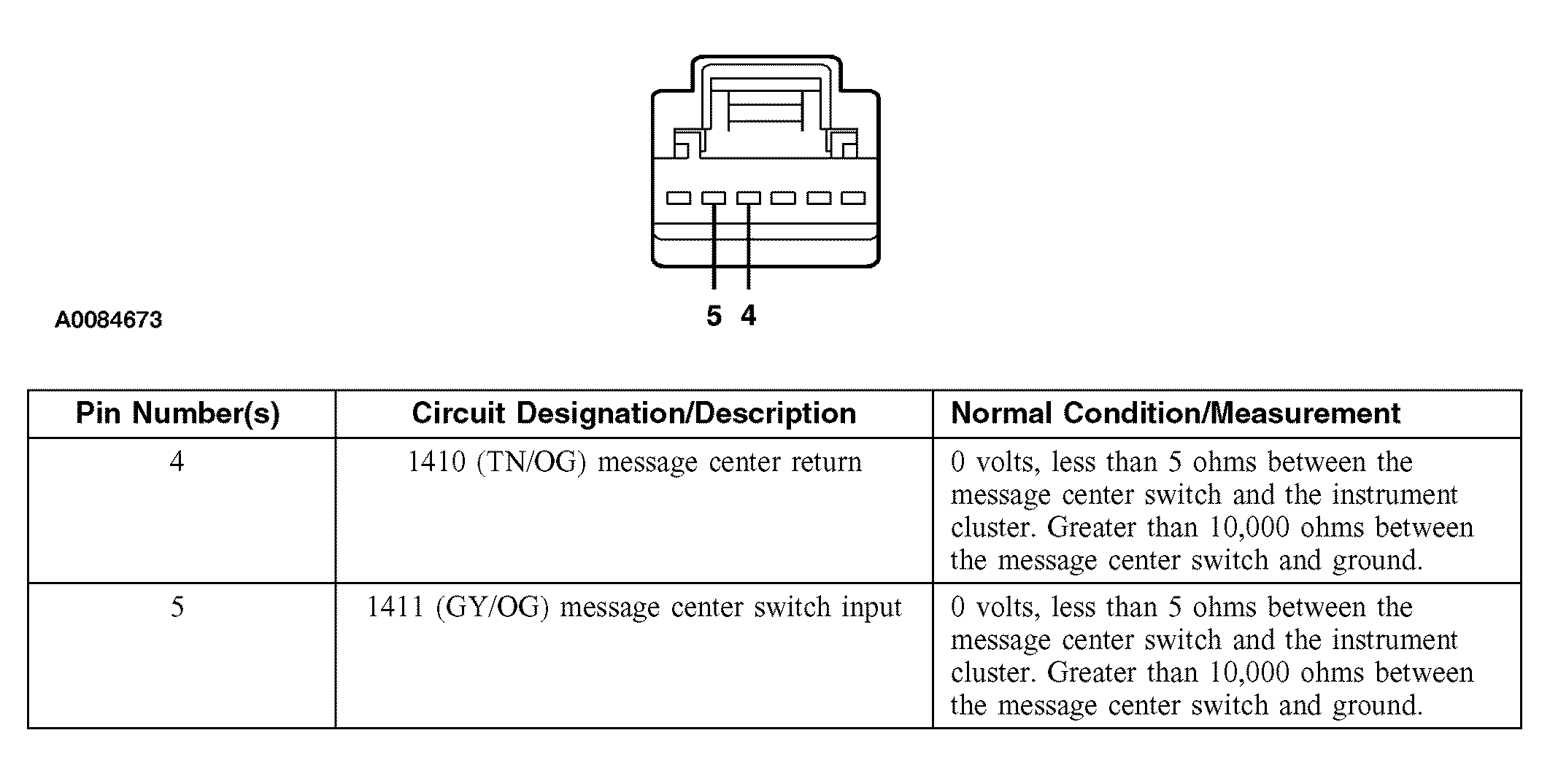

Fig 3: Identifying Message Center Switch C253 Connector Pinout
G04005984Courtesy of FORD MOTOR CO.

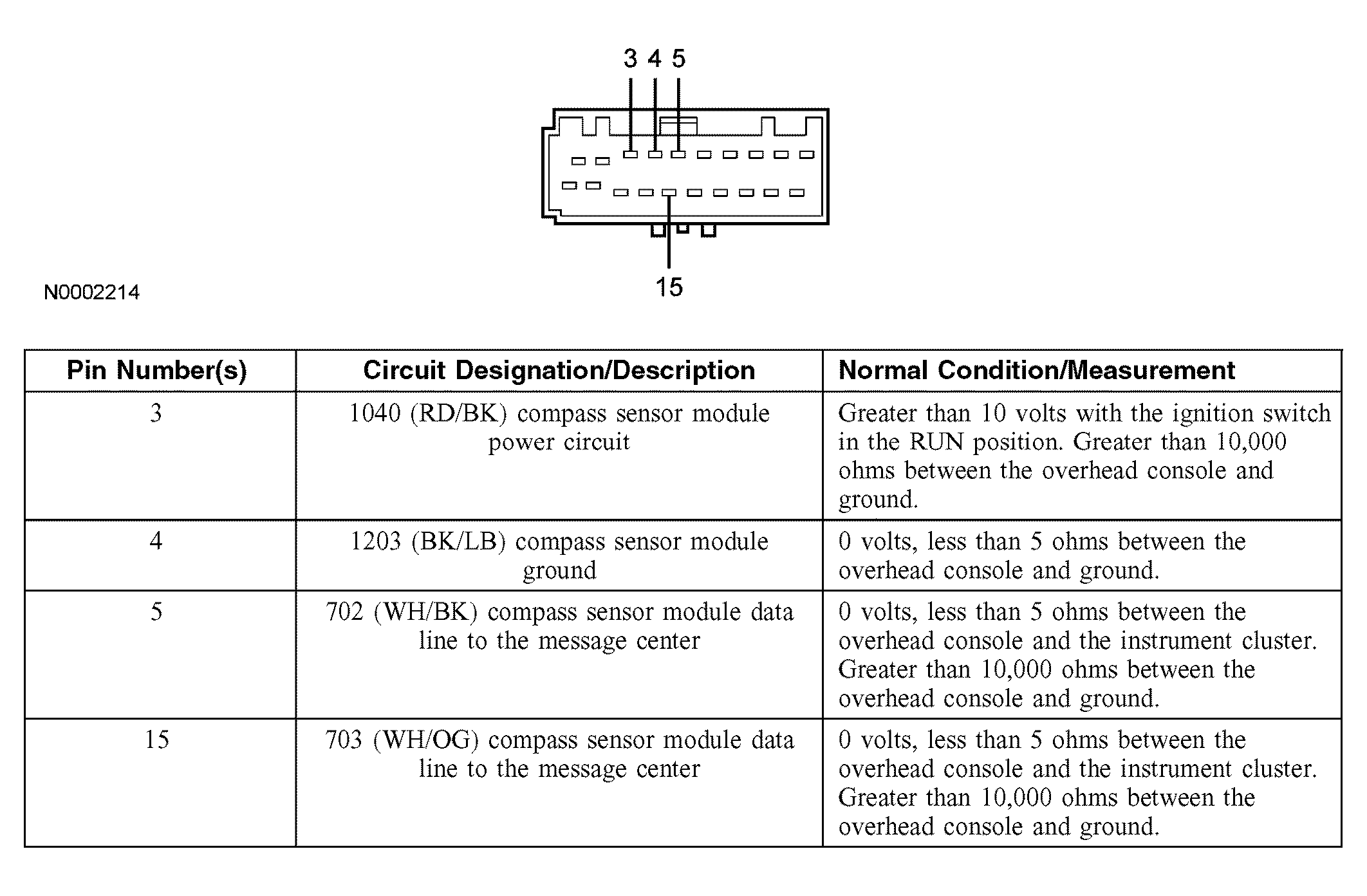

Fig 4: Identifying Overhead Console C930 Connector Pinout
G04005985Courtesy of FORD MOTOR CO.

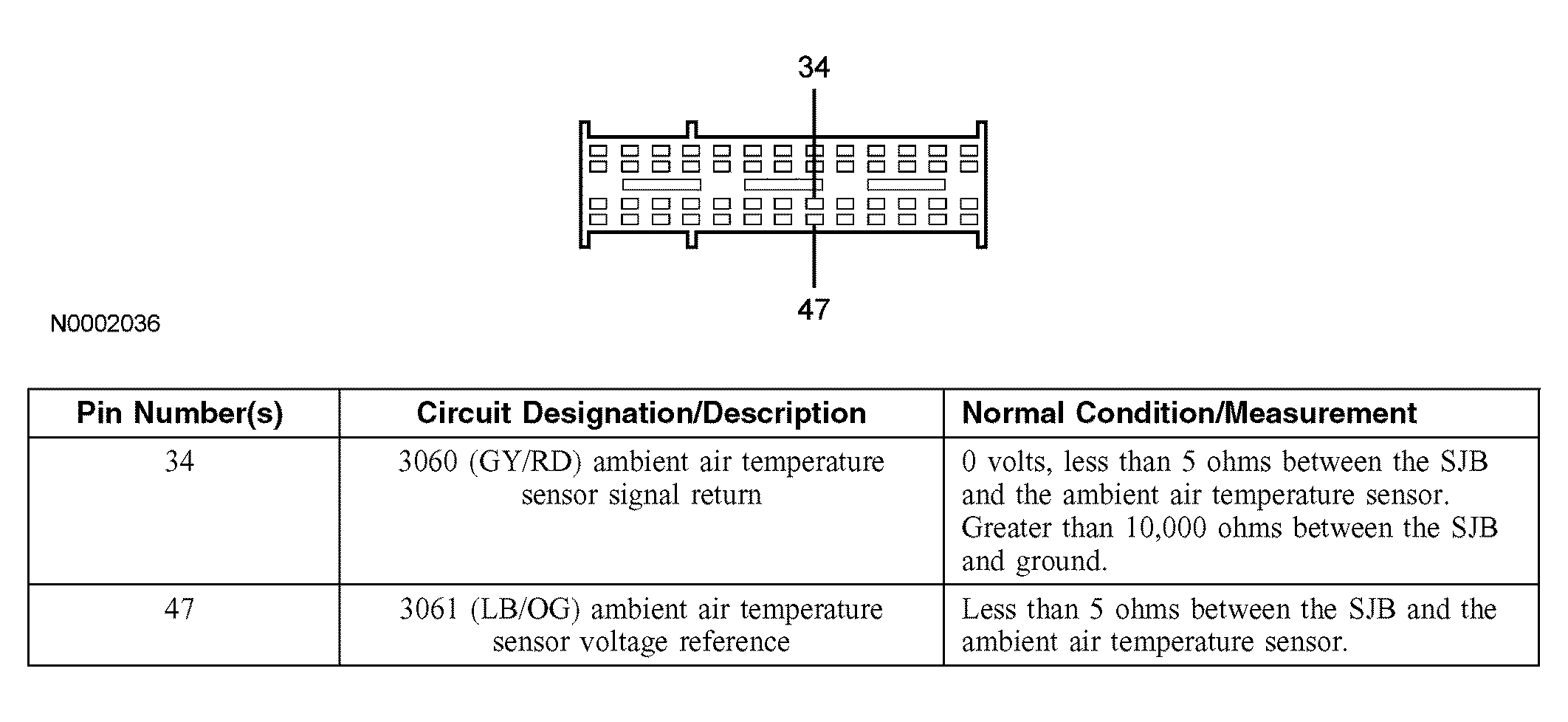

Fig 5: Identifying SJB C2280e Connector Pinout
G04005986Courtesy of FORD MOTOR CO.
