Pinpoint Test G: Charge System Warning Indicator Is Never On

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

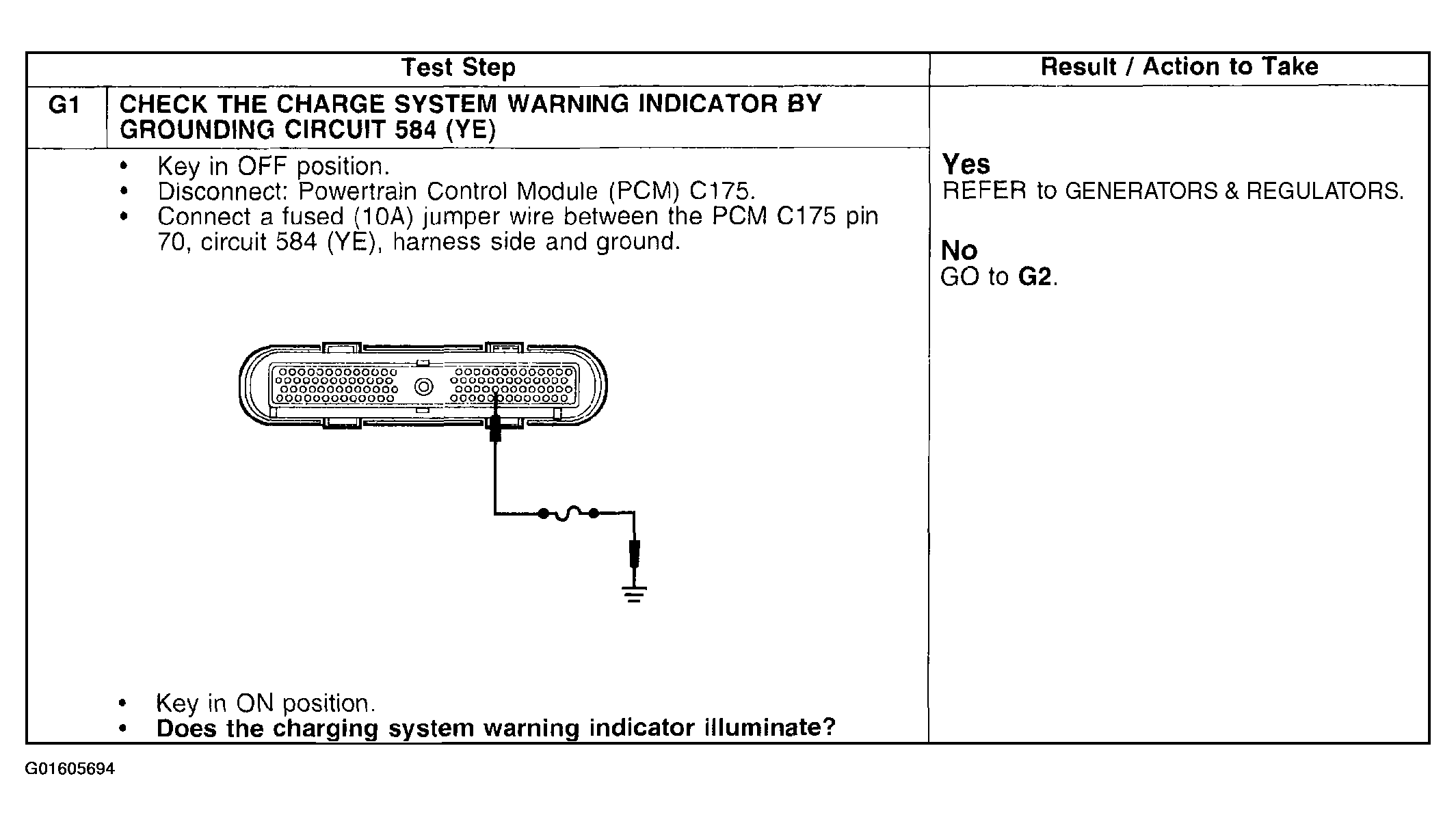

Fig 1: Pinpoint Test G: Charge System Warning Indicator Is Never On (G1)

Courtesy of FORD MOTOR CO.

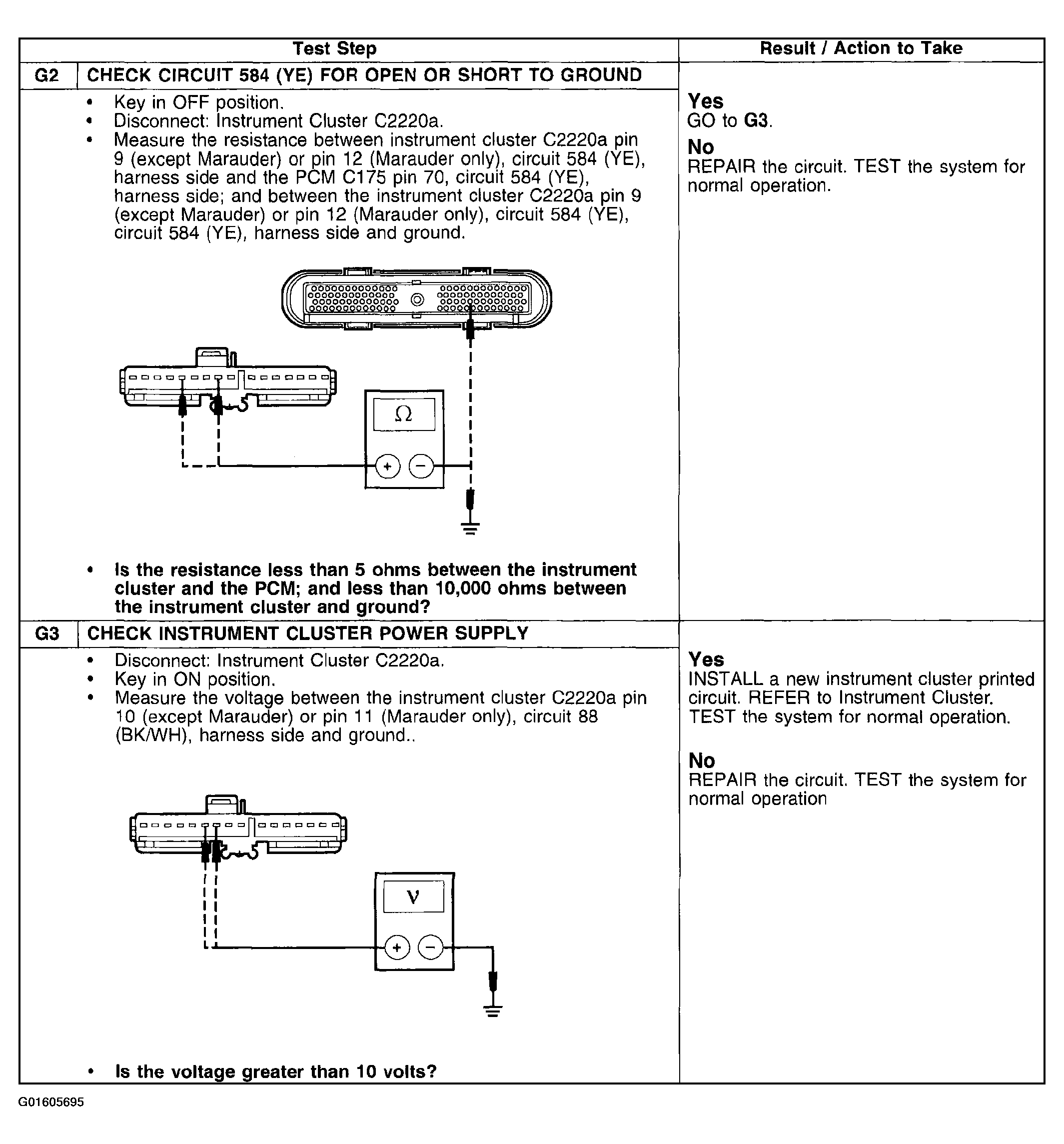

Fig 2: Pinpoint Test G: Charge System Warning Indicator Is Never On (G2-G3)

Courtesy of FORD MOTOR CO.
