Pinpoint Test F: Low Fuel Warning Indicator Is Never/Always On

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

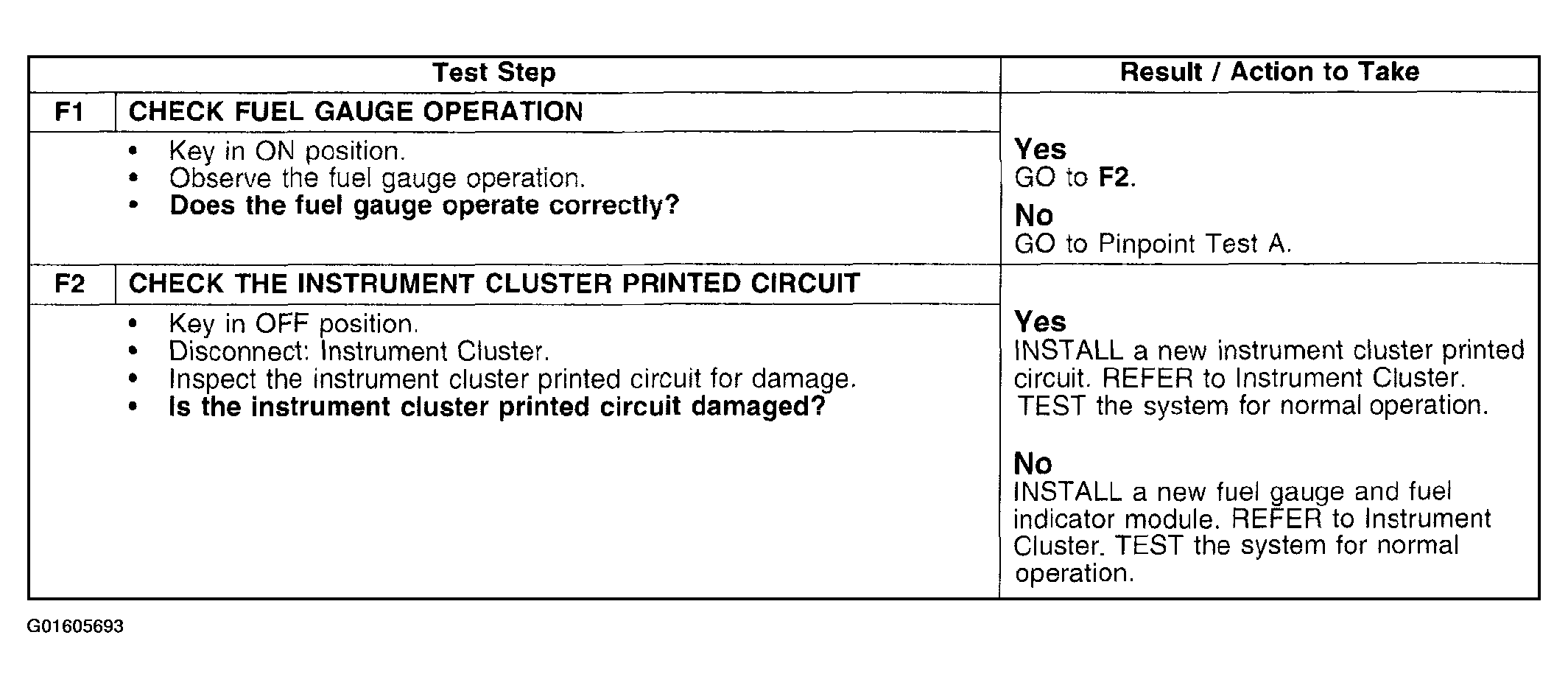

Fig 1: Pinpoint Test F: Low Fuel Warning Indicator Is Never/Always On
G01605693Courtesy of FORD MOTOR CO.
