Pinpoint Test D: Speedometer/Odometer Is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

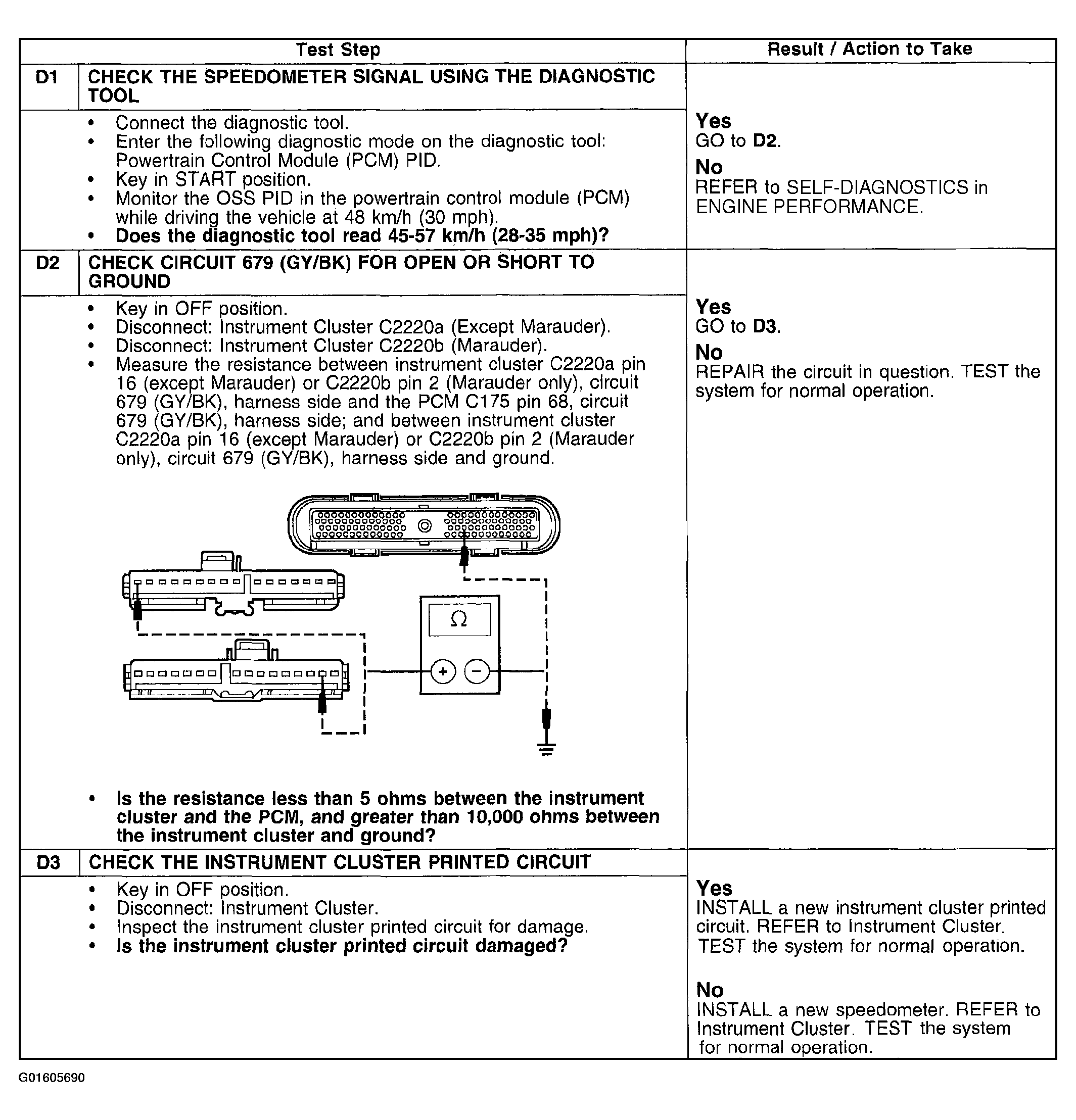

Fig 1: Pinpoint Test D: Speedometer/Odometer Is Inoperative
G01605690Courtesy of FORD MOTOR CO.
