Pinpoint Test F: The Safety Belt Warning Indicator Is Inoperative (Chime Is Operative)

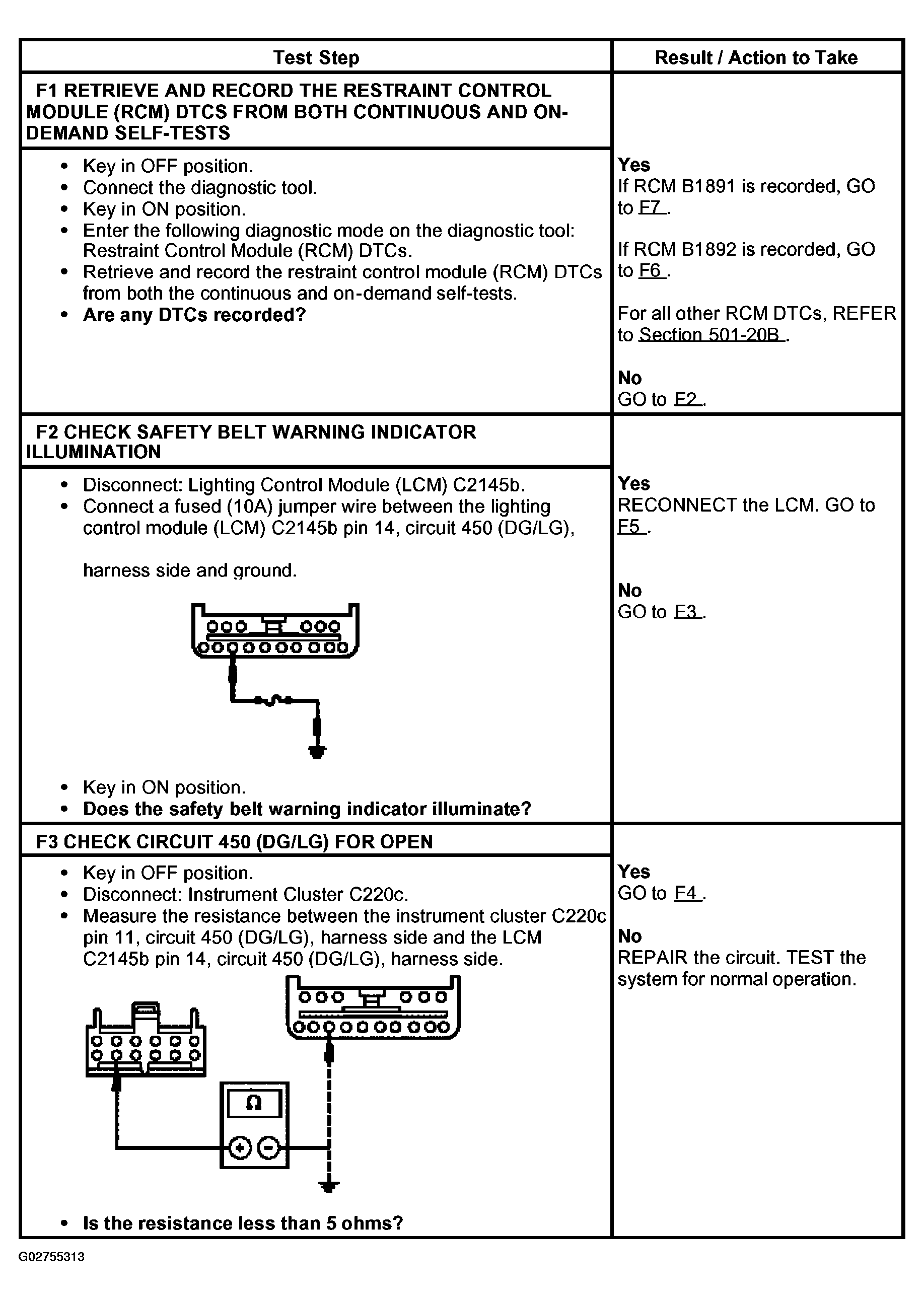

Fig 1: Pinpoint Test F: Safety Belt Warning Indicator Is Inoperative (Chime Is Operative) Step (F1-F3)
G02755313Courtesy of FORD MOTOR CO.

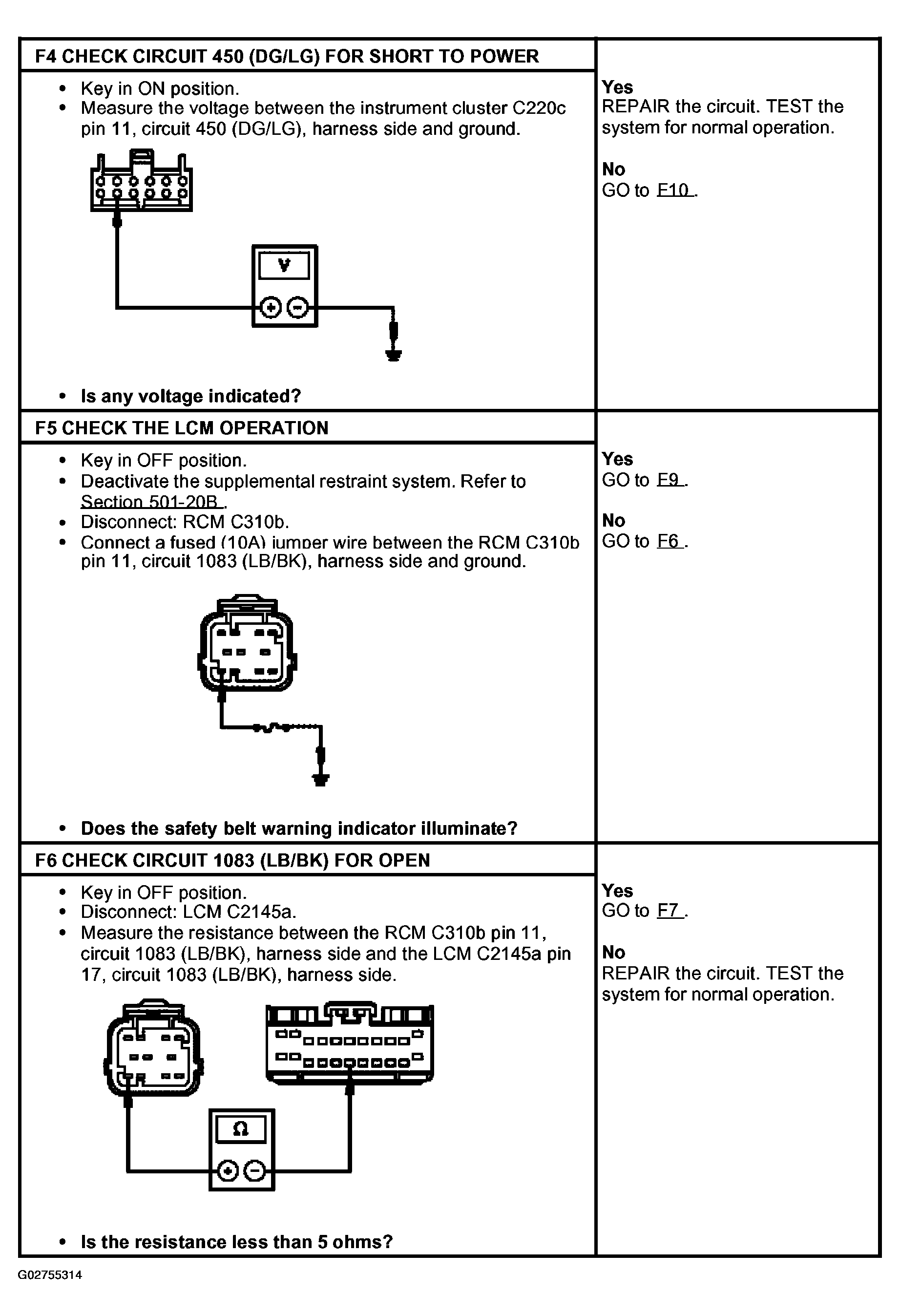

Fig 2: Pinpoint Test F: Safety Belt Warning Indicator Is Inoperative (Chime Is Operative) Step (F4-F6)
G02755314Courtesy of FORD MOTOR CO.

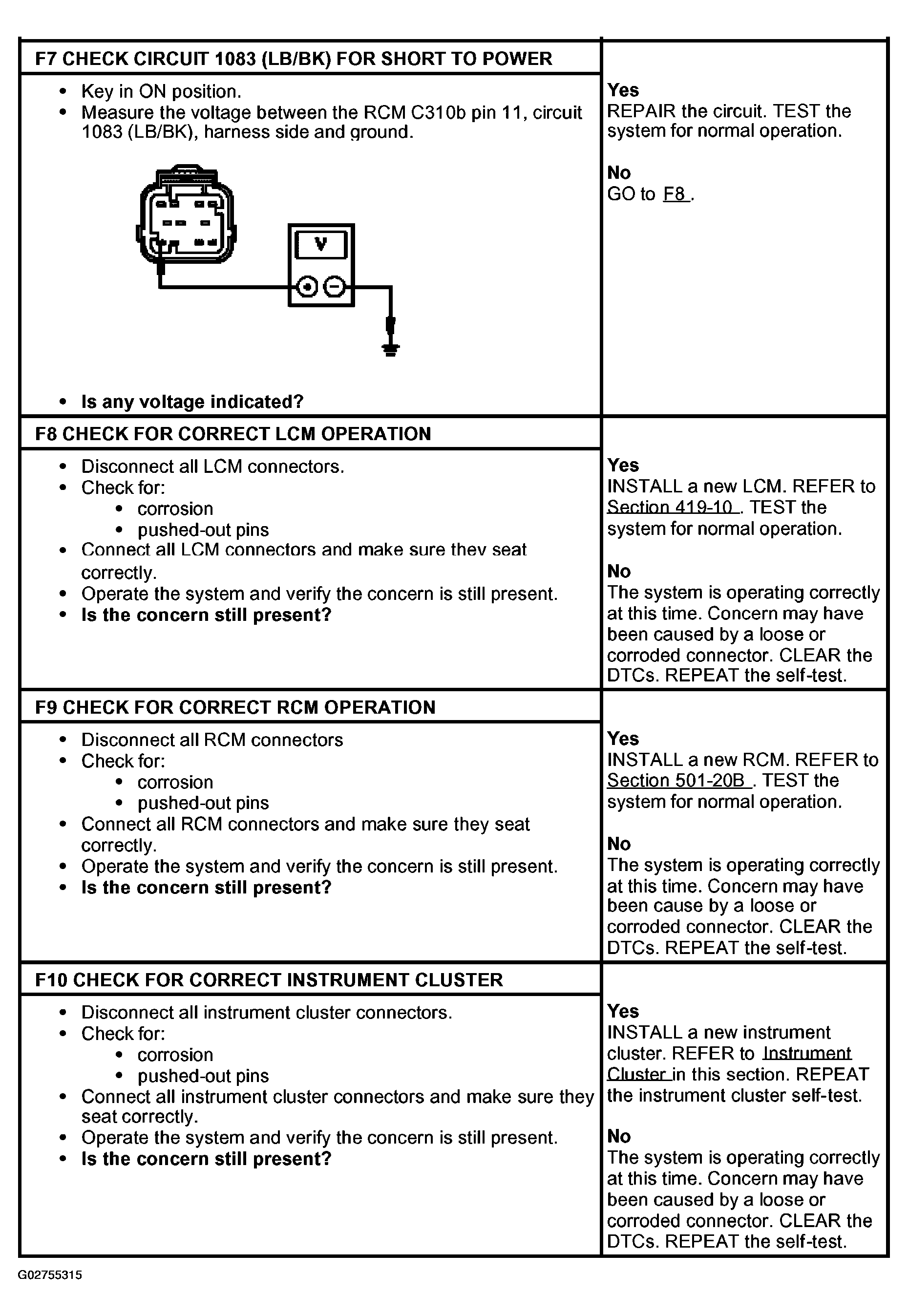

Fig 3: Pinpoint Test F: Safety Belt Warning Indicator Is Inoperative (Chime Is Operative) Step (F7-F10)
G02755315Courtesy of FORD MOTOR CO.
