Removal and Installation

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .
  2. Remove the headlamp switch.

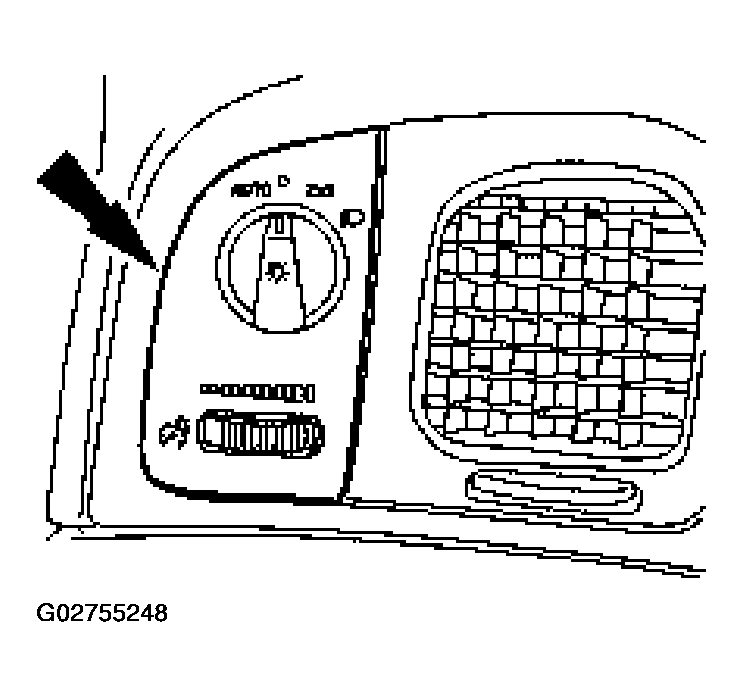

    Fig 1: Removing Headlamp Switch
    G02755248Courtesy of FORD MOTOR CO.
  3. Disconnect the electrical connectors.

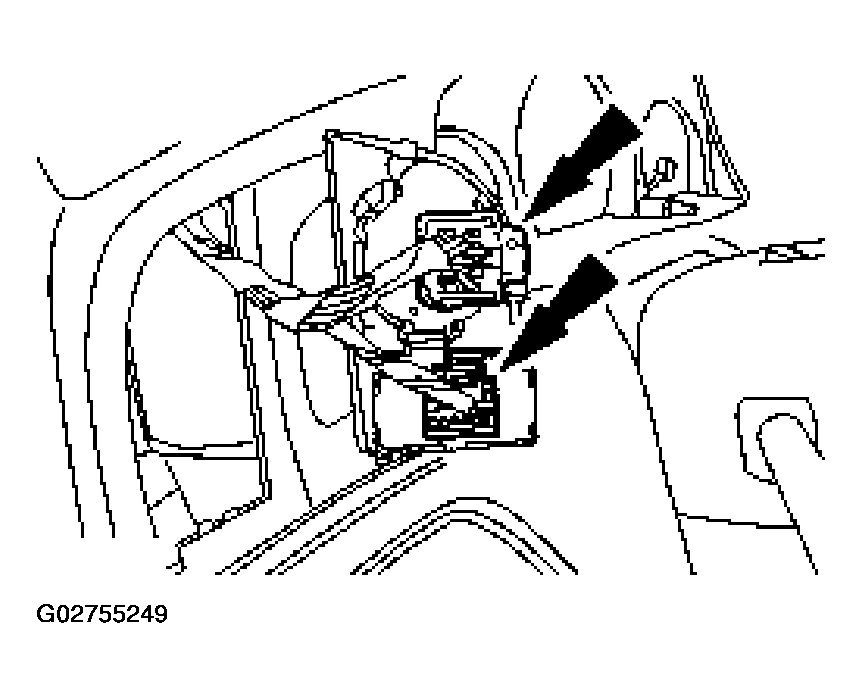

    Fig 2: Disconnecting Electrical Connectors
    G02755249Courtesy of FORD MOTOR CO.
  4. Release the retaining tabs and remove the instrument panel dimmer switch

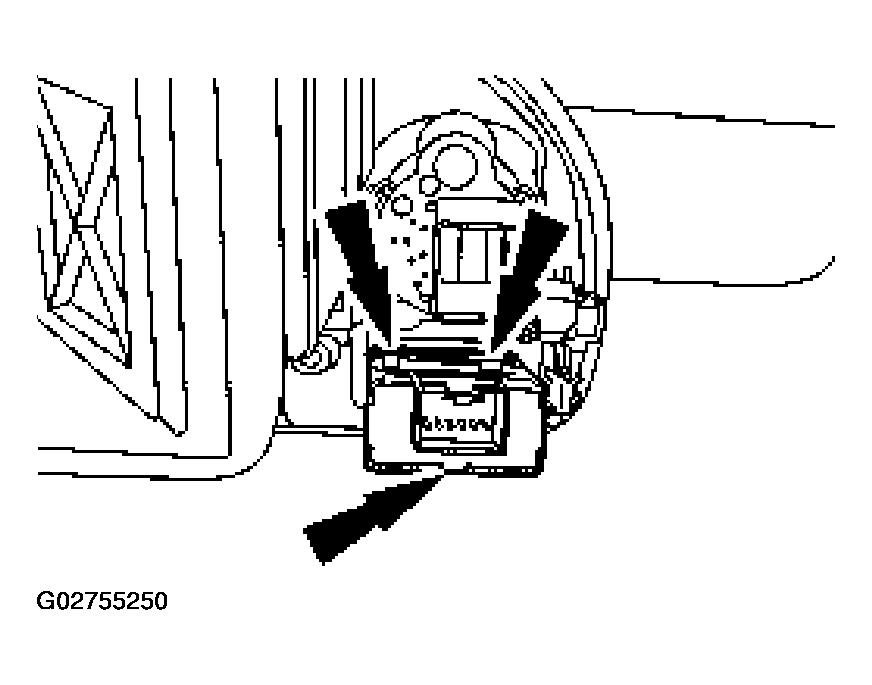

    Fig 3: Removing Instrument Panel Dimmer Switch
    G02755250Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
