Removal and Installation

  1. Remove the instrument cluster. For additional information, refer to INSTRUMENT CLUSTER .
  2. Remove the illumination bulb(s).

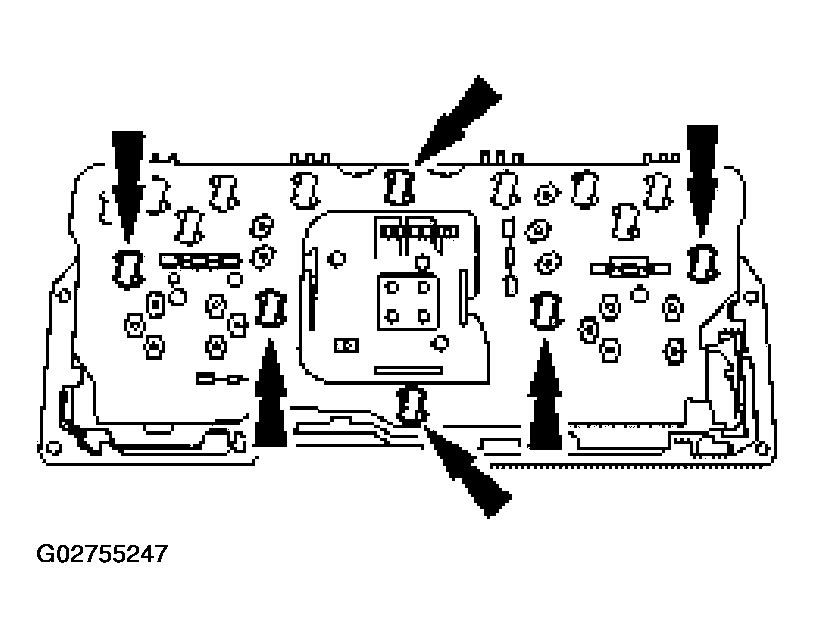

    Fig 1: Removing Illumination Bulbs
    G02755247Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
