Pinpoint Test G: The Message Center Illumination Source Is Inoperative - With Moonroof

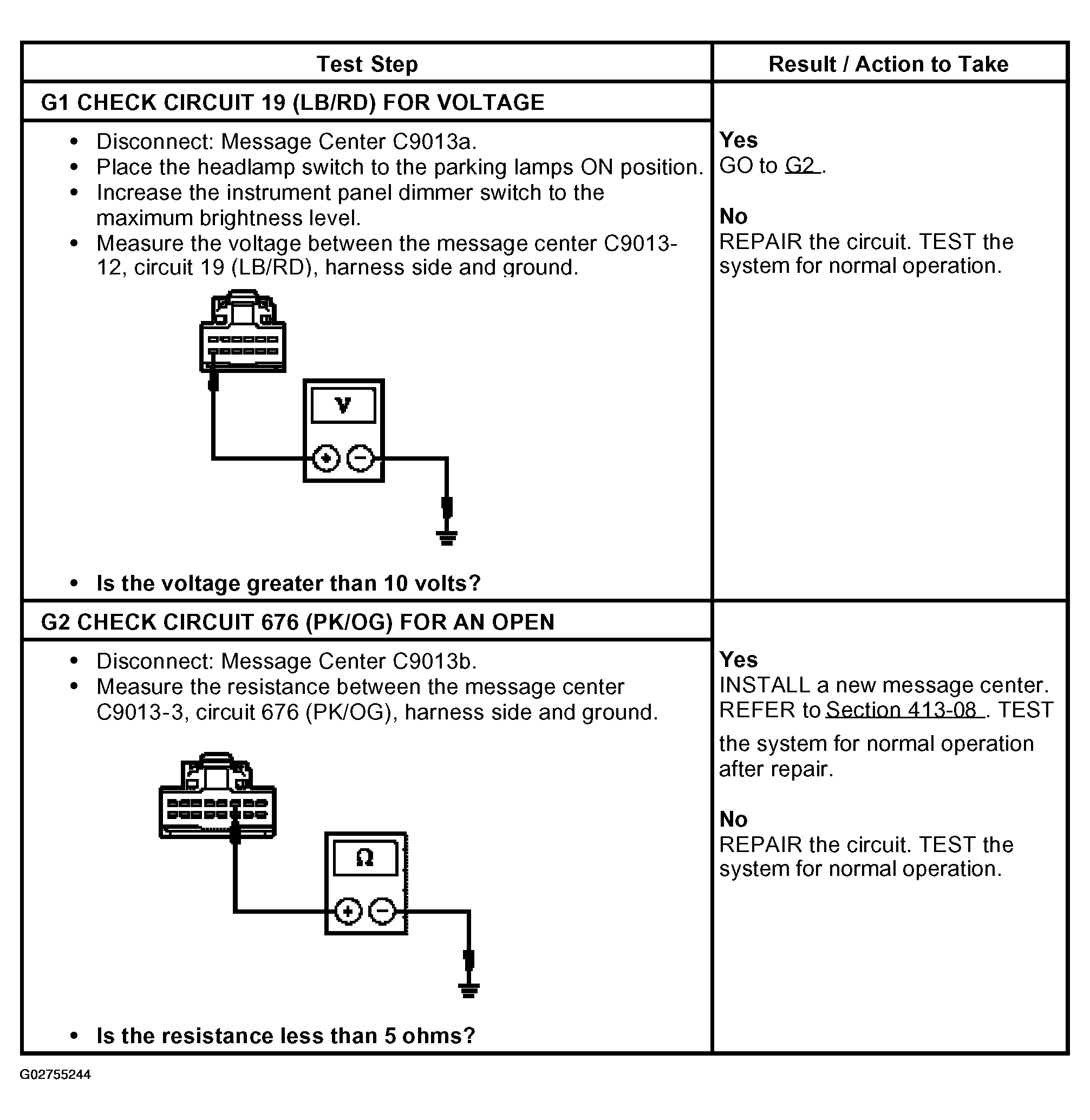

Fig 1: Pinpoint Test G: Message Center Illumination Source Is Inoperative - With Moonroof Step (G1 - G2)
G02755244Courtesy of FORD MOTOR CO.
