Pinpoint Test F: A Single Illumination Source Is Inoperative

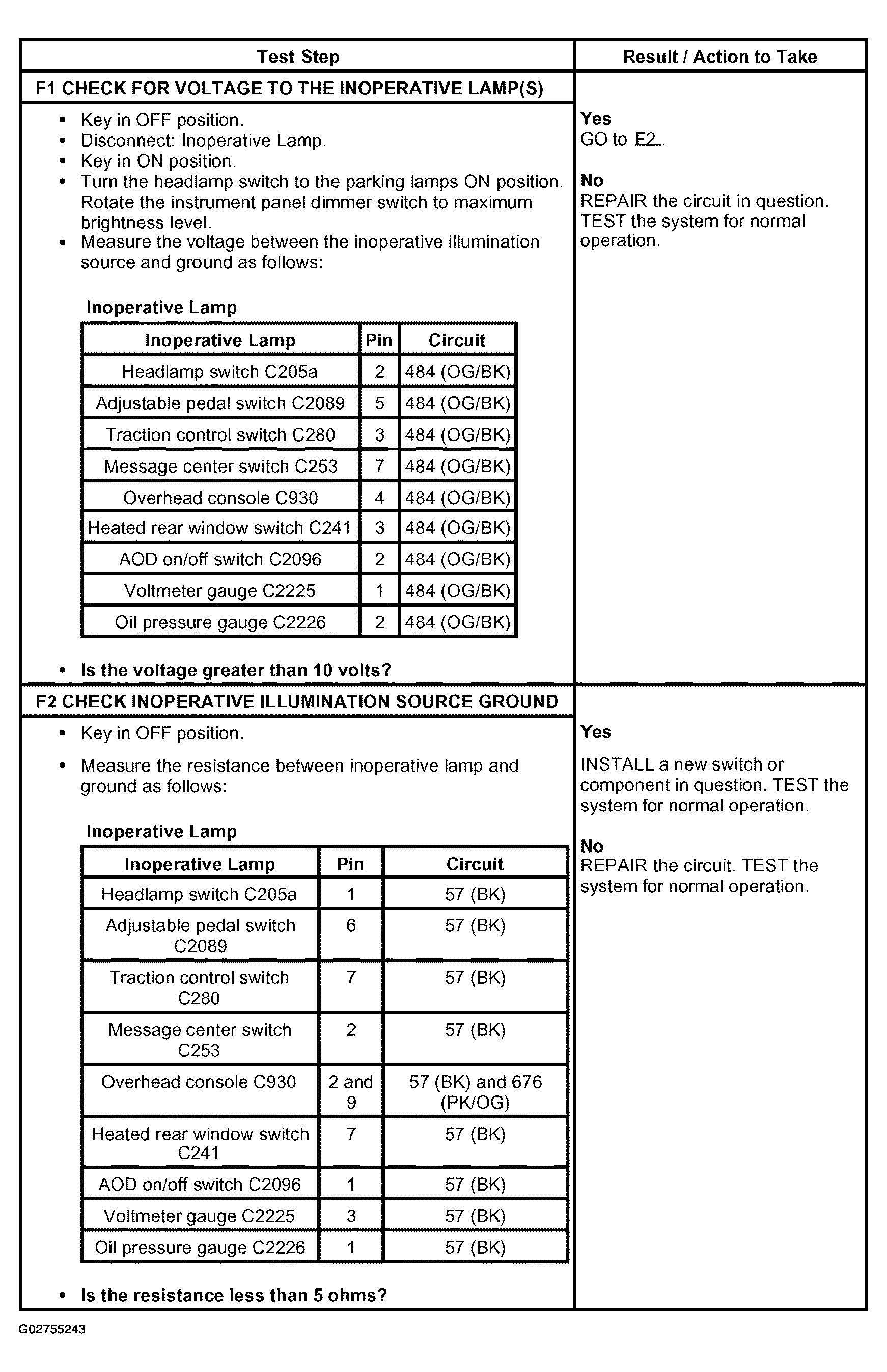

Fig 1: Pinpoint Test F: A Single Illumination Source Is Inoperative Step (F1 - F2)

G02755243

Courtesy of FORD MOTOR CO.
