Pinpoint Test E: The Steering Wheel Control Switch Illumination Is Inoperative

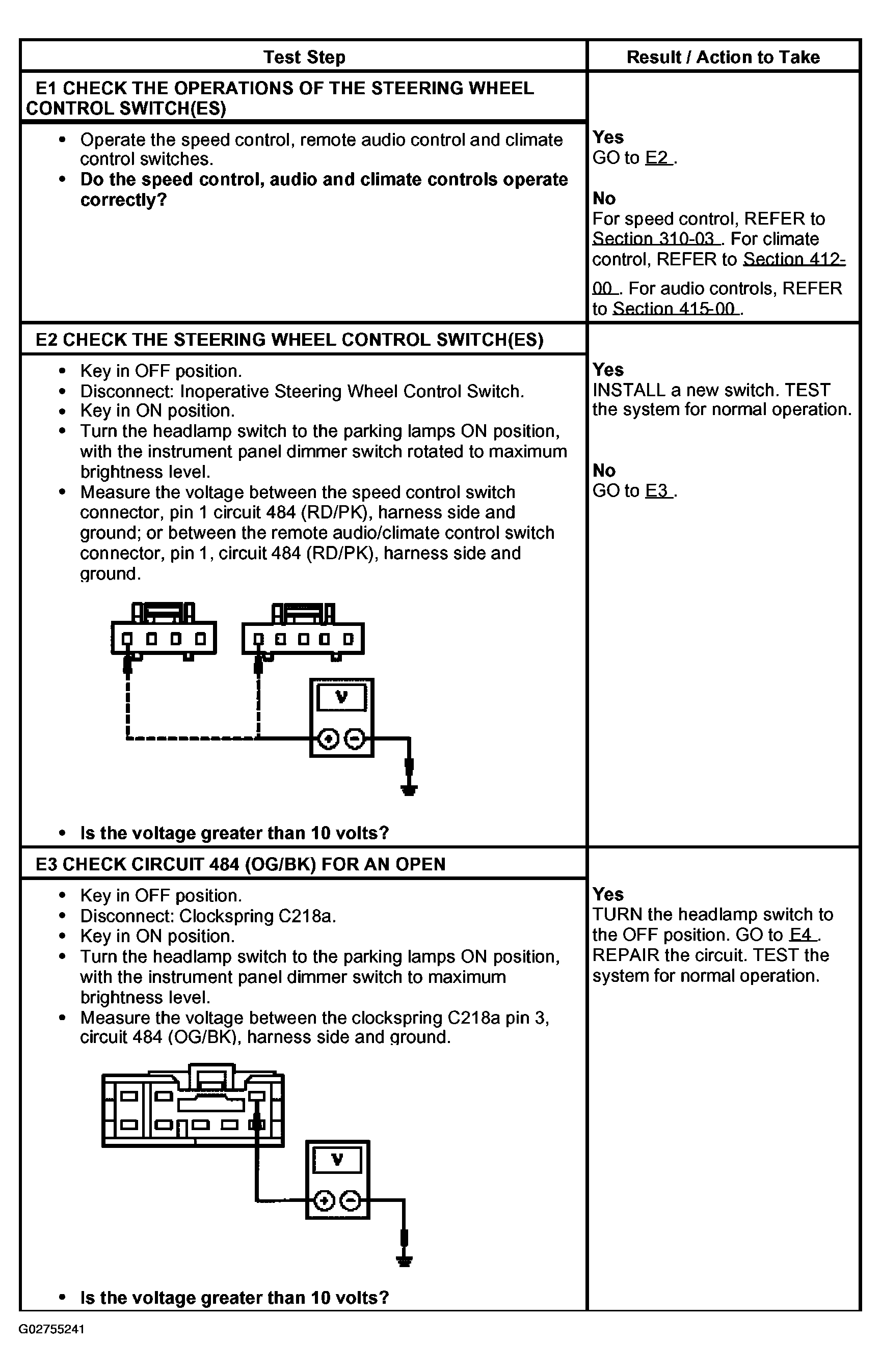

Fig 1: Pinpoint Test E: Steering Wheel Control Switch Illumination Is Inoperative Step (E1 - E3)
G02755241Courtesy of FORD MOTOR CO.

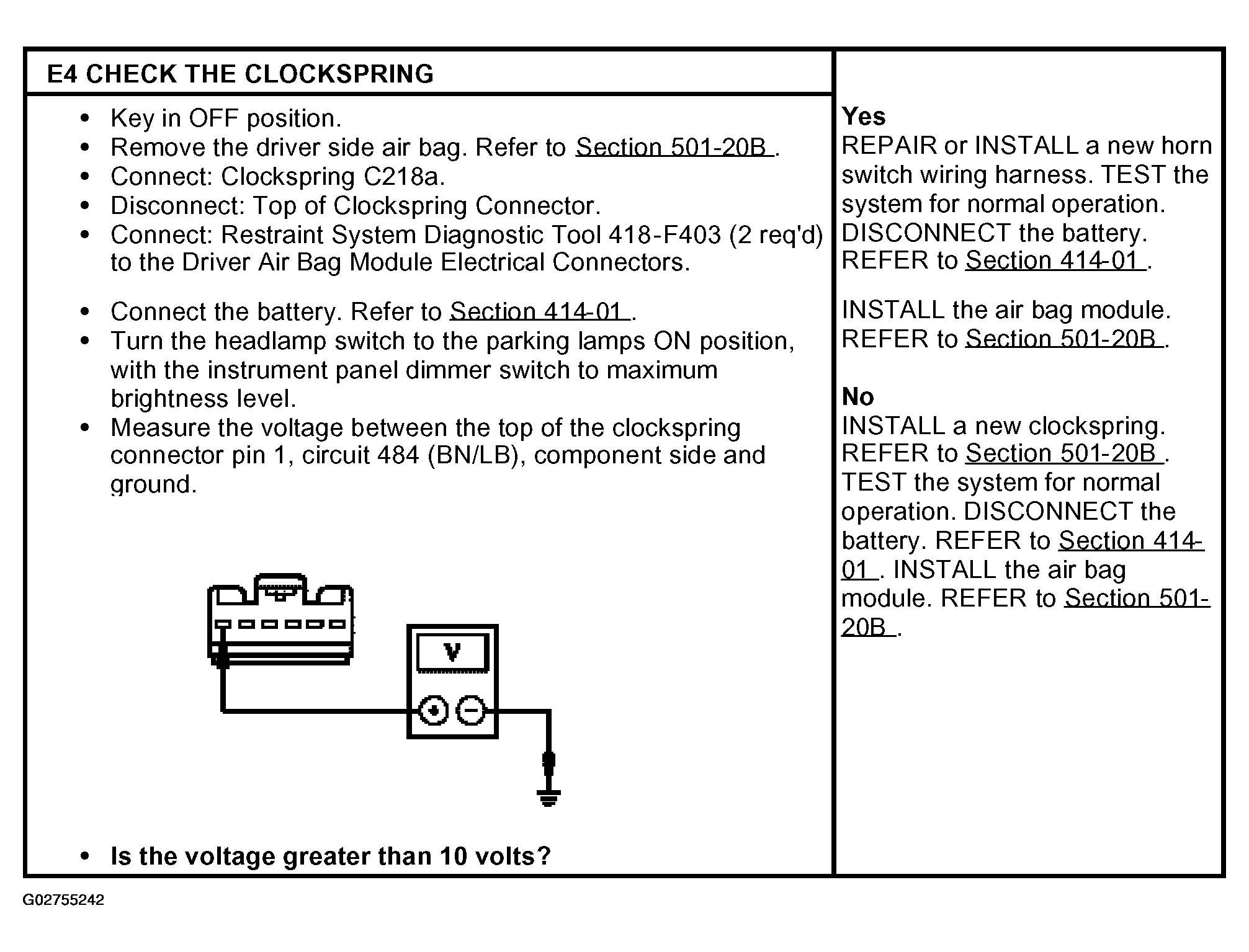

Fig 2: Pinpoint Test E: Steering Wheel Control Switch Illumination Is Inoperative Step (E4)
G02755242Courtesy of FORD MOTOR CO.
