Pinpoint Test D: The Audio System Illumination Is Inoperative

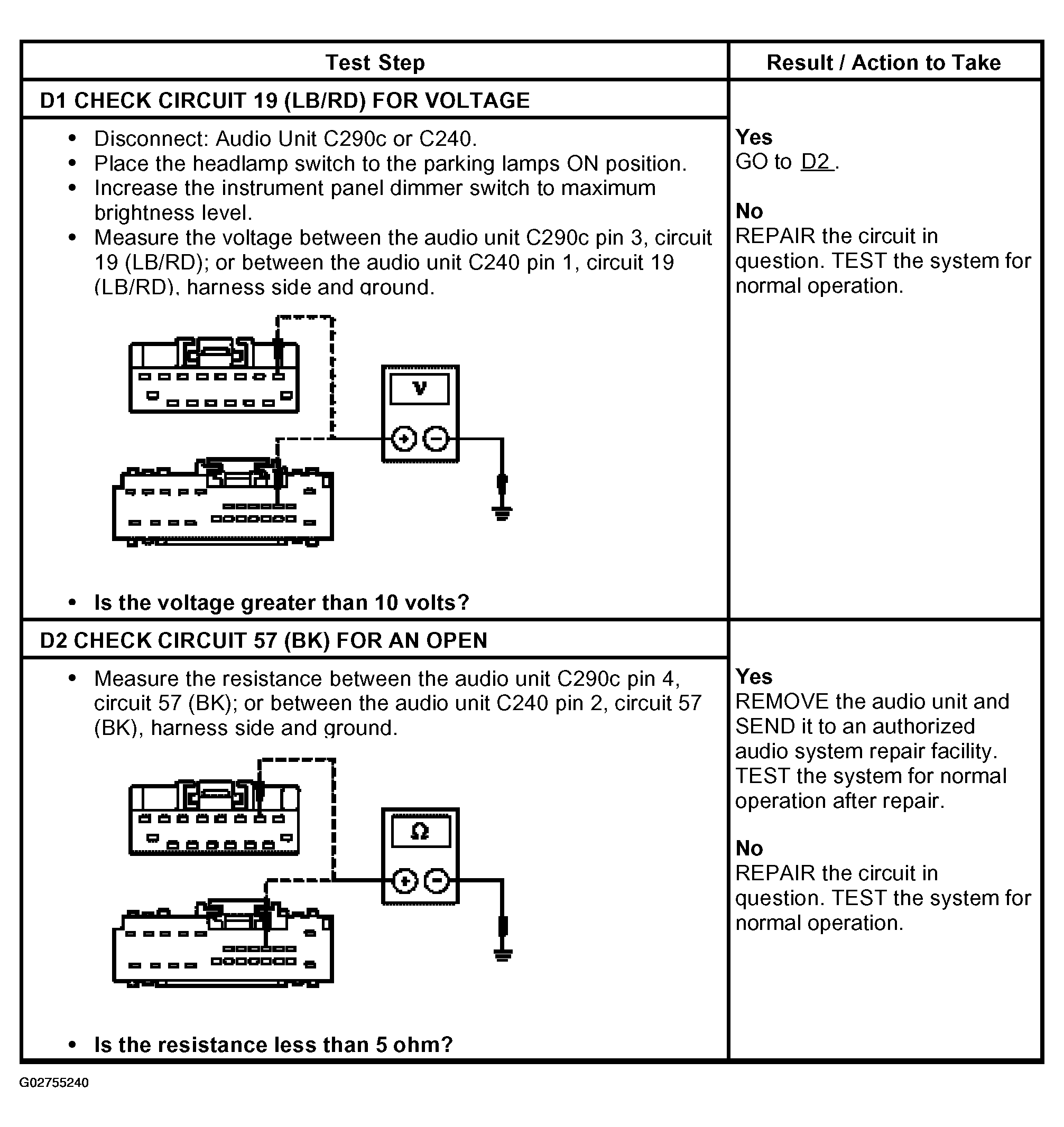

Fig 1: Pinpoint Test D: Audio System Illumination Is Inoperative Step (D1 - D2)

G02755240

Courtesy of FORD MOTOR CO.
