Pinpoint Test C: The Climate Control Illumination Is Inoperative

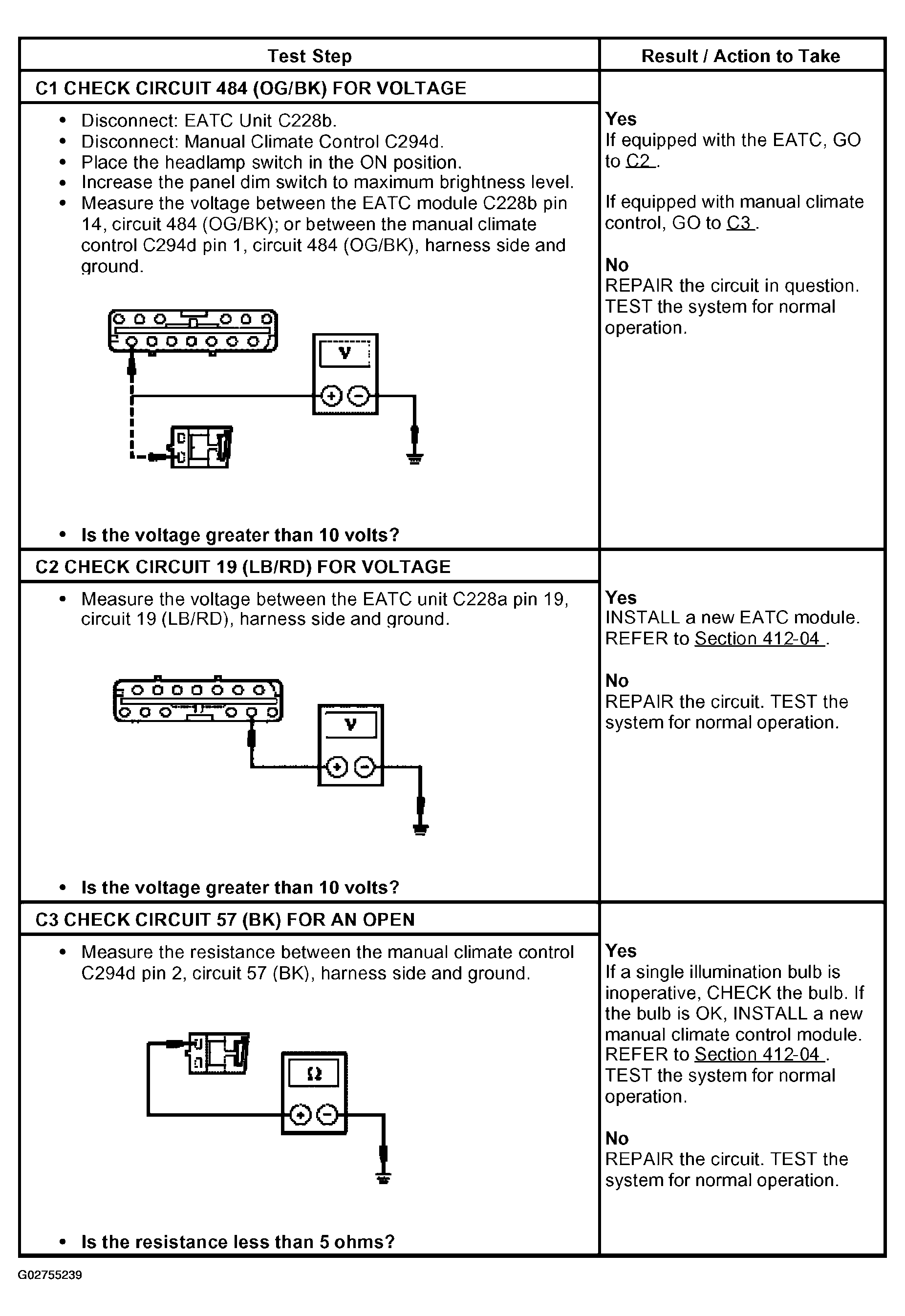

Fig 1: Pinpoint Test C: Climate Control Illumination Is Inoperative Step (C1 - C3)

G02755239

Courtesy of FORD MOTOR CO.
