Pinpoint Test B: The Instrument Cluster Illumination Is Inoperative

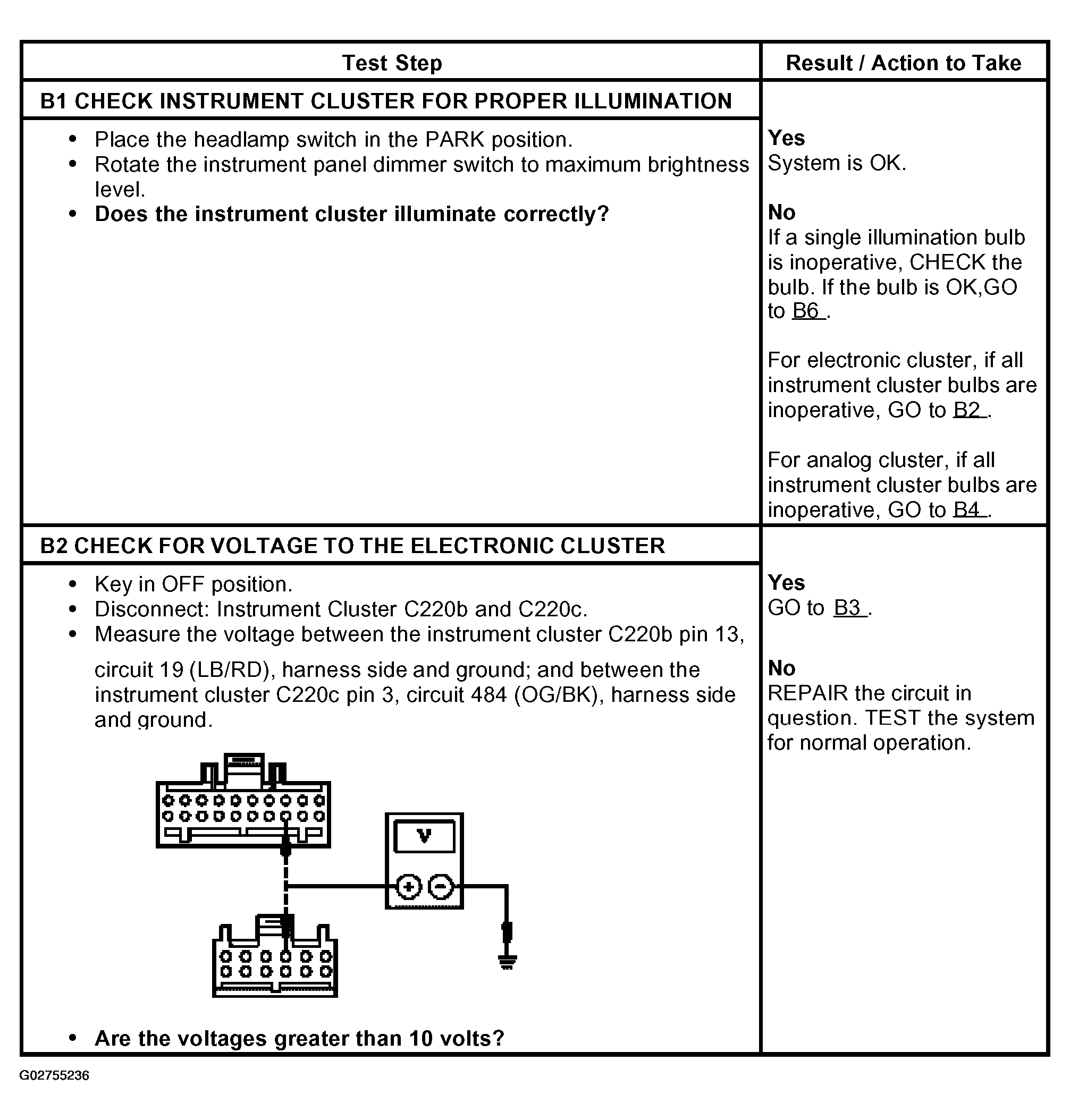

Fig 1: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative Step (B1 - B2)
G02755236Courtesy of FORD MOTOR CO.

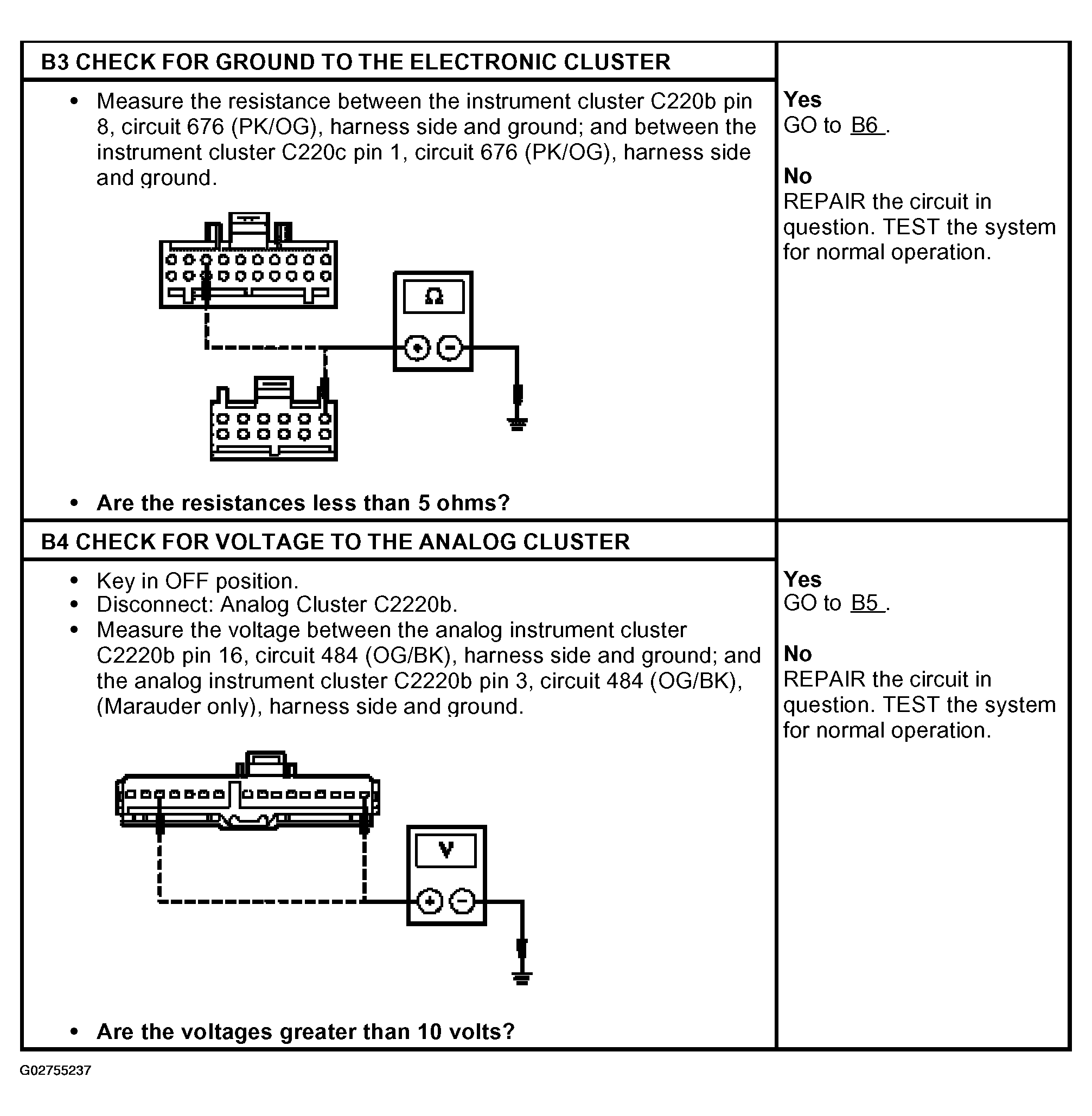

Fig 2: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative Step (B3 - B4)
G02755237Courtesy of FORD MOTOR CO.

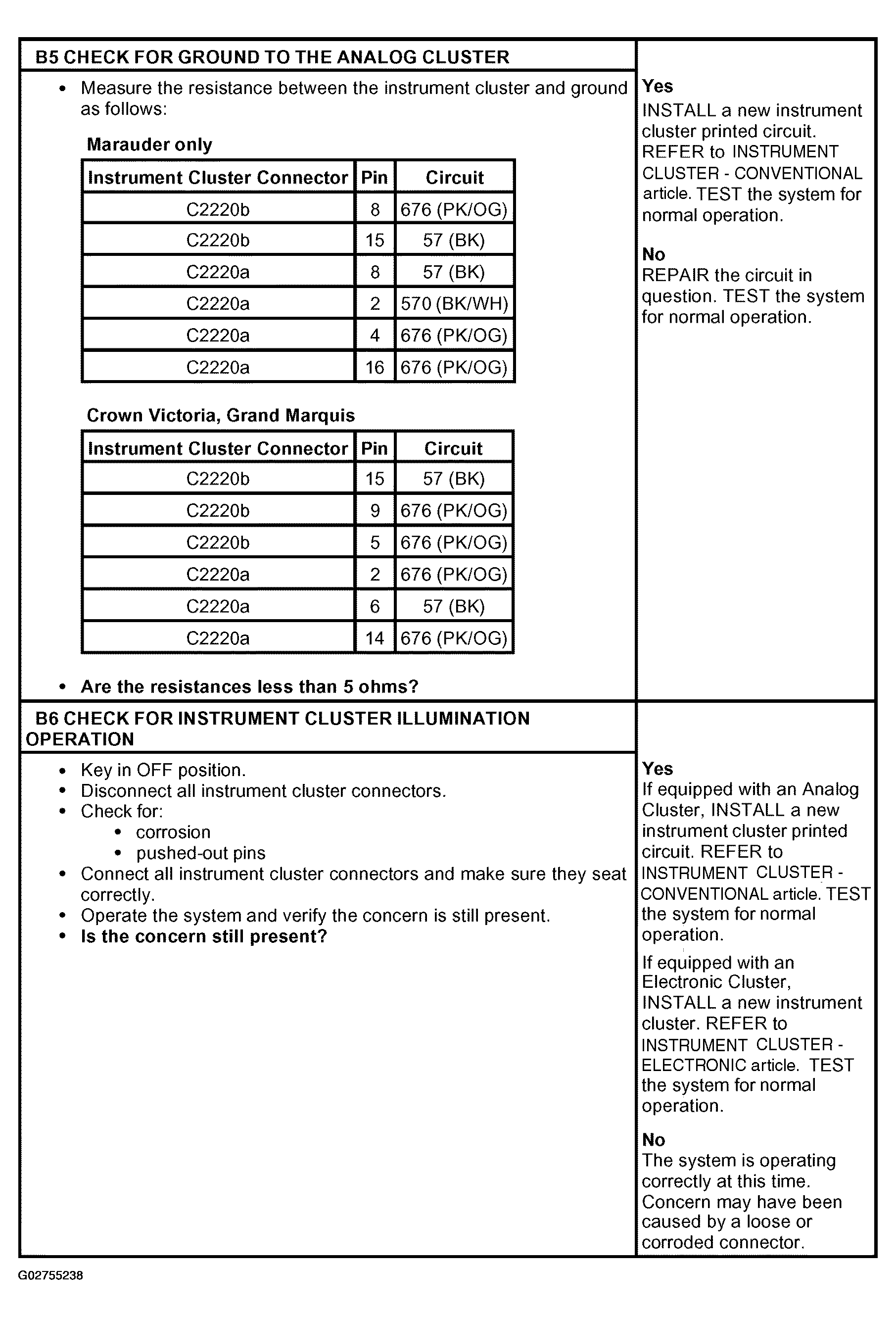

Fig 3: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative Step (B5 - B6)
G02755238Courtesy of FORD MOTOR CO.
