Pinpoint Test A: Pinpoint Test A: The Control Illumination Is Inoperative

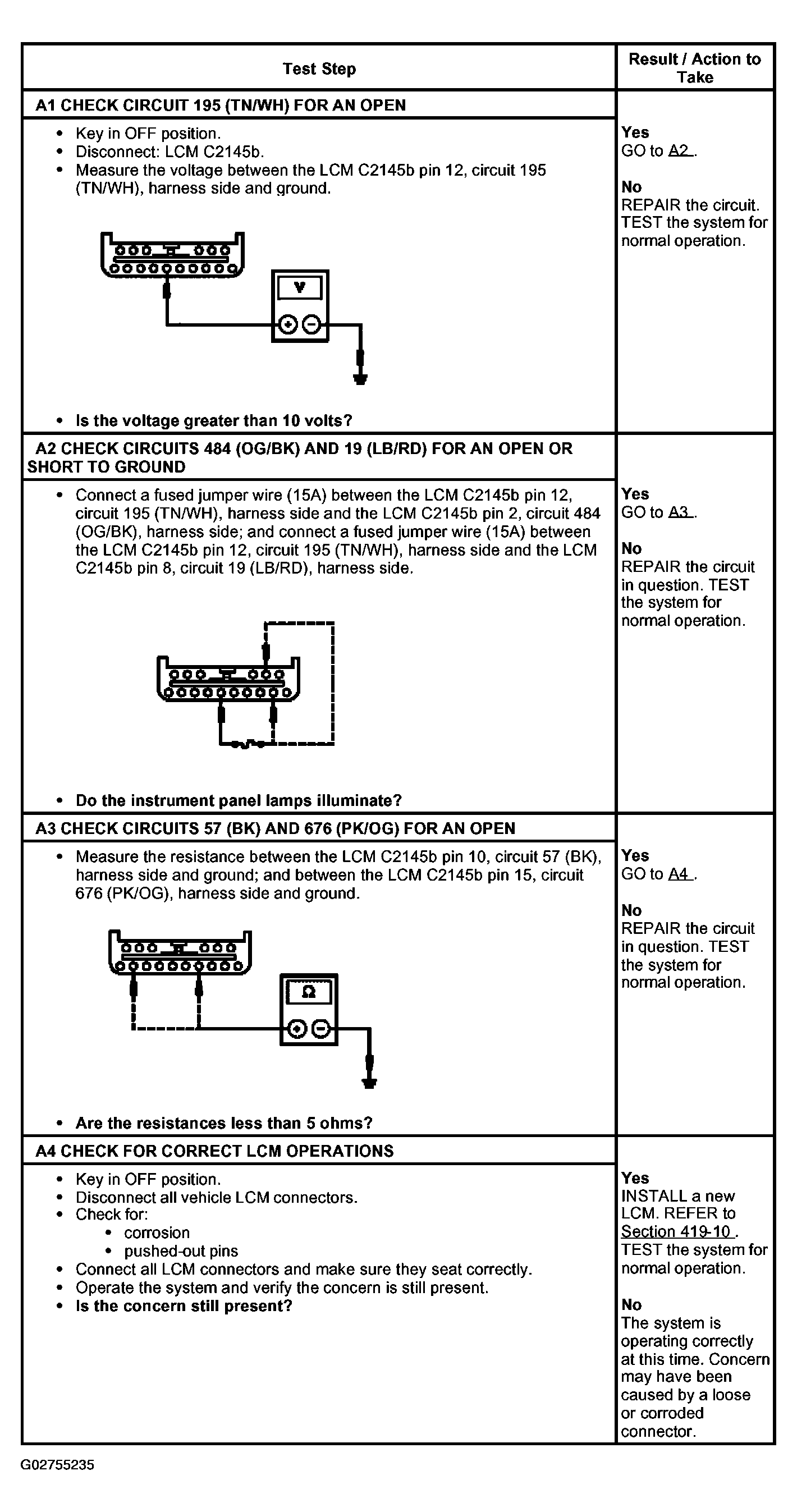

Fig 1: Pinpoint Test A: Control Illumination Is Inoperative Step (A1- A4)

G02755235

Courtesy of FORD MOTOR CO.
