Symptom Chart

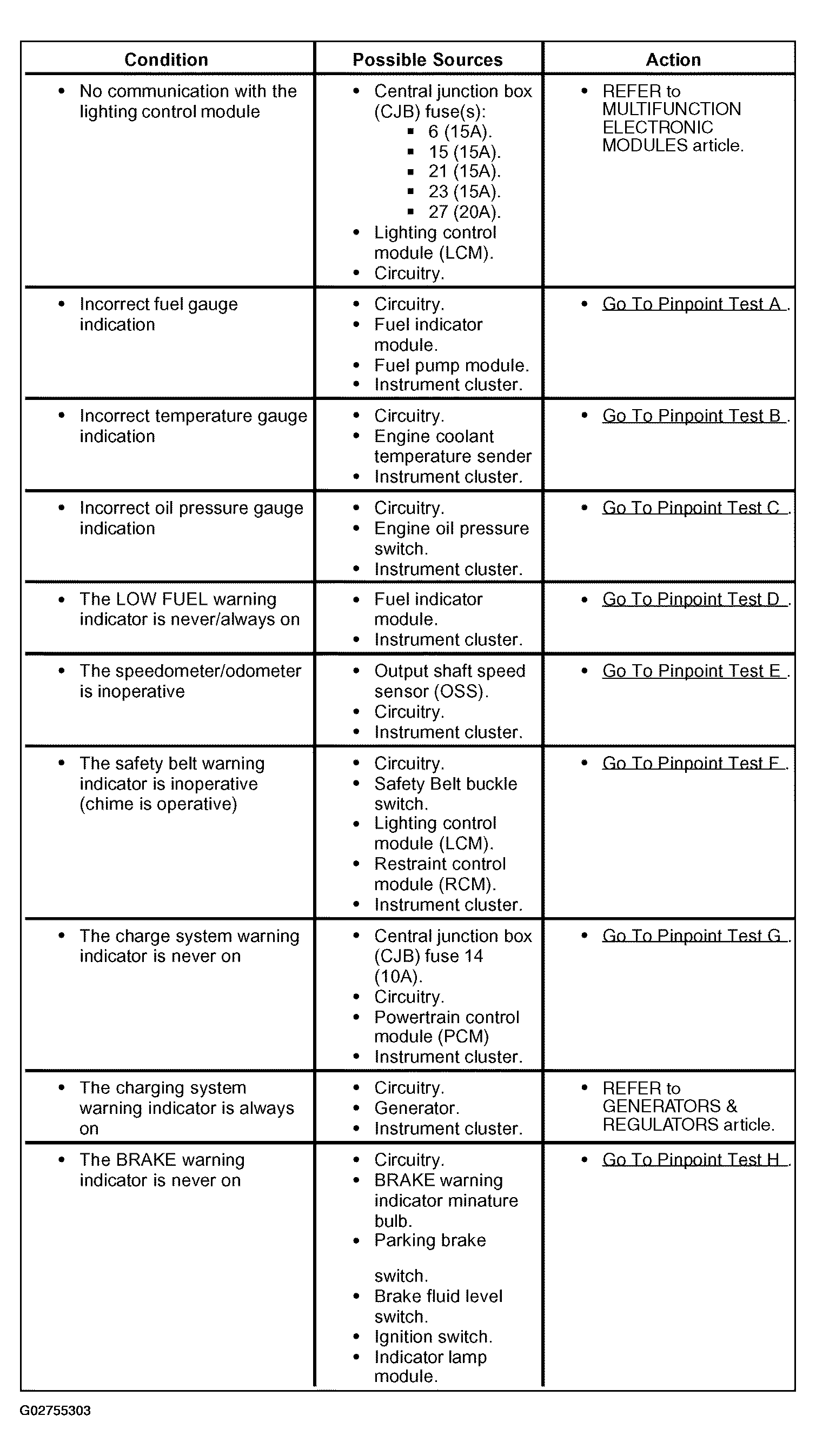

Fig 1: Trouble Symptom Chart (1 Of 3)
G02755303Courtesy of FORD MOTOR CO.

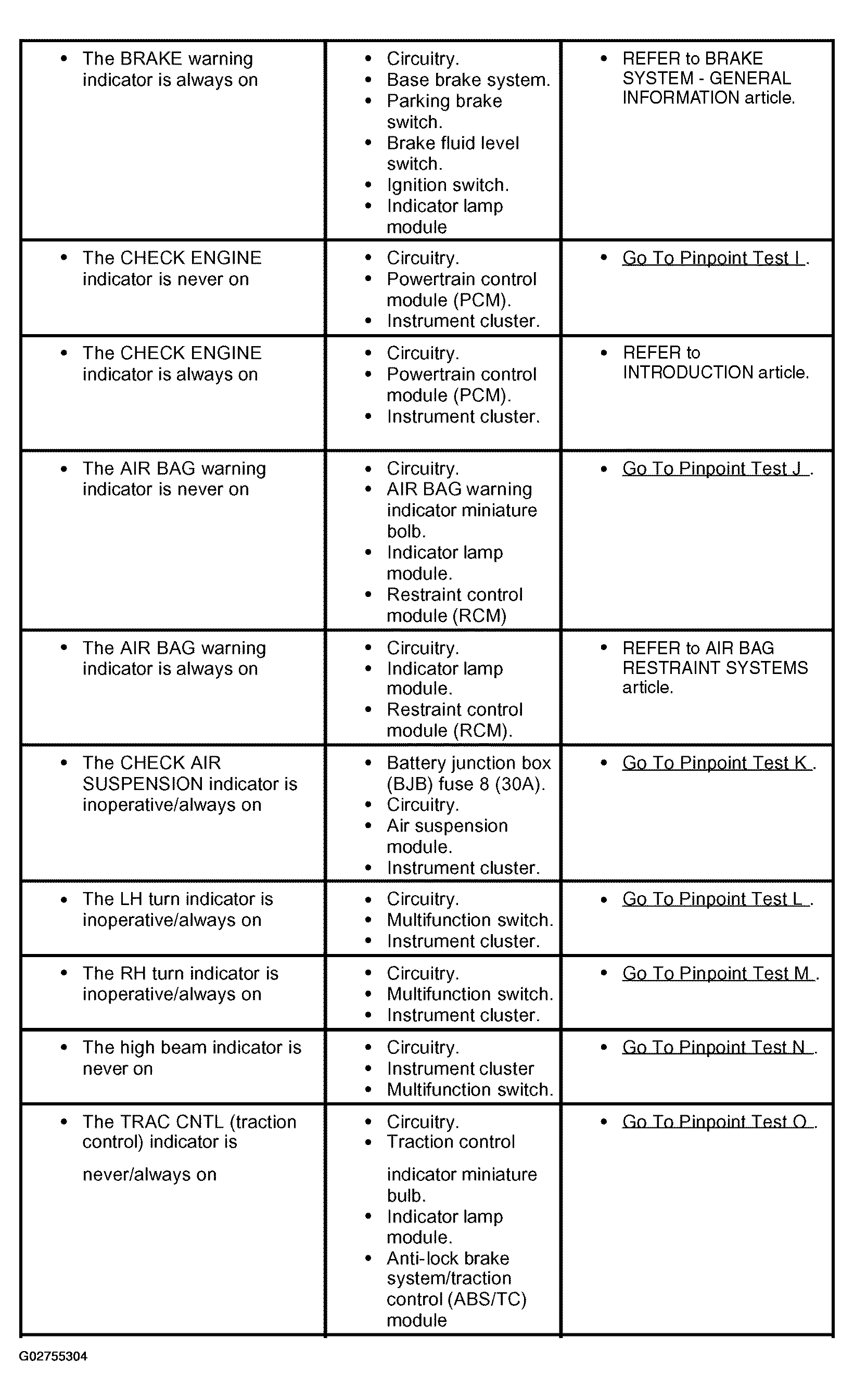

Fig 2: Trouble Symptom Chart (2 Of 3)
G02755304Courtesy of FORD MOTOR CO.

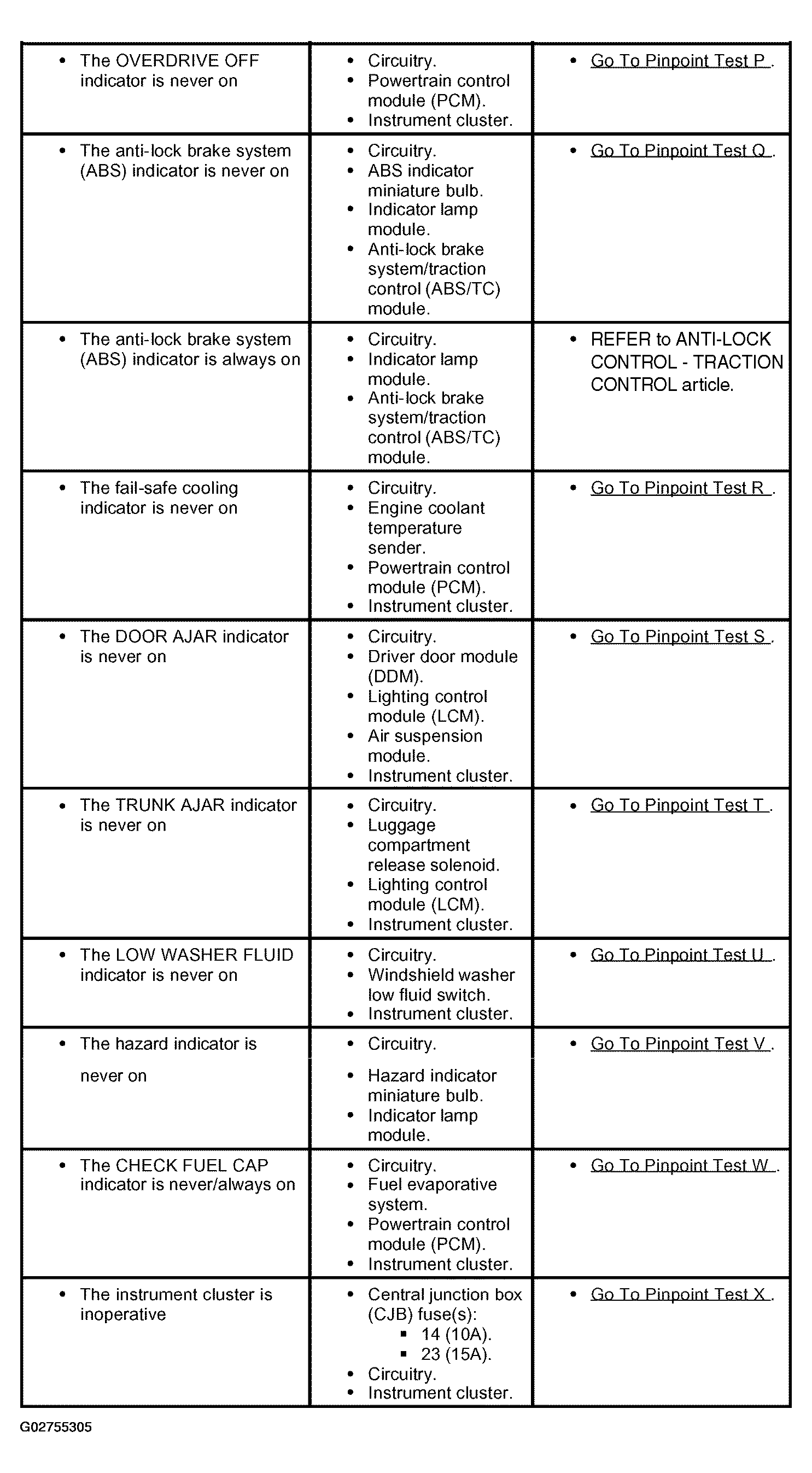

Fig 3: Trouble Symptom Chart (3 Of 3)
G02755305Courtesy of FORD MOTOR CO.
