Pinpoint Test X: The Instrument Cluster Is Inoperative

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

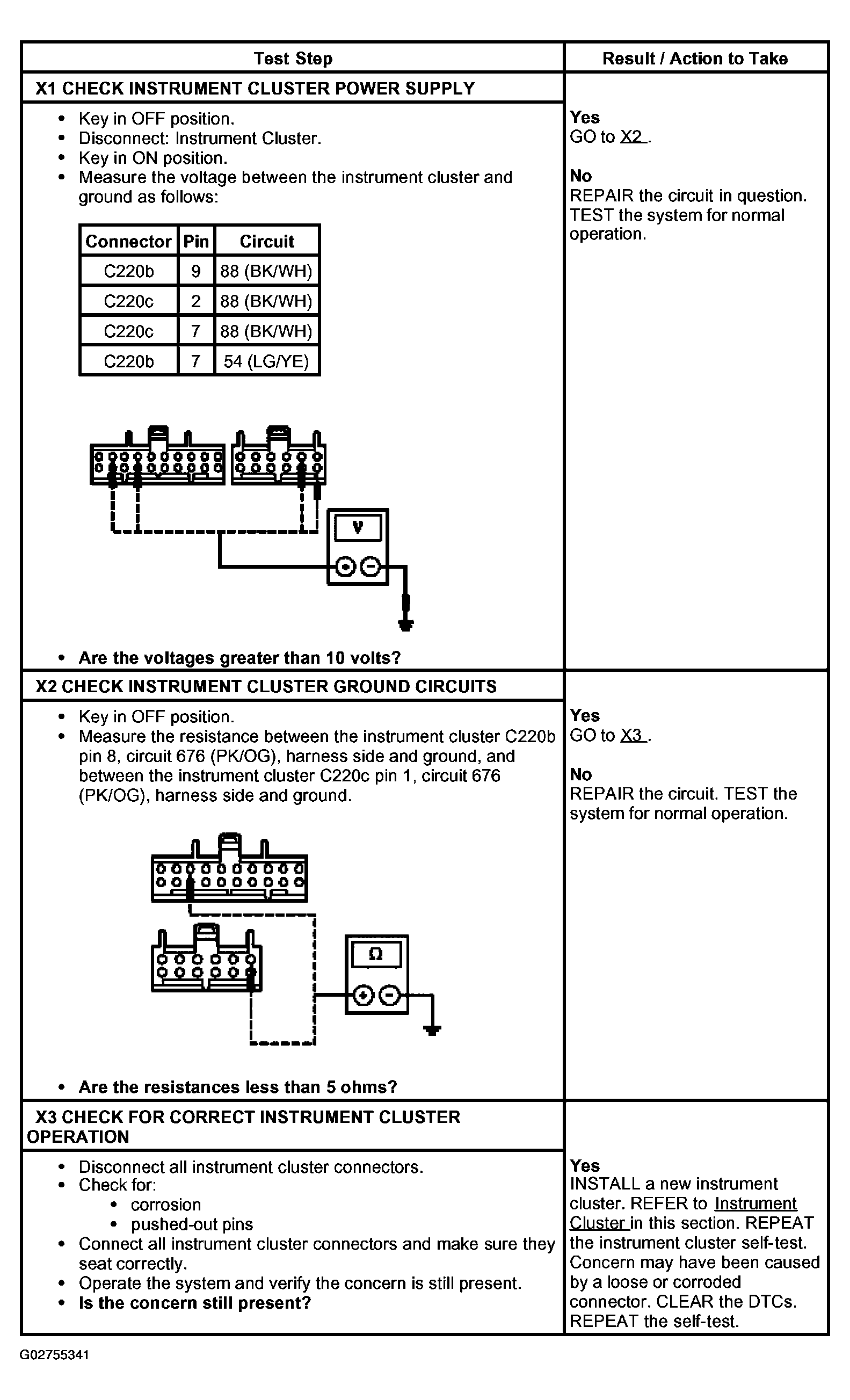

Fig 1: Pinpoint Test X: Instrument Cluster Is Inoperative Step (X1-X3)
G02755341Courtesy of FORD MOTOR CO.
