Pinpoint Test W: The Check Fuel Cap Indicator Is Never/Always On

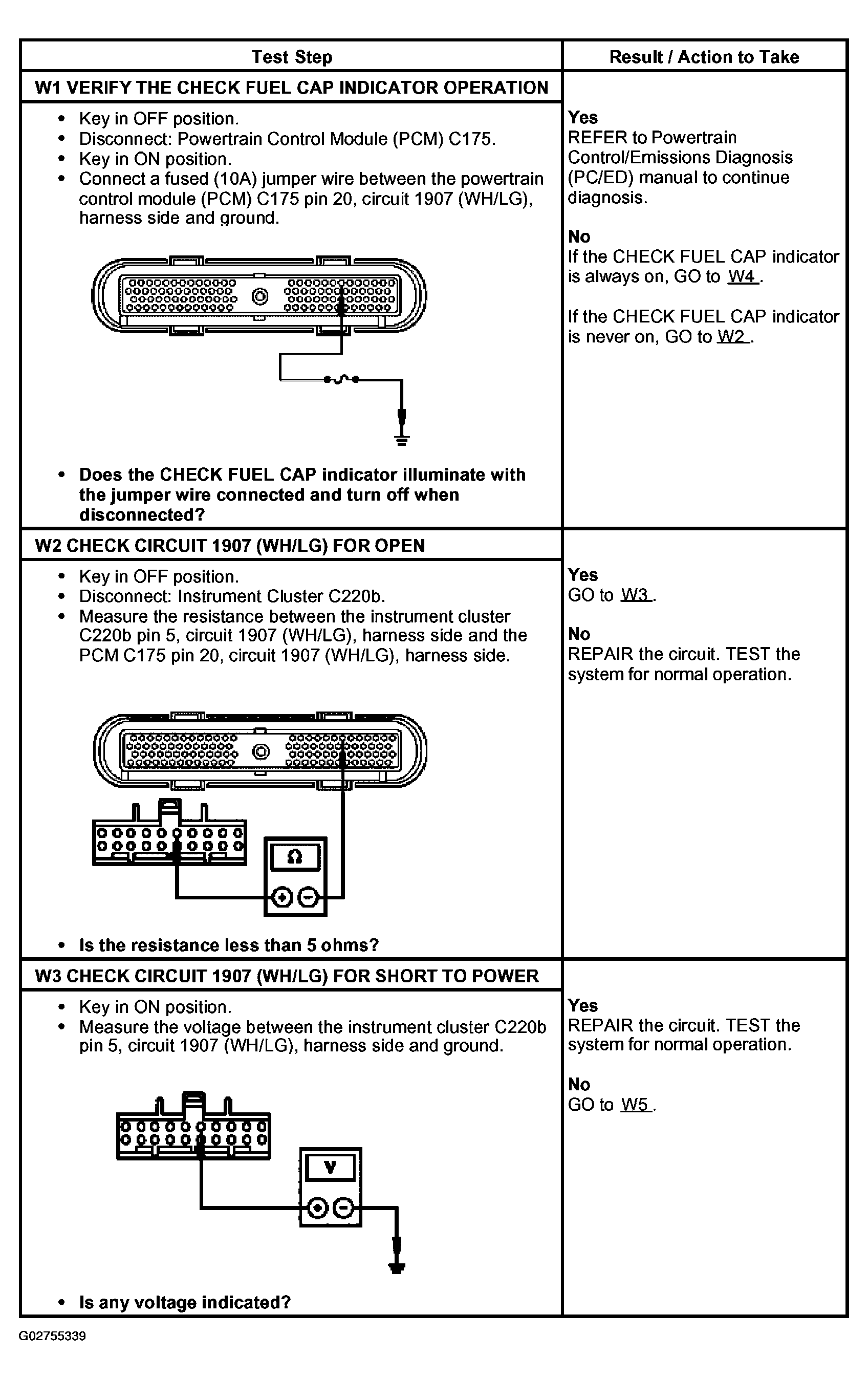

Fig 1: Pinpoint Test W: Check Fuel Cap Indicator Is Never/Always On Step (W1-W3)
G02755339Courtesy of FORD MOTOR CO.

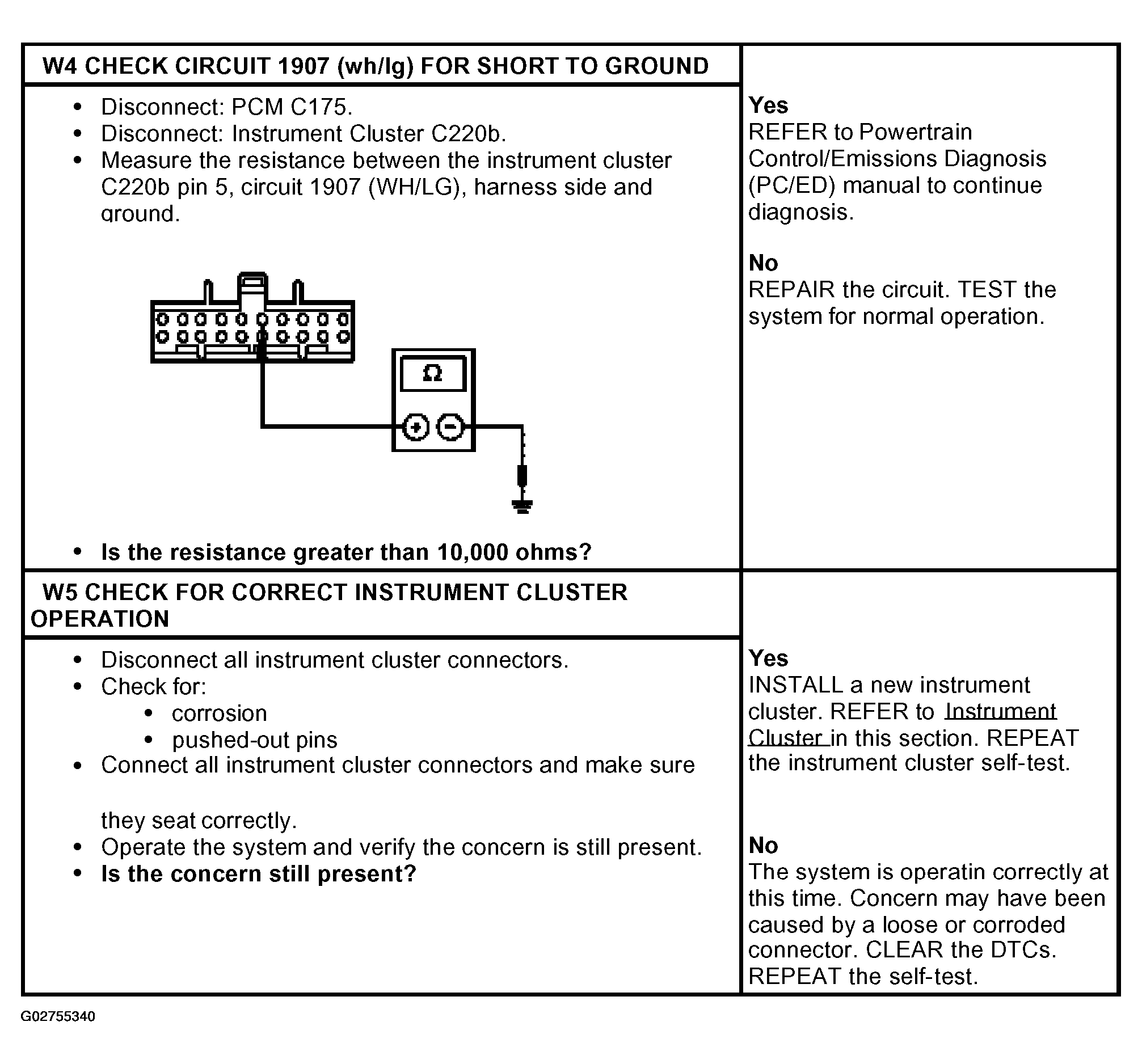

Fig 2: Pinpoint Test W: Check Fuel Cap Indicator Is Never/Always On Step (W4-W5)
G02755340Courtesy of FORD MOTOR CO.
